HD Quick-Connect System - Duo Bundle for 35HP to 130HP Tractors

In this review the HD Quick-Connect System Duo Bundle is evaluated for operators who need a faster, safer way to hook heavy-duty PTO implements. The bottom line: this system is for tractors with a rear 6-spline 540 RPM PTO and for operators running heavy-duty mowers, shredders, tillers or batwing/flex-wing cutters who want to cut hookup time and reduce frustration. Installation is straightforward and the visible Open-Plate interface makes attachment point inspection and alignment much easier than a hidden spline connection.

Key Features

• Compatibility: Works with rear 6-spline 540 RPM PTO on tractors from about 35 HP to 130 HP, making it suitable for a broad range of medium to large machines.
• Open-Plate Design: The patented open-plate interface replaces traditional spline-to-driveline hookups so the connection is visible and easier to reach and align.
• Quick Connection: Two interconnecting steel couplers allow implements to be connected or disconnected in seconds without special tools or retaining clips.
• Heavy-Duty Use: Built for demanding applications such as rotary cutters, mowers, shredders and tillers where robustness and reliability matter.

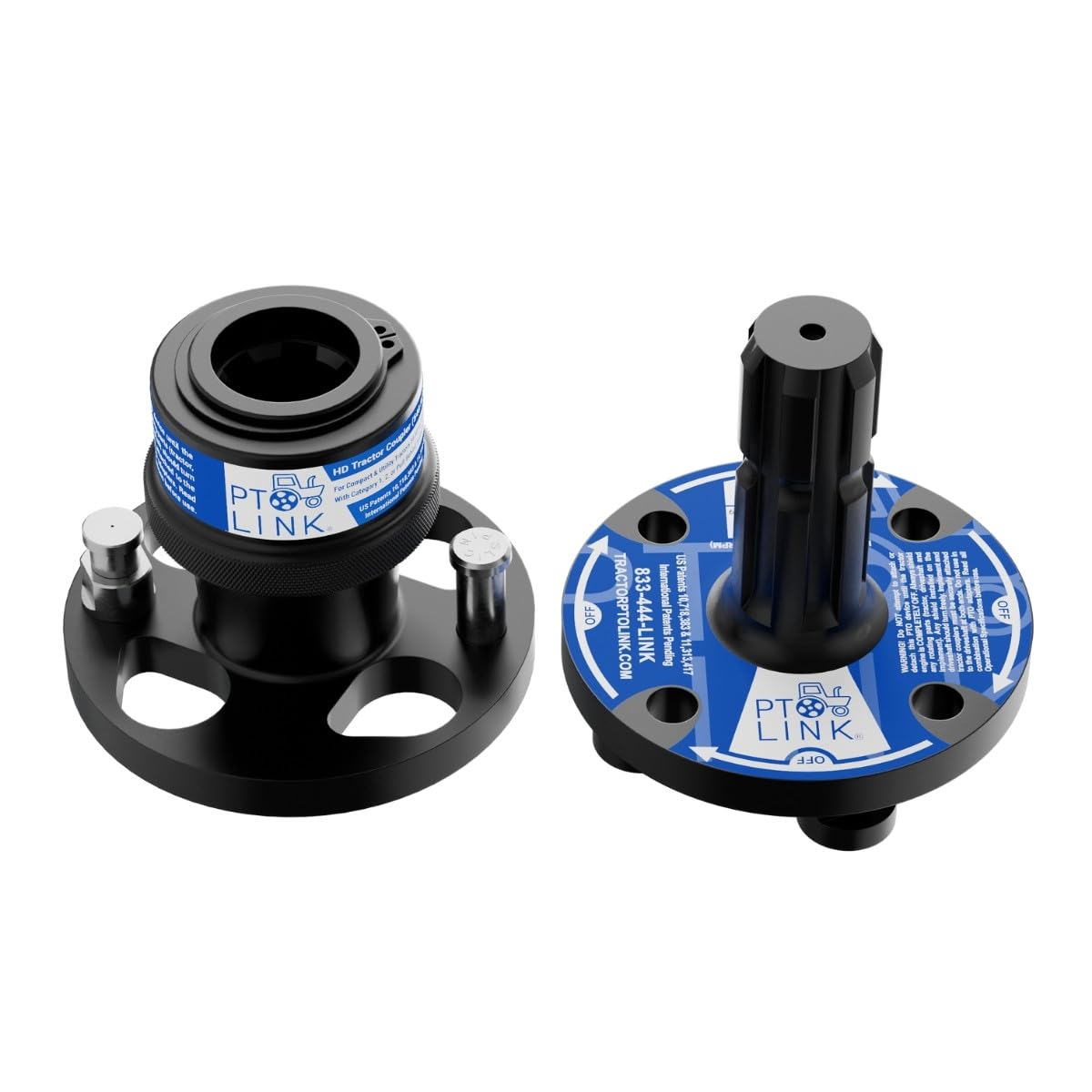

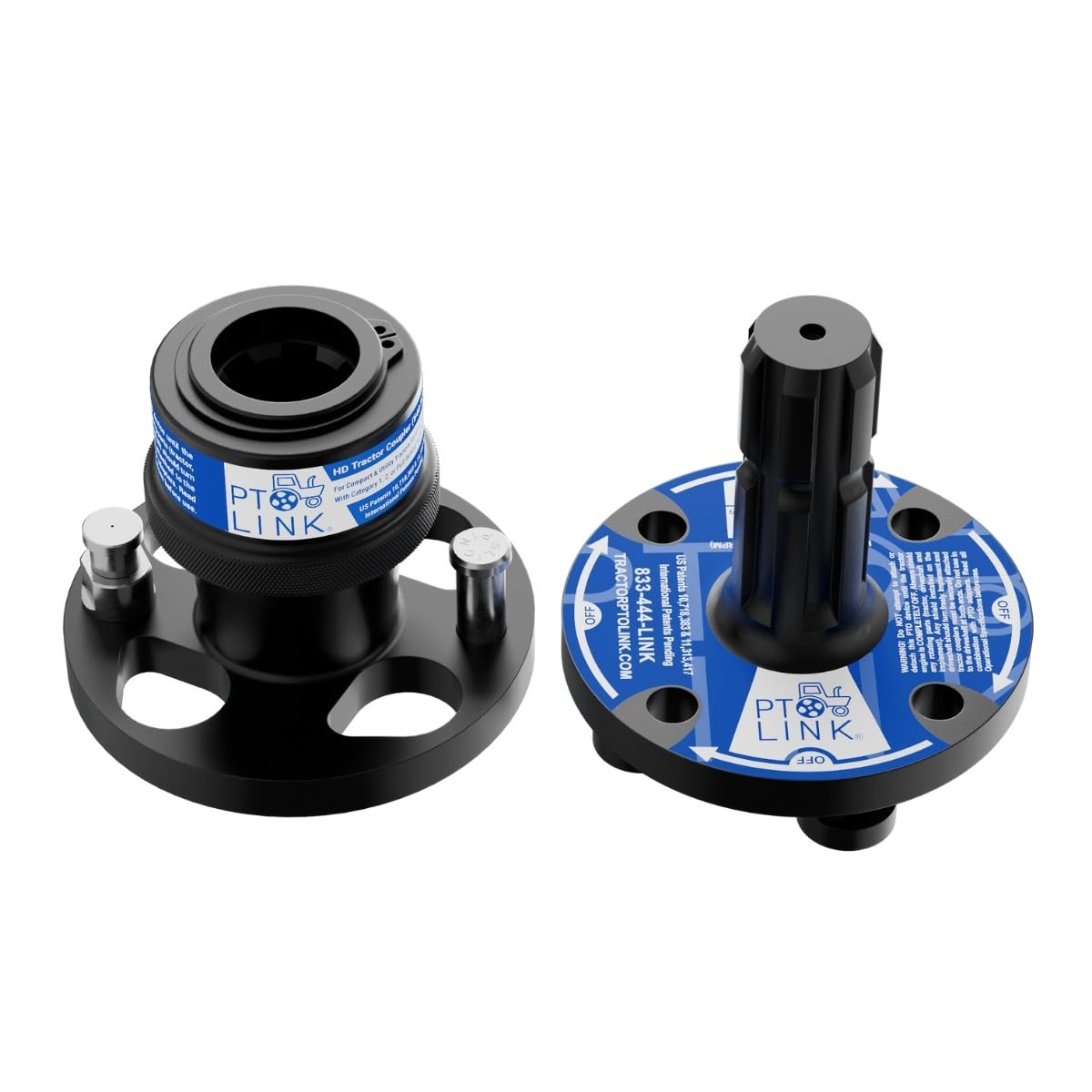

• Complete Duo Kit: Includes one tractor (female) coupler, one implement (male) coupler and the HD safety plunger pin, plus an operator manual and measuring guide.
• Simple Installation: One-step installation for each coupler and no extra hardware like set screws or snap rings required.

Who It's For

The Duo Bundle is aimed at farmers, ranch hands and landscape contractors using tractors with a rear 6-spline 540 RPM PTO in the 35 HP to 130 HP range who frequently switch heavy-duty implements and want to save time and reduce wear on driveline splines. It is especially useful for operators of flex-wing or batwing rotary cutters, shredders and tillers where frequent hook ups are common.

Owners of subcompact tractors or models specifically called out as compatible only with the smaller Compact System should look elsewhere; the HD System is larger and not intended for BX, B or LX Kubota subcompact-style tractors and similar models listed as incompatible in the product reference.

Pros & Cons

Pros

• Speeds up implement changes dramatically, with customers reporting hookup in under a minute.
• Open-Plate design improves visibility and access compared with hidden spline connections.
• Durable steel couplers and a safety plunger pin provide a robust quick-connect for heavy-duty work.
• Includes measuring instructions and a reference video to avoid driveline bottoming out.

Cons

• More expensive than a basic driveline connector, and some buyers note cost as a drawback.
• Adds about 5 in to overall driveline length, so careful pre-use measuring is required to prevent bottoming out.

Specifications

System Type	HD Quick-Connect Duo (Tractor + Implement)
PTO Spline	Rear 6-spline, 540 RPM
Tractor Power Range	Approximately 35 HP to 130 HP engine net
Includes	1 Tractor (Female) Coupler, 1 Implement (Male) Coupler, HD Safety Plunger Pin, Manual
Added Driveline Length	About 5 in when fully installed
Installation	One-step per coupler; no set screws or retaining clips required
Patents	US Patents 10,718,383 & 11,313,417

Our Verdict

The HD Quick-Connect Duo Bundle is a solid choice for operators of medium and large tractors who value fast, reliable implement changes in heavy-duty conditions. It is worth the premium for those who frequently swap PTO-driven attachments because it saves time and reduces wear on splines, but buyers must measure driveline length beforehand and accept the modest added cost and length.

Frequently Asked Questions

Will this fit my tractor?
The system fits rear 6-spline 540 RPM PTO tractors in the 35 HP to 130 HP range; check the compatibility list and use the provided measuring guide before purchase.

Does the kit include everything to use the quick-connect?
Yes, the Duo includes the tractor and implement couplers plus the HD safety plunger pin, manual and measuring instructions; extras are sold separately.

Will it work with PTO adapters?
The PTO Link is not an adapter and should not be used in combination with PTO adapters to remain compliant with standards.
