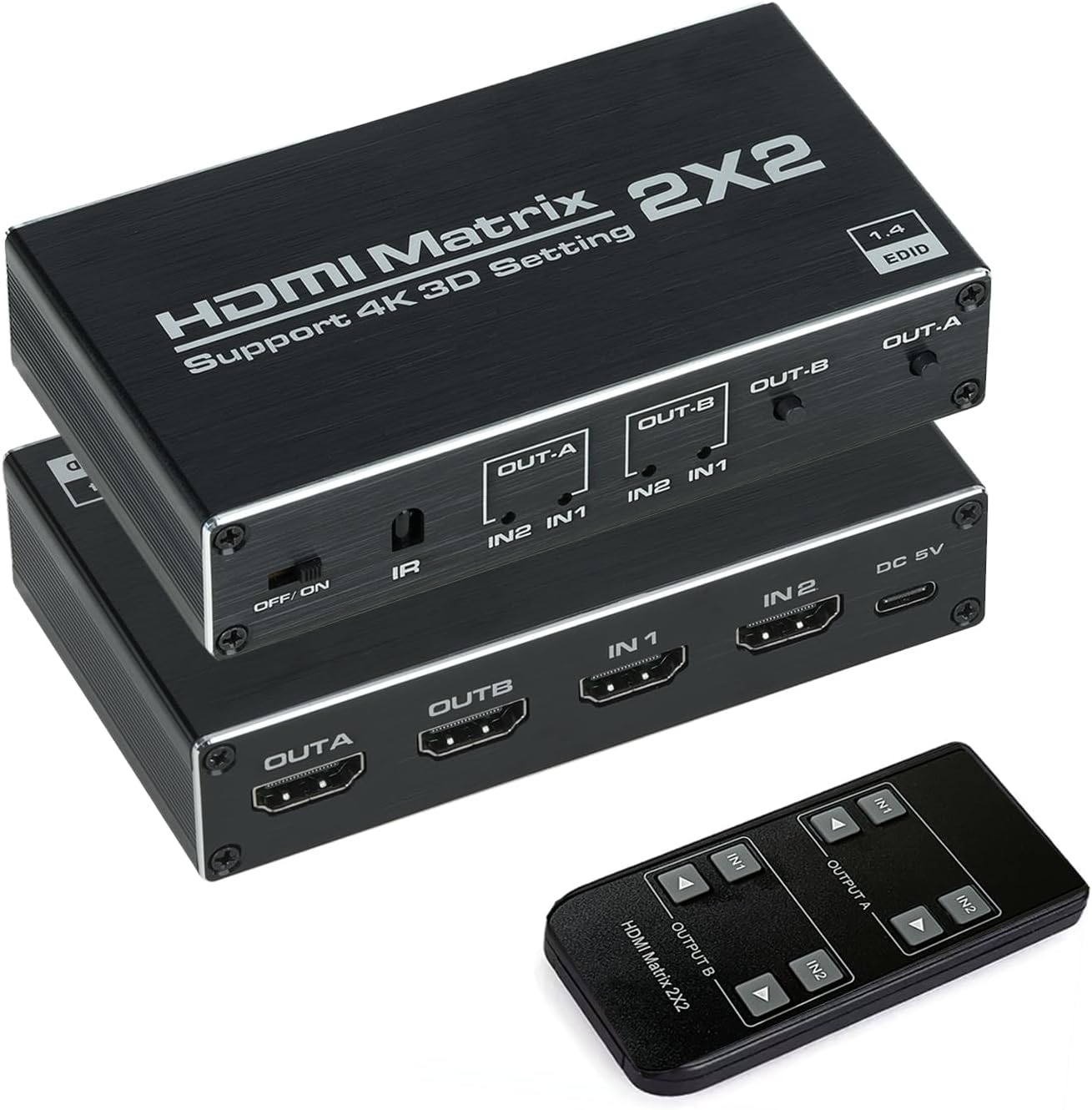

HDMI Matrix 2x2 HDMI Matrix Switch 2 in 2 Out - 4K Split and Switch

In this review the HDMI Matrix 2x2 is evaluated as a compact, no-frills solution for routing two HDMI sources to two displays. It is best for users who need straightforward mirroring or simple switching between two inputs and two outputs without requiring extended desktop modes or the latest HDMI 2.0/HDCP 2.2 features. The single biggest reason to buy is practical: it reliably switches or duplicates 4K signals at compatible settings using a supplied IR remote and LED indicators, making setup and daily use easy for small home theater or meeting-room installs.

Key Features

• 2x2 Matrix routing: Lets two HDMI sources be sent to two displays independently or mirrored, reducing cable swaps when multiple players or PCs are used.
• 4K capable: Supports up to 4K@60Hz with YUV 4:2:0 or 4K@30Hz, so compatible 4K content displays at full resolution within the specified formats.
• IR remote control: The included remote and front-panel buttons change connections quickly and the LED indicators make active ports clear at a glance.
• Wide device compatibility: Works with TVs, monitors, projectors, game consoles and Blu-ray players using standard HDMI connections and common audio formats.
• Plug and play: Simple setup with a DC power adapter and HDMI cables means minimal configuration for typical home or office installs.
• Audio format support: Accepts Dolby Digital, DTS and related formats for use in home theater setups where passthrough of digital audio is needed.

Who It's For

The HDMI Matrix 2x2 is aimed at homeowners, small offices, classrooms and retail displays that need to switch or mirror two HDMI sources to two screens without complex configuration; it is well suited to setups where users want quick source changes with an IR remote. It is also useful for small meeting rooms and museums where simplicity and reliable signal switching matter more than the latest HDMI protocols.

Users who need extended desktop modes from a PC, support for HDCP 2.2 protected streams, or native HDMI 2.0 bandwidth should look elsewhere. Similarly, integrators requiring advanced EDID management, large scale matrix switching, or higher color subsampling support should consider higher-end models.

Pros & Cons

Pros

• Easy to use with simple plug-and-play setup and a responsive IR remote control.
• Supports modern 4K formats (4K@60Hz YUV 4:2:0 and 4K@30Hz) for compatible displays.
• Compact solution for duplicating or switching two inputs to two displays in small installations.
• Accepts common audio formats like Dolby Digital and DTS for clean audio passthrough.

Cons

• Does not support Extend mode for computers; only mirrors displays which limits PC multitasking use.
• Does not support HDCP 2.2 or HDMI 2.0, so some newer protected 4K content may not pass through.

Specifications

Product type	HDMI Matrix Switch 2x2
Max resolution	4K@60Hz (YUV 4:2:0), 4K@30Hz, 1080P, 3D
HDMI version	HDMI 1.4
HDCP compliance	HDCP 1.4
Data rate	Up to 10.8 Gbps
Controls	IR remote and front-panel buttons with LED indicators
Included in box	Matrix unit, power adapter, IR remote, user manual

Our Verdict

The HDMI Matrix 2x2 is a pragmatic and affordable switch-splitter for users who need reliable mirroring and basic matrix routing of two HDMI sources to two displays. It delivers the convenience of remote switching, supports common 4K formats within HDMI 1.4/HDCP 1.4 limits, and is good value for classrooms, meeting rooms and simple home theater setups where extended PC modes or the newest HDMI protections are not required.

Frequently Asked Questions

Can I use this to extend my laptop desktop?
This unit does not support Extend mode for PCs or laptops; it only mirrors outputs between displays.

Does it support HDCP 2.2 protected 4K content?
No, the matrix is compliant with HDCP 1.4 and does not support HDCP 2.2 or HDMI 2.0 protected streams.

What is included with the unit?
The package contains the HDMI Matrix 2x2, an IR remote, a DC power adapter and a user manual.
