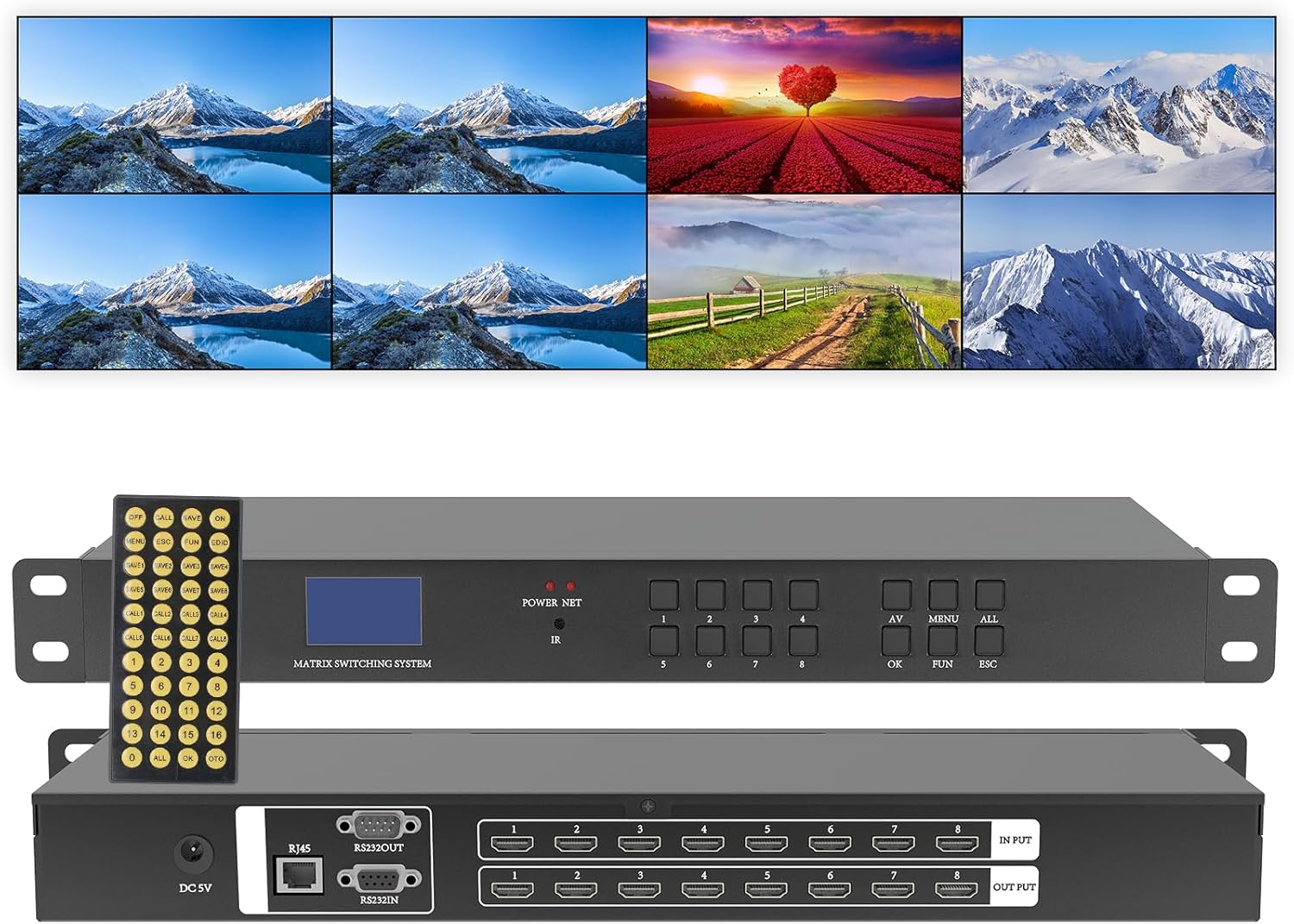

HDMI Matrix Switch 8x8 1080P@60Hz - Web GUI Rack Mount Matrix

In this review of the ICUIXIAN HDMI Matrix Switch 8x8, the bottom line is simple: it is aimed at installations that need reliable, simultaneous routing of multiple HDMI sources to multiple displays with centralized control. The reviewer found it especially useful for small control rooms, conference halls, and multiroom AV where flexible routing, EDID management and web-based control matter. The unit shines when synchronized outputs or independent source assignment are required, and the integrated WEB GUI control makes day-to-day switching straightforward without extra client software.

Key Features

• 8x8 HDMI routing: Sends up to eight HDMI source signals to eight displays and lets outputs show the same signal or different signals independently for flexible presentation setups.
• WEB GUI and multi control: Offers control from computers, mobile phones, tablets, front panel buttons, serial port, IR and LAN so operators can switch using the method that suits them.
• 1080P@60Hz support: Complies with HDMI 1.4a and handles 1080P and 1080P 3D at 60Hz on every channel for smooth high-definition video in live or recorded applications.
• EDID management and scenes: Built-in EDID and scene management lets users store and recall up to 32 presets for one-key calling and fast reconfiguration.
• HDCP decoding and audio: Handles HDCP decoding and supports DTS-HD main audio transmission to preserve audio formats through the matrix.

Who It's For

This HDMI matrix is best for installers, IT teams and AV integrators who need a rack-mountable solution for distributing multiple HDMI sources to multiple displays in locations such as command centers, conference halls, hotels, restaurants and nightclubs. The combination of LAN and serial control plus a web interface makes it suitable where central control and remote switching are required.

It is less appropriate for very small home setups that only need simple splitting or for projects that require native 4K60 or the latest HDMI 2.0/2.1 features, since the unit is specified around HDMI 1.4a and 1080P/3D at 60Hz.

Pros & Cons

Pros

• Flexible routing: true 8-input to 8-output distribution with synchronous or independent mapping.
• Multiple control options: front panel, IR, RS-232 and web GUI mean easy integration with control systems.
• Scene and EDID management: store up to 32 presets for fast recall and consistent device handshakes.

Cons

• Limited to HDMI 1.4a/1080P capabilities, so it does not support native 4K60 HDMI 2.0 features.

Specifications

Product type	8-input 8-output HDMI matrix switch
Resolution supported	1080P and 1080P 3D at 60Hz
HDMI standard	HDMI 1.4a
Control methods	WEB GUI, front panel buttons, RS-232, IR, LAN
EDID and scenes	Built-in EDID; supports 32 scene presets
HDCP	All inputs HDCP decoding
Audio	DTS-HD main audio transmission

Our Verdict

The ICUIXIAN HDMI Matrix Switch 8x8 is a practical, rack-mountable choice for commercial and advanced residential AV systems that need dependable multiroom or multiscreen routing with centralized control. Its WEB GUI and multiple control ports make integration and daily operation straightforward, and the EDID/scene features save time during setup. Choose this unit when 1080P distribution and flexible control are the priority, but look elsewhere if you require native 4K60 support.

Frequently Asked Questions

Can the unit be controlled from a phone?
Yes. The matrix supports WEB page login control accessible from mobile phones and tablets without client software.

How many presets can be saved?
The device supports setting and recalling up to 32 scenes for one-key switching.

Does it support HDCP?
Yes. All inputs are HDCP decoding compatible to maintain content protection compliance.
