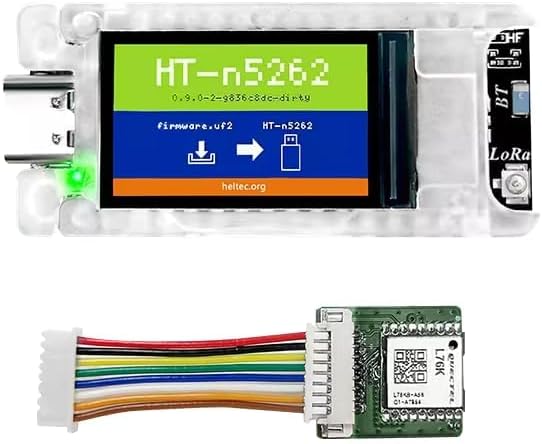

Heltec Mesh Node T114 V2 Meshtastic Tracker - LoRa + BLE Dev Board

In this review of the Heltec Mesh Node T114 V2, the verdict is straightforward: this board is best for developers and hobbyists who need a low power, long-range LoRa tracker with Bluetooth and flexible power options. The single biggest reason to buy is its combination of an nRF52840 MCU for BLE and an SX1262 LoRa radio, which together enable both local BLE connectivity and long-distance mesh or LoRaWAN links while keeping power draw to a minimum.

Key Features

• MCU and Connectivity: The nRF52840 provides native Bluetooth 5.0 support, enabling local configuration and companion apps while the SX1262 handles long-range LoRa communications up to 902-928MHz.
• Optional Display: The onboard 1.14 in TFT display (135 x 240, 262k colors) makes status, messages, and simple maps visible without attaching extra hardware.
• Low Power Design: Deep sleep current as low as 11uA lets the board run from battery or solar for extended field deployments.
• Multiple Power Inputs: Built-in 5V Type-C USB, LiPo connector and a dedicated solar panel connector let the board adapt to bench, mobile, or remote solar setups.
• GNSS and Extensibility: A 1.258P GNSS module connector and other interface headers make it straightforward to add GPS and extra sensors for tracking or telemetry projects.
• Robust Protections: Type-C power path includes voltage regulation, ESD protection, short-circuit protection and RF shielding for more reliable field use.

Who It's For

This board is aimed at embedded developers, makers running open source mesh projects like Meshtastic, and anyone building remote trackers or IoT prototypes that require both BLE and long-range LoRa connectivity. The combination of nRF52840 and SX1262 makes it especially useful when you need local BLE configuration plus reliable long-distance links.

Those who should look elsewhere include users who need a plug-and-play consumer GPS tracker with complete enclosure and app support out of the box, or projects that require sub-1uA sleep currents for extremely long unattended deployments; while efficient, the board is designed for developers comfortable with firmware and hardware integration.

Pros & Cons

Pros

• Versatile dual-radio setup with nRF52840 for BLE and SX1262 for LoRa, enabling both local and long-range communication.
• Flexible power options including Type-C USB, LiPo and solar panel connector make remote use practical.
• Optional 1.14 in TFT display provides immediate status feedback without extra modules.
• Low deep-sleep current of around 11uA supports battery-powered deployments.

Cons

• Not a fully finished consumer product; it is a development board and requires firmware setup and integration.
• The GNSS and display are optional accessories, so full tracking capability may require additional purchases.

Specifications

Microcontroller	nRF52840 (Bluetooth 5.0)
LoRa Chipset	SX1262 (902-928MHz)
Display	Optional 1.14 in TFT, 135 x 240, 262k colors
Deep Sleep Current	Approximately 11uA
Power Inputs	Type-C USB 5V, LiPo connector, Solar panel connector
Operating Range	-20 to 70C, 90% RH (no condensing)
Expansion	1.258P GNSS connector and multiple headers

Our Verdict

The Heltec Mesh Node T114 V2 is a strong value for embedded developers and makers who need a combined LoRa and BLE development platform with multiple power options and low sleep current. It is best when paired with GNSS and the optional display for tracking projects, and offers sensible hardware protections and expandability for field prototypes.

Frequently Asked Questions

Does it support Meshtastic out of the box?
It is compatible with Meshtastic and similar open source projects, but users will need to flash appropriate firmware and configure settings.

Can it run on solar power alone?
Yes, the board has a dedicated solar panel connector and LiPo input to enable solar-charged deployments when sized correctly for load and location.

Is the GNSS module included?
The GNSS is listed as an accessory connector; full GNSS functionality may require purchasing a compatible GNSS module.
