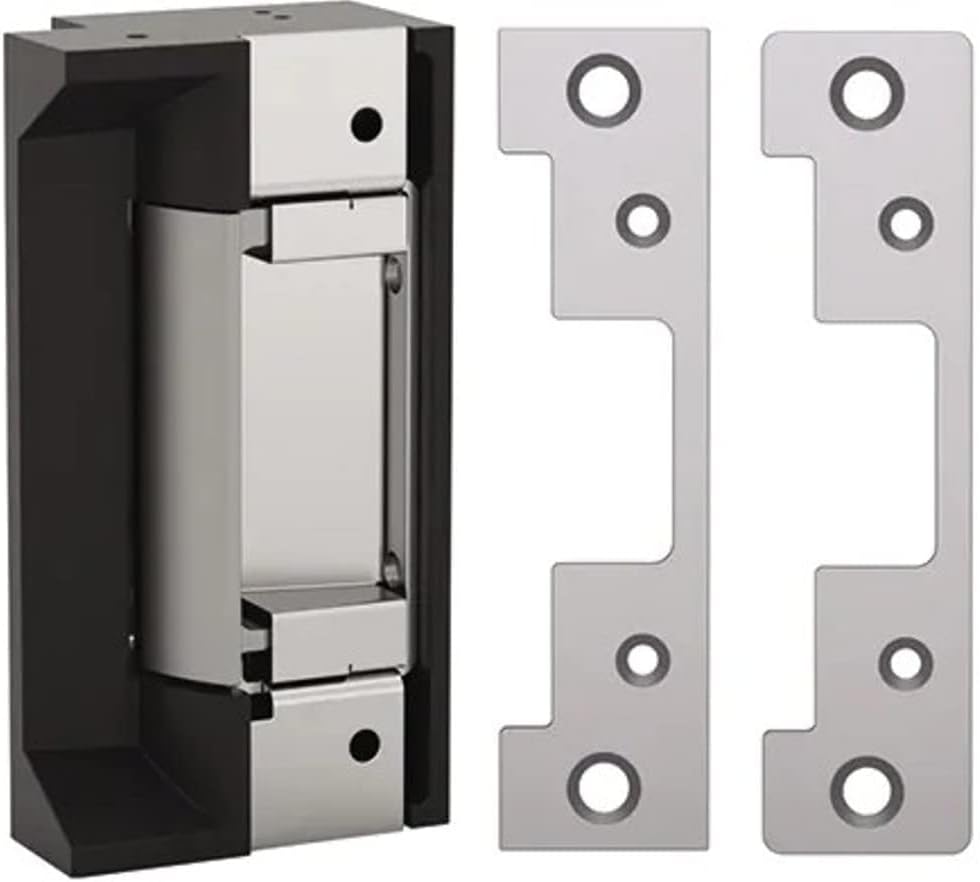

HES 5000C Universal Electric Strike Complete Pac - Dual Voltage

In this review of the HES 5000C-12/24D-630 Series electric strike, the bottom line is clear: this is a compact, heavy-duty solution for retrofit or new installations where jamb depth is limited and reliability matters. The reviewer found the unit especially useful for commercial doors and access control projects because it combines high static strength and impressive endurance with field selectable operation modes. Installation is straightforward for a locksmith or skilled DIYer familiar with door hardware, and the inclusion of both 501 and 501A faceplates makes it versatile for common latchbolt configurations.

Key Features

• Compact design: The shallow strike body depth of 1-3/16 in fits narrow jambs and tight cavity spaces where larger strikes will not.
• High strength: With a static strength rating of 1,500 lbs, the strike exceeds typical frame and hardware limits for secure installations.
• Durable operation: Endurance of 1 million cycles makes it appropriate for high-traffic commercial doors requiring long service life.
• Field selectable mode: The fail secure/fail safe selection in-field lets installers match the strike to site power and security policies without replacing parts.
• Dual voltage: Supports 12/24 VDC or VAC, giving flexibility to tie into existing low-voltage systems without extra transformers.
• Multiple faceplates included: The Complete Pac includes the 501 and 501A faceplates to accommodate common cylinder and mortise face mounting options.

Who It's For

The HES 5000C is aimed at locksmiths, facilities managers, and contractors who need a reliable electric strike for commercial latchbolt locks in tight jambs. It works well on office entry doors, retrofit applications where space behind the jamb is limited, and access control projects that require both durability and flexible voltage options.

Those who should look elsewhere include homeowners with light residential use who may prefer a lower-cost, simpler strike, and installers who need compatibility with specialty multi-point or rim panic devices not designed for a latchbolt style strike. Also, if a project requires thicker latch throws beyond 5/8 in without an appropriate gap, a different model may be necessary.

Pros & Cons

Pros

• Very strong static rating and a keeper pin design that enhances overall security for sash and frame loading.
• Long endurance rating of 1 million cycles suited to busy commercial environments.
• Field selectable fail secure/fail safe and dual 12/24 VDC/VAC support reduce parts complexity on site.
• Includes both 501 and 501A faceplates for installation flexibility.

Cons

• Limited to latchbolts up to 5/8 in (5/8 in requires a 1/8 in door gap), so some thicker latch applications need different hardware.

Specifications

Brand	HES Hardware - Assa Abloy
Static strength	1,500 lbs
Dynamic strength	70 ft-lbs
Endurance	1,000,000 cycles
Voltage	Dual 12/24 VDC or VAC
Strike body depth	1-3/16 in
Latchbolt accommodation	1/2 in or 5/8 in (5/8 in requires 1/8 in door gap)

Our Verdict

The HES 5000C Complete Pac is a solid choice for commercial and retrofit installations that need a compact, durable electric strike with flexible voltage and fail mode options. Its high strength, long endurance, and included faceplates provide good value for professionals who want a dependable, low-profile solution for latchbolt locks.

Frequently Asked Questions

Does the strike support both 12 and 24 V?
Yes, the unit is dual voltage and supports 12/24 VDC or VAC for flexible integration.

Can it be set to fail safe or fail secure in the field?
Yes, the strike is field selectable for fail secure or fail safe operation without part changes.

What latchbolt sizes will fit?
It accommodates 1/2 in latchbolts and 5/8 in latchbolts when a 1/8 in door gap is present.
