HGR20 Linear Guide Rail kit 1200mm with 4 HGH20CA Blocks - Smooth

In this review of the HGR20 Linear Guide Rail kit, the bottom line is clear: this kit is best suited for DIY CNC builders and light industrial automation projects that need a long, rigid rail set that slides smoothly. The reviewer found the pair of 1200mm HGR20 shafts plus four HGH20CA bearing blocks to deliver solid linear motion with minimal noise and no stick-slip in normal use, making it a practical choice for router tables, laser gantries and other motion systems where consistent straight travel matters.

Key Features

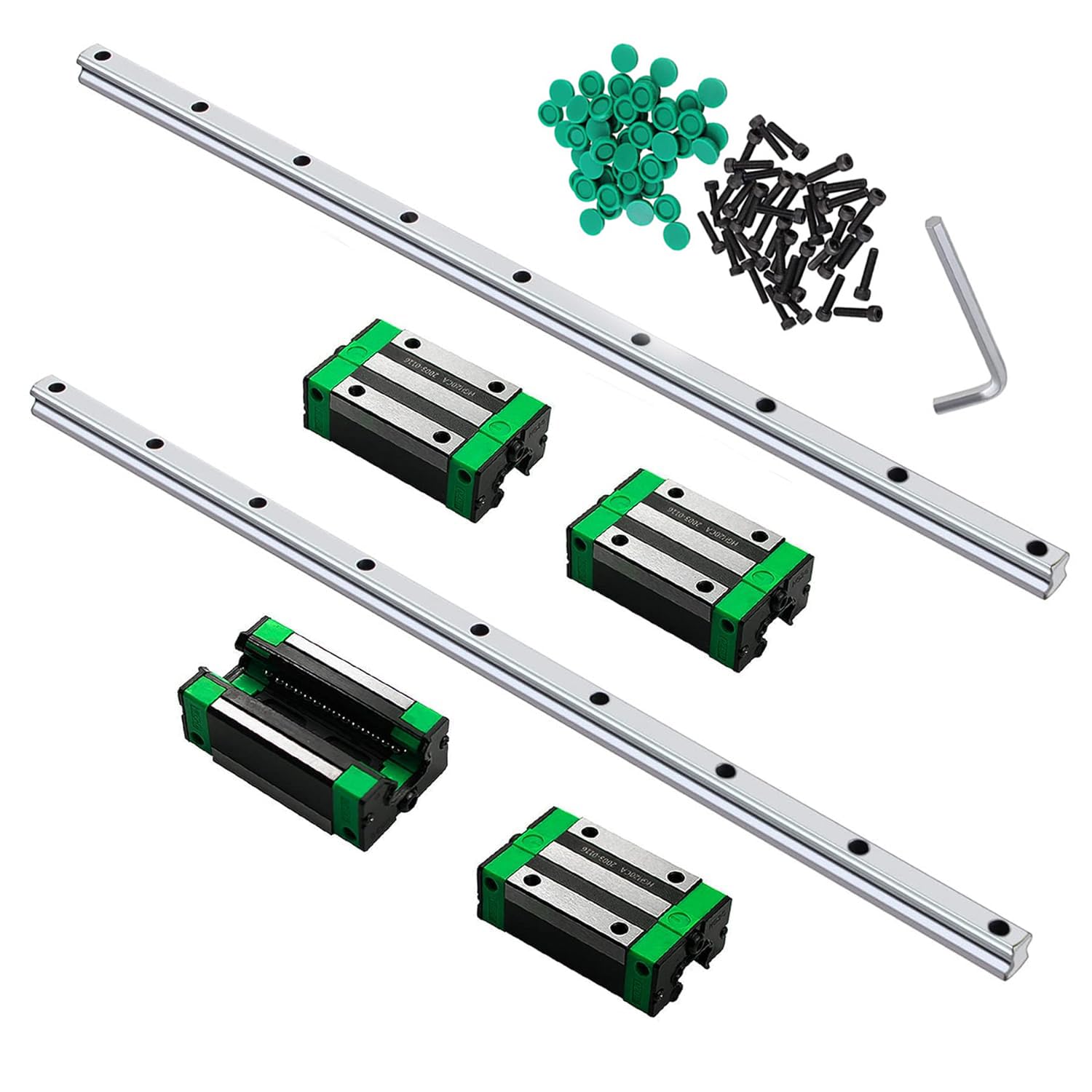

• Two long rails: The kit includes two 1200mm HGR20 carbon steel shafts that provide a stable, long travel baseline for large gantry or sliding applications.
• Industry-standard blocks: Four HGH20CA bearing blocks use internal linear bearings to deliver smooth sliding and predictable motion under load.
• Durable materials: Carbon steel rails paired with aluminum alloy blocks offer a balance of rigidity and lowered weight for durable, repeatable performance.
• Pre-drilled installation: Support rails come with pre-drilled holes so mounting and alignment on machine frames is straightforward for fabrication projects.
• Low maintenance operation: The stainless linear optical axis and bearing design are built to guide linear movement with high transmission efficiency and minimal upkeep.

Who It's For

The HGR20 rail kit is ideal for hobbyists and small shops building DIY CNC routers, laser cutters, pick-and-place fixtures, and other motion equipment that require long, rigid travel with consistent linear guidance. It suits projects where a 1200mm travel per rail is needed and where users can secure precise alignment during installation.

Those who should look elsewhere include users who require sealed, lifetime-lubricated or specialty high-speed bearings for heavy industrial duty cycles, or projects that demand pre-assembled carriages with proprietary mounting patterns. Also, buyers who cannot accommodate occasional bearing service or who need guaranteed factory-set preload options may prefer alternative guided systems.

Pros & Cons

Pros

• High rigidity from 1200mm carbon steel rails gives stable long travel for gantry applications.
• Blocks run smoothly on the rails with low noise and no stick-slip in normal setups.
• Pre-drilled rails and standard HGH20CA blocks simplify installation and replacement.
• Aluminum alloy blocks reduce weight while maintaining durability for many CNC uses.

Cons

• Some customers report mixed bearing quality and occasional loose bearing components during assembly.
• The blocks may require inspection or light rework at installation to ensure bearings are retained properly.

Specifications

Our Verdict

The HGR20 Linear Guide Rail kit is a sensible value for makers and small workshops that need long, reliable linear travel without complex setup. It delivers high transmission efficiency, low noise and sturdy construction for common CNC and automation tasks, though buyers should inspect bearing blocks during assembly due to some reported variability. For most DIY and light industrial uses it represents a practical, cost-effective guide solution.

Frequently Asked Questions

Are the rails ready to mount out of the box?
The rails come with pre-drilled holes and are ready for mounting, though careful alignment during installation is recommended.

Do the bearing blocks require maintenance?
The design is low maintenance, but periodic inspection and light lubrication will extend block life and address any loose bearing components.

Can this kit be used for heavy industrial robots?
The kit suits many automation roles, but for continuous heavy industrial duty cycles a specification review and possibly higher-grade sealed bearings are advised.
