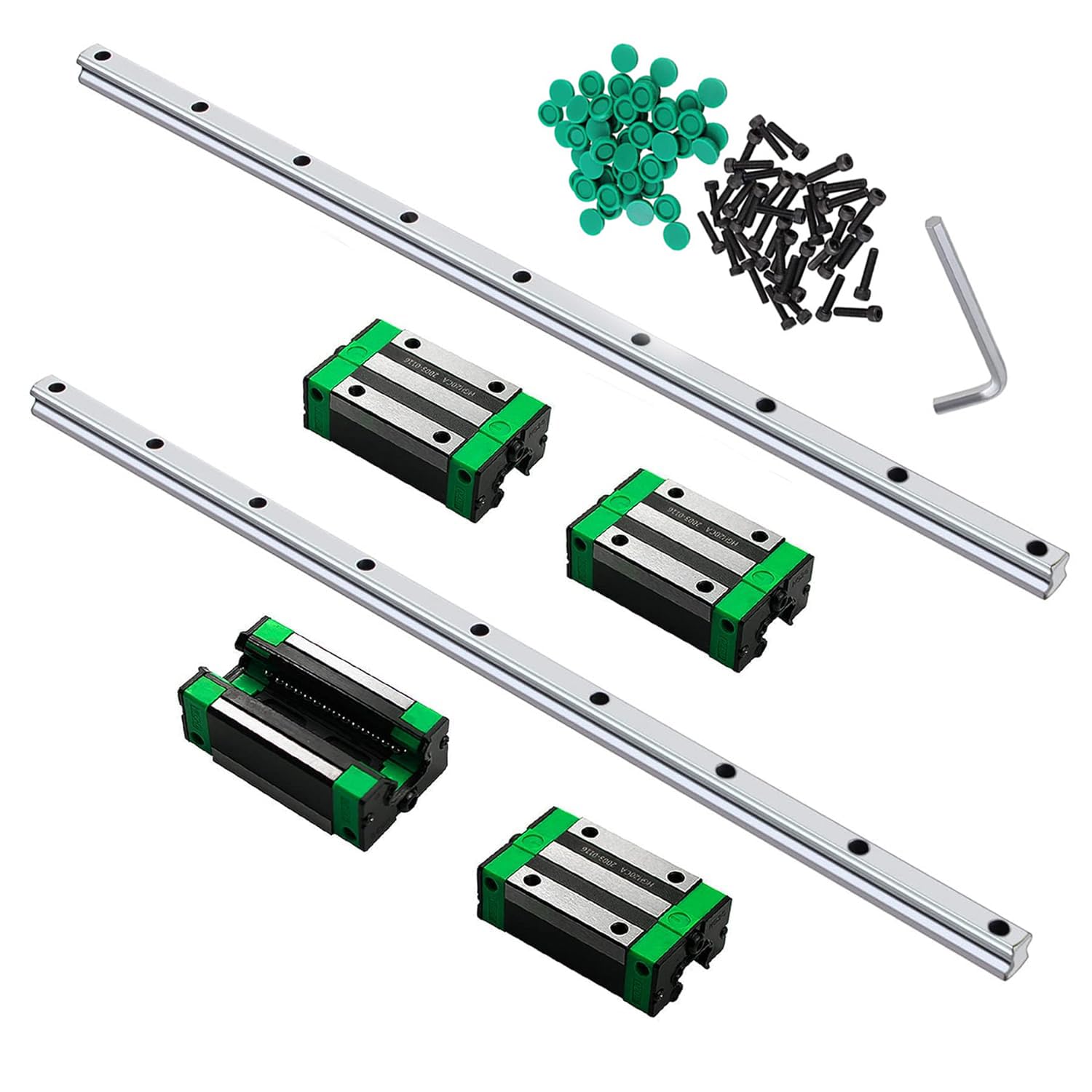

HGR20 Linear Guide Rail kit 2Pcs 1000mm with 4 HGH20CA Blocks - Smooth

Our review of the HGR20 Linear Guide Rail kit finds it best suited for hobbyists and light industrial users who need a reliable, low-noise linear motion solution. The kit includes two 1000mm HGR20 rails and four HGH20CA blocks, and the single biggest reason to buy is the combination of high-quality carbon steel rails with aluminum alloy blocks that deliver smooth, high-precision motion without complex maintenance. For DIY CNC routers, laser cutters, or precision fixtures this package offers dependable guidance and easy installation from pre-drilled rails.

Key Features

• Complete kit: Comes with two 1000mm HGR20 rails and four HGH20CA bearing blocks so users have all primary components for a two-rail slide setup.
• Durable materials: Carbon steel rails and aluminum alloy blocks provide a balance of stiffness and weight for long-lasting linear guidance.
• Pre-drilled rails: Support rails with pre-drilled holes simplify installation and alignment during assembly on machine frames.
• Smooth motion: Industry-standard HGH20CA internal linear bearings ensure low noise, no stick-slip effect, and consistent sliding performance.
• Anti-rust treatment: Surface treatment on rails and bearings improves corrosion resistance and reduces maintenance needs.
• US warehouse shipping: Stocking in east and west US warehouses speeds delivery for domestic buyers.

Who It's For

This kit is aimed at makers, small machine shops, and integrators building or refurbishing CNC routers, laser cutting beds, lathes, or other automated printer and handling systems that require accurate linear movement. The included 1000mm shafts are suitable for medium-span gantries and rigs that need robust guidance without custom shafting.

Those needing ultra-high load capacity, sealed or recirculating ball bearings for harsh environments, or very long travel beyond 1000mm per rail should consider a different industrial-grade solution. Also, buyers who want pre-assembled carriages rather than separate blocks may prefer a different purchase.

Pros & Cons

Pros

• Complete two-rail kit with four HGH20CA blocks covers common DIY CNC layouts.
• High-quality carbon steel rails and aluminum alloy blocks provide good rigidity and low weight.
• Pre-drilled rails and industry-standard blocks make installation and replacement straightforward.
• Surface treatment reduces rust and maintenance, keeping motion smooth over time.

Cons

• Not optimized for heavy industrial loads where specialized high-load guides would be required.
• Blocks are separate from rails on delivery so some alignment and setup is needed by the installer.

Specifications

Type	HGR20 Slide Rail
Rail length	1000mm (39.37in)
Blocks included	4 x HGH20CA bearing slide blocks
Rail material	Carbon steel
Block material	Aluminum alloy
Fixing screw hole size	M5 x 16mm
Static load rating	27.76 (implied)

Our Verdict

The HGR20 Linear Guide Rail kit is a practical choice for DIY CNC builders and light industrial users who want reliable, low-noise linear motion with minimal upkeep. It delivers good value when you need standard HGR20 sizing and ready-to-install rails with industry-standard HGH20CA blocks, making it a sensible upgrade for many small machines and automated printer setups.

Frequently Asked Questions

Are the rails ready to mount?
The rails come pre-drilled for mounting and include M5 fixing hole sizing to simplify installation on compatible frames.

Do the blocks require lubrication?
The product is surface treated for anti-rust and low maintenance, but standard light lubrication is recommended for long-term smooth operation.

Is this kit suitable for heavy industrial loads?
It is best for hobbyist to light industrial applications; very high load or harsh environment use may need specialized heavy-duty guides.
