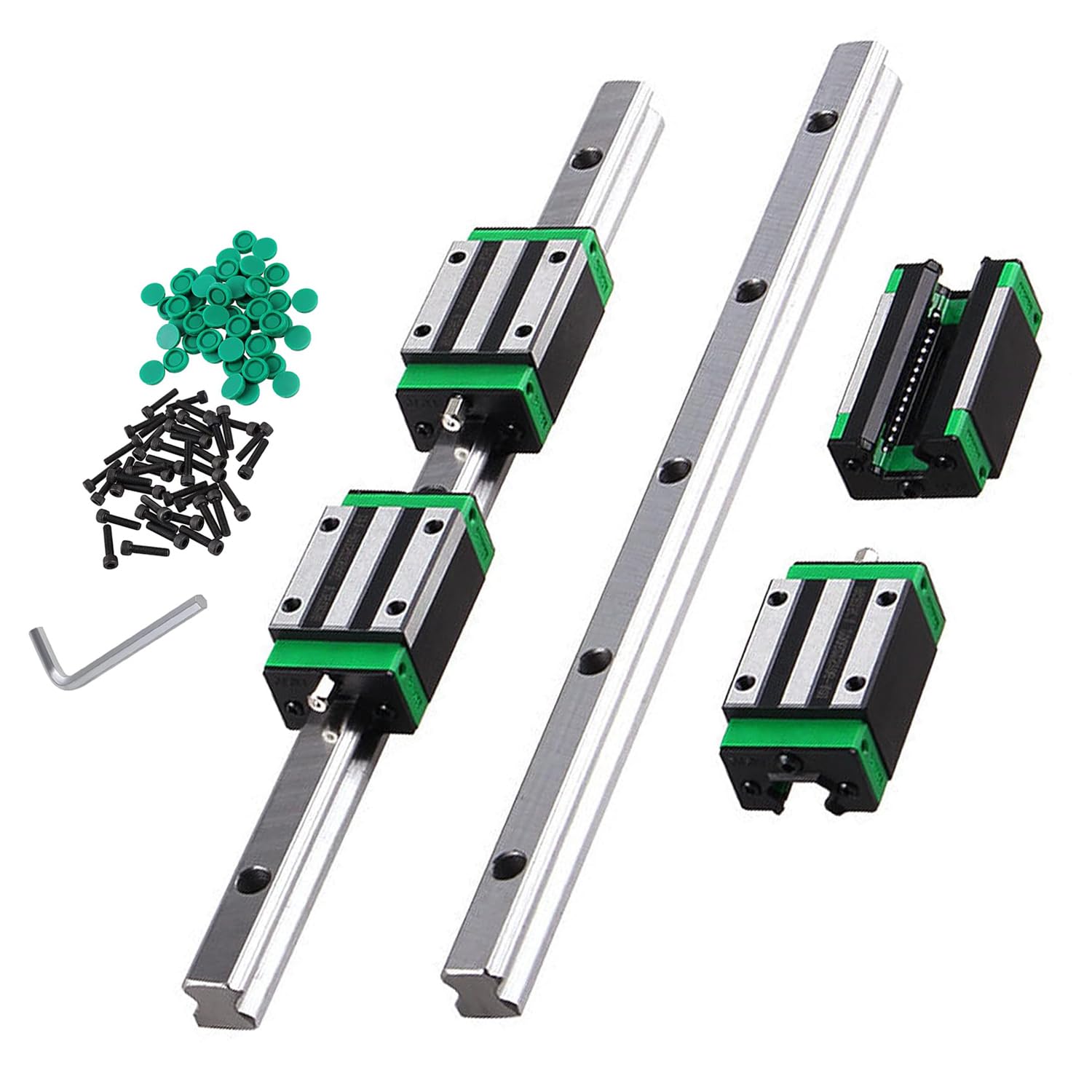

HGR20 Linear Guide Rail kit 2Pcs 500mm with 4 HGH20CA Blocks

In this review of the HGR20 Linear Guide Rail kit, the bottom line is simple: it is a practical, value-oriented option for hobbyists and light industrial users who need smooth, low-noise linear motion for DIY CNC machines or automated printers. The set includes two 500 mm HGR20 rails and four HGH20CA bearing blocks, and the single biggest reason to buy is the combination of sturdy carbon steel rails and aluminum-alloy blocks that deliver consistent, low-friction travel without complex maintenance.

Key Features

• Complete kit: Ships with two 500 mm HGR20 rail shafts and four HGH20CA bearing slide blocks so users get a ready-to-install linear motion set.
• Durable construction: The rail shafts are made of high quality carbon steel and the blocks use aluminum alloy to balance strength and weight.
• Smooth sliding: Internal linear bearings guide the block on the stainless steel axis for low noise and minimal stick-slip during travel.
• Pre-drilled rails: Support rails come with pre-drilled holes for straightforward mounting and alignment on common frames and rigs.
• Low maintenance: The assembly is described as easy to install and does not require routine maintenance for typical applications.
• Wide compatibility: Designed for automation machinery such as DIY CNC routers, lathes, machine tools and automated printers.

Who It's For

This kit is aimed at makers, small machine shops and engineers putting together DIY CNC routers, automated printers or light industrial motion stages who need a reliable HGR20 size rail at a modest price. It suits projects where smooth linear travel and straightforward installation are priorities.

Those who need ultra-high endurance bearings for continuous heavy industrial duty or certified ball-bearing traceability should look elsewhere, or consider higher-end branded rail systems with factory-backed bearing assemblies and documented tolerances.

Pros & Cons

Pros

• Solid materials: carbon steel rails and aluminum alloy blocks provide a good balance of strength and durability.
• Smooth performance: users report low noise and smooth block travel when bearings are intact.
• Ready to install: rails with pre-drilled holes simplify mounting and reduce setup time.
• Good value: includes two rails and four blocks, covering typical linear axes for many projects.

Cons

• Mixed bearing feedback: some users report issues with bearing components coming out of blocks, so careful inspection at receipt is advised.
• Not positioned as a heavy continuous-duty industrial solution compared with premium branded guides.

Specifications

Rail model	HGR20
Rail length	500 mm
Number of rails	2 pcs
Bearing blocks	4 pcs HGH20CA
Rail material	High quality carbon steel
Block material	Aluminum alloy
Typical uses	DIY CNC, automated printers, machine tools

Our Verdict

This HGR20 kit is a practical buy for hobbyists and light-duty machine builders who want a complete, straightforward linear guide solution without a premium price. It delivers smooth motion and easy installation for many automation and CNC projects, but inspect bearing blocks on arrival and reserve it for moderate-duty applications rather than continuous heavy industrial use.

Frequently Asked Questions

Are these rails ready to install out of the box?
Yes, the rails come with pre-drilled holes and the set includes four HGH20CA blocks so basic mounting and installation is straightforward.

Do the bearing blocks require regular maintenance?
The product is described as low maintenance and easy to install, though periodic checks and light lubrication in demanding environments are prudent.

Can this kit be used for a DIY CNC router?
Yes, it is commonly used in DIY CNC routers, automated printers and similar projects where HGR20 size and the supplied block count meet the axis requirements.
