HGR20 Linear Guide Rail kit 800mm with 4 HGH20CA Blocks - Precision

In this review of the HGR20 Linear Guide Rail kit 800mm, the bottom line is simple: this set is aimed at hobbyists and small workshop builders who need a robust, low-noise linear guide for DIY CNC, laser, or automation projects. The kit delivers smooth linear motion thanks to the combination of two 800mm HGR20 rails and four HGH20CA bearing blocks; that smoothness is the single biggest reason to consider it if you need accurate straight-line travel without complex maintenance.

Key Features

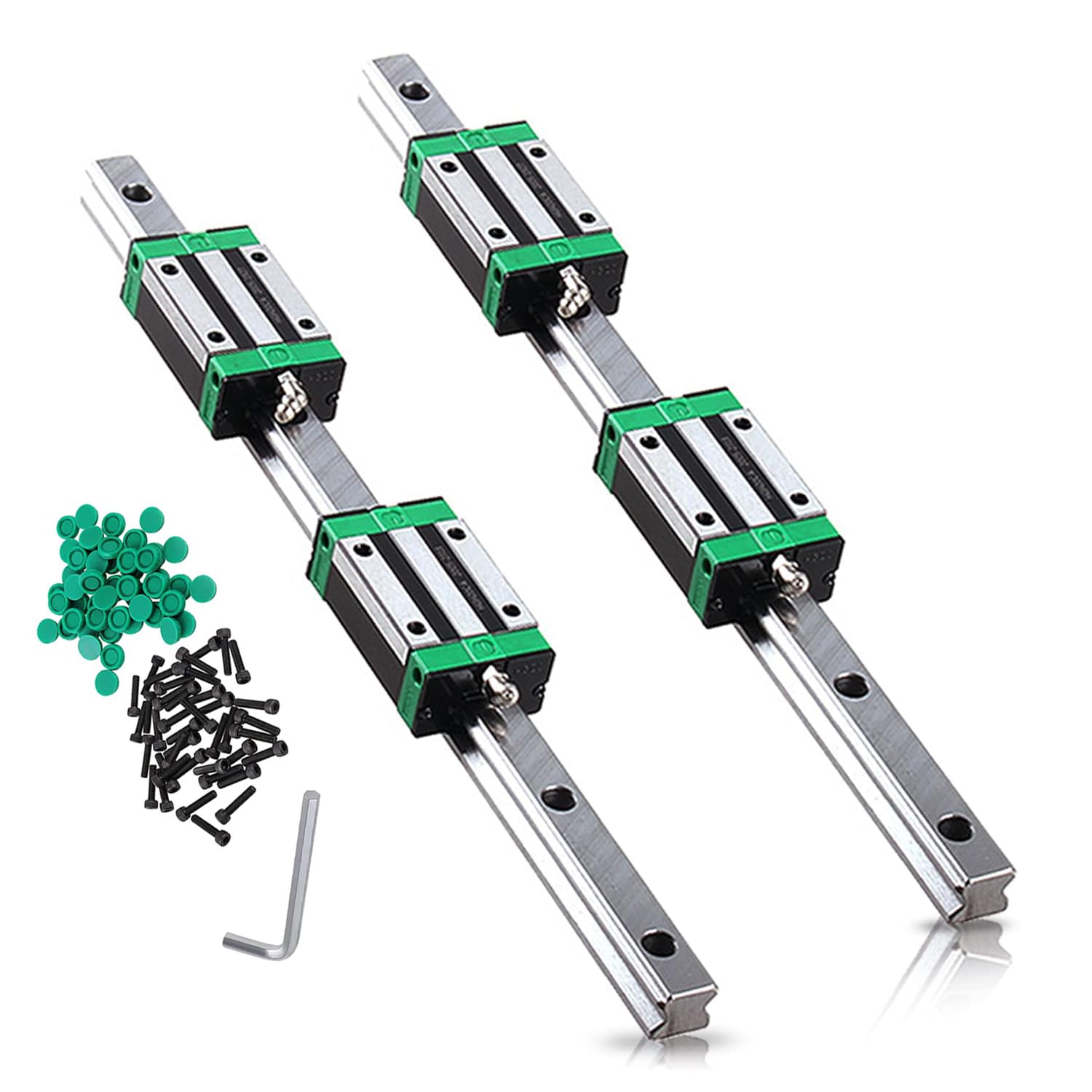

• Complete kit: Two 800mm HGR20 rail shafts paired with four industry-standard HGH20CA blocks provide a ready-to-install linear slide solution for many machines.
• Material construction: The rails use high quality carbon steel while the bearing blocks use aluminum alloy, offering a balance of rigidity and lower weight for structural installations.
• Pre-drilled rails: Support rails arrive with pre-drilled holes which simplifies alignment and installation on frames and gantries.
• Smooth linear bearings: Internal linear bearings guide the blocks for low-noise, no stick-slip motion suited to precision tooling and repeatable travel.
• Low maintenance: The stainless steel optical axis and design mean the rails require minimal upkeep for typical workshop use.

Who It's For

The kit is ideal for DIY CNC router builders, small machine tool owners, and hobbyists upgrading manual slides to precise linear guides; its 800mm length fits mid-size gantries and table moves. It also works for automation tasks where straightforward installation and long travel are required.

It is less suitable for ultra-high precision laboratory instruments that need vendor-certified accuracy metrics or for heavy industrial systems where specialized high-load guides and detailed inspection records are required. Customers needing verified bearing traceability should consider other options.

Pros & Cons

Pros

• Supplied as a full set with two rails and four blocks for quicker system assembly.
• High transmission efficiency with low noise and minimal stick-slip gives smooth travel in common CNC and automation uses.
• Pre-drilled rails and aluminum alloy blocks make installation and mounting easier and lighter.

Cons

• Some customers reported mixed bearing quality, with a few blocks experiencing bearing retention issues during installation.

Specifications

Our Verdict

For workshop builders and DIY automation projects the HGR20 800mm kit is a practical, cost-effective choice because it combines proven rail geometry with easy installation and generally smooth block travel. It represents good value for mid-size machines, though buyers should inspect blocks on arrival due to occasional bearing retention issues mentioned by other users.

Frequently Asked Questions

Are these rails ready to mount?
Yes, the rails come with pre-drilled holes to simplify mounting and alignment on typical frames.

Do the blocks require regular maintenance?
No, the design and stainless steel components mean they need minimal maintenance for standard workshop use.

Can these handle heavy loads?
They suit many DIY and automation tasks, but for very heavy industrial loads consider higher capacity or certified guides.
