Hidden Pivot Hinge 570LBS Load-Bearing Invisible Pivot Hinge

In this review the Hidden Pivot Hinge is assessed as a heavy-duty option for anyone building a concealed bookcase or Murphy-style secret door. The standout reason to consider it is the 570lbs load-bearing capacity paired with a 360 rotation design, which makes it suitable for large, solid doors that need a discreet pivoting mechanism. The review focuses on build quality, installation notes, and real-world suitability for home projects where a clean, invisible appearance and robust support are required.

Key Features

• 570lbs load-bearing: The hinge supports very heavy doors, reducing concern about sagging or frame stress when properly installed.
• 360 quiet rotation: The pivot rotates smoothly and quietly at multiple angles, producing a clean hidden-door effect when linked top and bottom.
• 304 stainless steel construction: Solid stainless material resists bending and improves long-term durability in normal indoor environments.

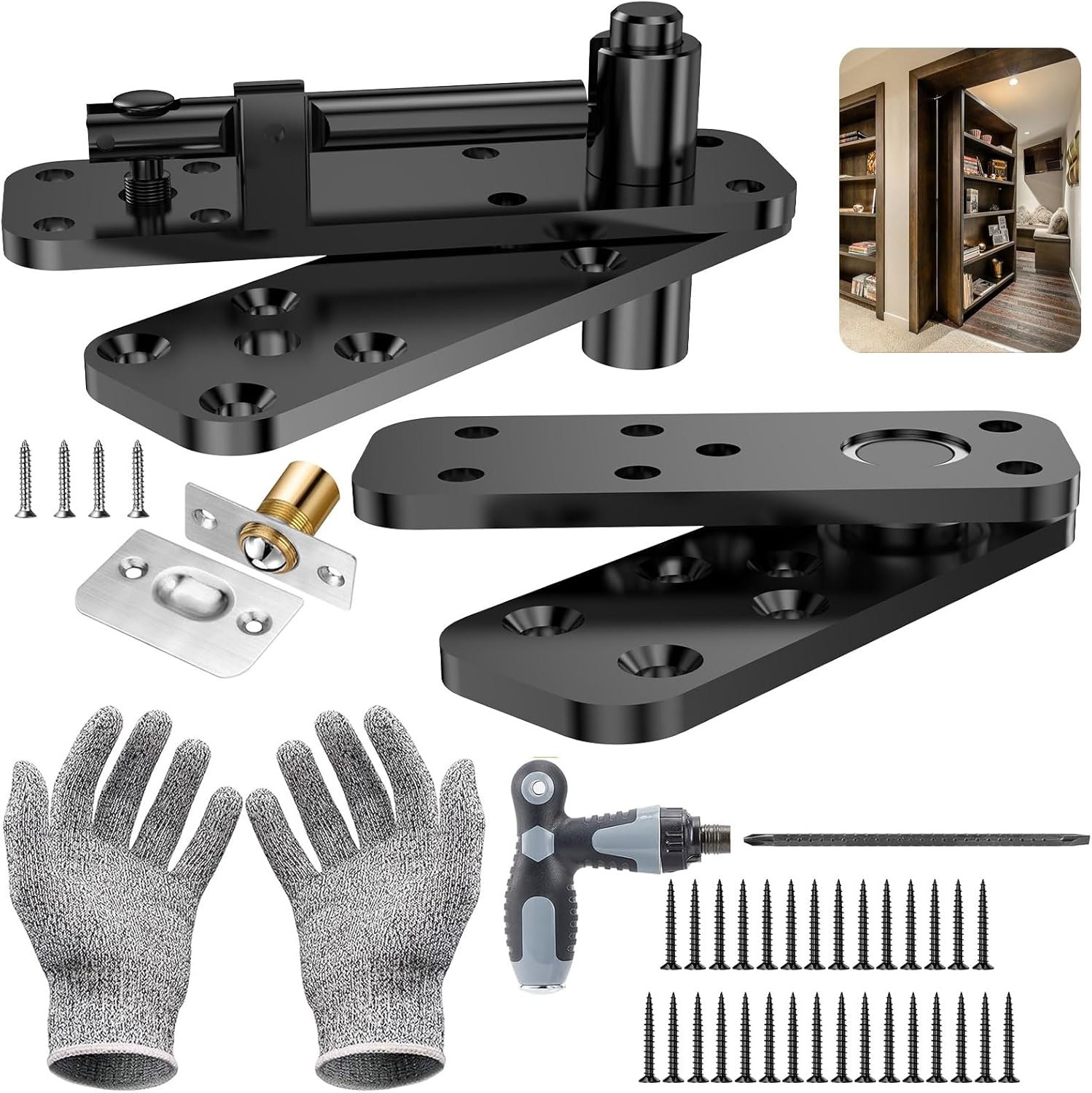

• Complete kit included: The package arrives with top and bottom pivot parts, 30 screws, a ball catch with screws, and a screwdriver to simplify initial installation.
• Telescopic pin adjustment: The supplied telescopic pin lets installers fine-tune vertical alignment without replacing parts.

Who It's For

The Hidden Pivot Hinge fits homeowners, carpenters, and hobbyist woodworkers creating secret bookcase doors, Murphy doors, or hidden panels that require a near-invisible pivot and high load capacity. It is particularly useful when the door is heavy or the design prioritizes a clean, flush appearance with no exposed strap hinges.

Those who should look elsewhere include buyers wanting a quick retrofit for light interior doors where an ordinary butt hinge would suffice, or projects exposed to harsh outdoor weather without additional corrosion protection. Also, users uncomfortable with minor routing or precise alignment may prefer hinges with simpler surface mounting.

Pros & Cons

Pros

• Very high load capacity that supports large, heavy panels reliably.
• Robust build quality from 304 stainless steel for long service life indoors.
• 360-degree, quiet rotation yields a smooth, concealed action ideal for secret doors.
• Comes as a mostly complete kit with screws, ball catch, and screwdriver, easing installation.

Cons

• May require routing a groove or careful alignment during installation to minimize visible gaps.
• Mixed feedback on door security requires correct installation and frame reinforcement for best results.

Specifications

Our Verdict

The Hidden Pivot Hinge is a practical choice for anyone building a concealed or bookcase door that needs heavy-duty support and a discreet pivot action. Its high load rating, solid stainless construction, and included hardware make it good value for projects that demand durability and a hidden aesthetic, provided the installer is comfortable with precise alignment and occasional routing.

Frequently Asked Questions

Can this hinge support a solid wood bookcase door?
Yes; the hinge is rated to 570lbs and is intended for heavy doors like solid wood bookcase or Murphy doors when installed correctly.

Is the kit ready to install out of the box?
The kit includes pivot parts, screws, a ball catch, and a screwdriver, but installers may need to rout a groove or adjust the telescopic pin for proper alignment.

Will the finish resist rust?
The hinge is made from 304 stainless steel with a treated surface to reduce rust and improve durability for indoor use.
