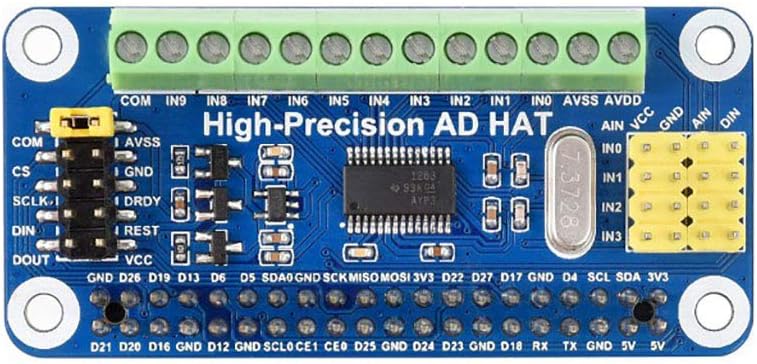

High-Precision AD HAT for Raspberry Pi & Jetson Nano Projects

The High-Precision AD HAT is an essential accessory for any Raspberry Pi or Jetson Nano enthusiast. Designed with the advanced ADS1263 chip, this module ensures low noise and minimal temperature drift, making it perfect for precision applications. With a 10-channel, 32-bit high precision ADC, it supports up to 5 channels of differential input, allowing for versatile sensor integration.

One of the standout features of this AD HAT is its impressive maximum sampling rate of 38.4kSPS. This high-speed performance is crucial for applications requiring rapid data acquisition. Additionally, the embedded 24-bit auxiliary ADC provides further flexibility for your projects, enabling you to monitor multiple signals simultaneously.

For those looking to connect various sensor modules, the onboard AD header input is compatible with the Waveshare sensor pinout. This compatibility simplifies the process of integrating different sensors, making it easier than ever to expand your project's capabilities. The onboard AD screw terminal input also allows for straightforward connections to analog signals and power supplies.

Control is made easy with the onboard control header, which facilitates interaction with other hosts beyond just the Raspberry Pi. This feature is particularly beneficial for users who want to integrate the AD HAT into larger systems or use it in conjunction with other microcontrollers.

Another innovative aspect of the High-Precision AD HAT is the three-wire RTD circuit, which can be enabled by soldering a 0-ohm resistor. This feature allows for accurate temperature measurements, making it ideal for environmental monitoring and industrial applications.

With its 8x multiplexing GPIO and programmable gain amplifier (PGA) with a maximum of 32 times, this module offers extensive customization options. Whether you are working on a simple hobby project or a complex industrial application, the High-Precision AD HAT provides the tools you need to achieve high-quality results.

In summary, the High-Precision AD HAT is a powerful and versatile tool for anyone working with Raspberry Pi or Jetson Nano. Its combination of high precision, low noise, and extensive connectivity options make it an invaluable addition to your electronics toolkit. Don't miss out on the opportunity to enhance your projects with this exceptional ADC module.
