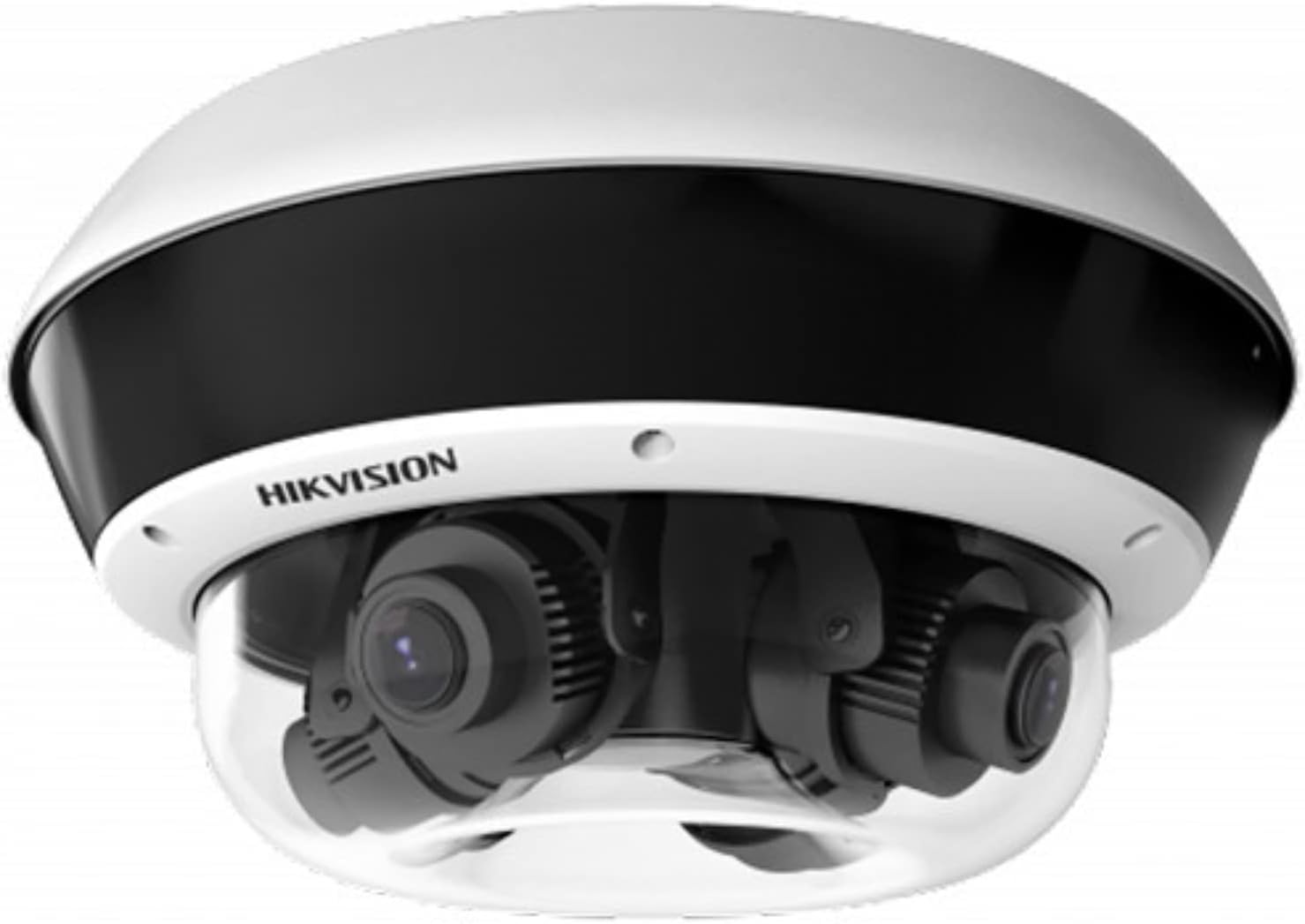

HIKVISION DS-2CD6D24FWD-Z PanoVu Multi-Sensor 8MP - Wide Coverage

Our review of the HIKVISION DS-2CD6D24FWD-Z PanoVu finds it best suited for sites that need uninterrupted wide-area coverage without gaps between cameras. This multi-sensor dome combines four 1/2.7" progressive scan CMOS sensors into a single IP67, IK10 housing to deliver a total of 7680 x 1080 resolution, and the standout reason to buy is simple: it replaces multiple individual cameras while keeping installation and cabling simpler thanks to integrated PoE. For anyone managing perimeter, parking lot, or campus surveillance, the camera offers a practical balance of high resolution and rugged outdoor durability.

Key Features

• Total 8MP coverage: Four 1920 x 1080 sensors stitch a 7680 x 1080 panorama that reduces blind spots across a wide field of view.
• Motorized varifocal lenses: Each lens adjusts from 2.8 mm to 12 mm so installers can fine tune framing and zoom without swapping optics.
• Integrated PoE: RJ45 with Power over Ethernet simplifies installation by carrying power and data on a single cable to each unit.
• Edge recording: Built-in microSD support up to 128GB allows local recording as a backup when network storage is unavailable.
• Rugged outdoor rating: IP67 and IK10 construction protects the camera from weather and vandalism in exposed installations.

Who It's For

The DS-2CD6D24FWD-Z is aimed at system integrators, security managers, and property owners who need comprehensive area monitoring with fewer camera housings and simpler cabling logistics. It is especially useful for perimeter security, parking lots, retail exteriors, and campus corridors where a continuous horizontal view reduces the need for multiple overlapping domes.

Buyers who need ultra-long zoom, thermal imaging, or a single-sensor 4K image for facial recognition at extreme distances should consider other models; this PanoVu prioritizes broad coverage and durability rather than very long focal length or single-sensor low-light specialization.

Pros & Cons

Pros

• High combined resolution that effectively replaces several individual 1080p cameras for wide coverage.
• Motorized 2.8-12 mm varifocal lenses allow flexible scene framing after mounting.
• PoE support and microSD recording simplify deployment and provide resilient local storage.

Cons

• Lack of extremely long focal length means distant detail may not match a dedicated telephoto camera.

Specifications

Our Verdict

The HIKVISION DS-2CD6D24FWD-Z PanoVu is a sensible choice for anyone needing wide, continuous coverage and a rugged outdoor package. It delivers strong combined resolution, flexible motorized varifocals, and simplified PoE installation, making it good value for perimeter and area monitoring where replacing multiple cameras with one durable unit speeds deployment and reduces cabling.

Frequently Asked Questions

Does it record if the network goes down?
Yes. The camera accepts microSD/SDHC/SDXC cards up to 128GB for local edge recording.

Can the lenses be adjusted after installation?
Yes. Each of the four lenses is motorized and can be adjusted remotely to change focal length between 2.8 mm and 12 mm.

Is it suitable for exposed outdoor mounting?
Yes. The enclosure is rated IP67 for weather resistance and IK10 for vandal protection, suitable for exposed outdoor sites.
