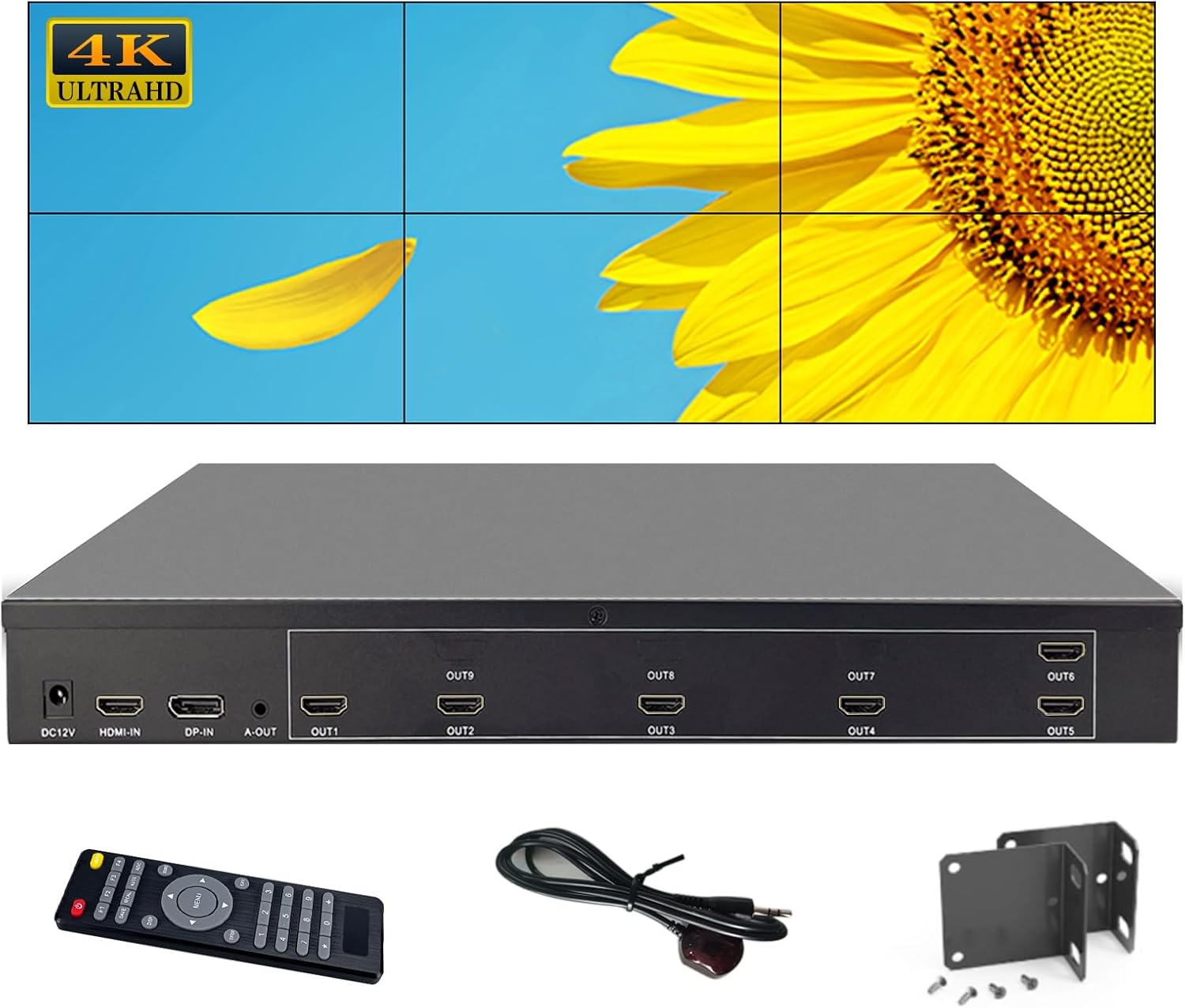

ICUIXIAN HDMI Video Wall Controller 2x3 4K - Flexible 6-TV Splicing

In this review the ICUIXIAN HDMI Video Wall Controller 2x3 4K is judged as a practical, budget-conscious option for installers and small control rooms that need to drive a six-panel video wall from a single high-resolution source. The core reason to consider it is straightforward: it accepts a DP1.2 or HDMI2.0 (HDCP2.2) input and produces synchronized outputs to six HDMI displays at resolutions up to UHD, making it useful where a single large image across multiple TVs is required. The unit emphasizes flexible tiling and a simple setup, so those seeking a reliable 4K60 capable processor will find this model compelling.

Key Features

• 4K@60Hz input: Accepts DP1.2 or HDMI2.0 (HDCP2.2/1.4) inputs, allowing a single high-resolution source to feed the wall at 4096x2160@60Hz for sharp image detail.
• Six HDMI outputs: Provides six HDMI outputs to connect individual TVs so the input image can be spliced across a 2x3 or other configurations without extra splitters.
• Multiple splicing modes: Offers flexible layouts such as 2x3, 3x2, 2x2, 1x4 and several 1xN options so the same hardware adapts to different wall shapes.
• 180 degree flip and edge fusion: Each output supports mirrored flip and edge fusion to reduce visible seams and correct orientation for unusual mounts.
• Remote control and plug and play: Simple remote-based control reduces the need for deep configuration, making installation faster for integrators or DIY setups.
• Customer support focus: The seller notes professional technical support is available, which can be helpful during setup and troubleshooting.

Who It's For

This controller is well suited to small venues, retail displays, digital signage installers, and corporate lobbies that need a single 4K source shown across up to six HDMI TVs. It is useful when the installer wants multiple native HDMI outputs and the ability to switch between common wall layouts quickly.

It is less appropriate for large broadcast control rooms requiring advanced scaling, multi-source windowing, or extensive IP/video-over-Ethernet workflows; those users should look to higher-end processors that offer more advanced input routing and management features.

Pros & Cons

Pros

• Supports true 4K60 input and up to 3840x2160@60Hz HDMI outputs for high visual fidelity.
• Flexible tiling modes let one device serve multiple wall layouts without additional hardware.
• Simple remote control and plug-and-play design speeds installation for typical signage and display projects.
• Per-output 180 degree flip helps reduce seam appearance and accommodate rotated screens.

Cons

• Does not provide advanced multi-window composition or network management features expected in higher-end processors.
• Output resolutions include 3840x2160 and 1920x1080 only, so some specialized resolution needs may require verification.

Specifications

Input	1 x DP1.2 + 1 x HDMI2.0 (HDCP2.2/1.4)
Max input resolution	4096x2160@60Hz
Outputs	6 x HDMI
Output resolutions	3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz
Supported wall modes	2x3, 3x2, 2x2, 1x4, 4x1, 1x2, 2x1, 3x1, 1x3
Special functions	180 degree flip, edge fusion, remote control

Our Verdict

The ICUIXIAN HDMI Video Wall Controller 2x3 4K is a practical, cost-aware choice for projects that need a single 4K source shown across up to six HDMI TVs with flexible tiling and simple setup. Installers and small AV teams will appreciate the DP/HDMI input compatibility and per-output flip options, while those needing advanced scaling or networked control should consider higher-end processors. For straightforward multi-TV splicing at UHD, it offers solid value and useful features.

Frequently Asked Questions

Can the controller handle a native 4K60 source?
Yes, it accepts DP1.2 or HDMI2.0 with HDCP2.2/1.4 and supports input up to 4096x2160@60Hz.

How many displays can be connected and in what layouts?
Up to six HDMI displays can be connected and arranged in layouts including 2x3, 3x2, 2x2, 1x4, 4x1 and several 1xN arrangements.

Is advanced multi-window composition supported?
The unit focuses on full-screen tiling and edge fusion; it does not provide advanced multi-window composition or complex network management found on higher-end video wall processors.
