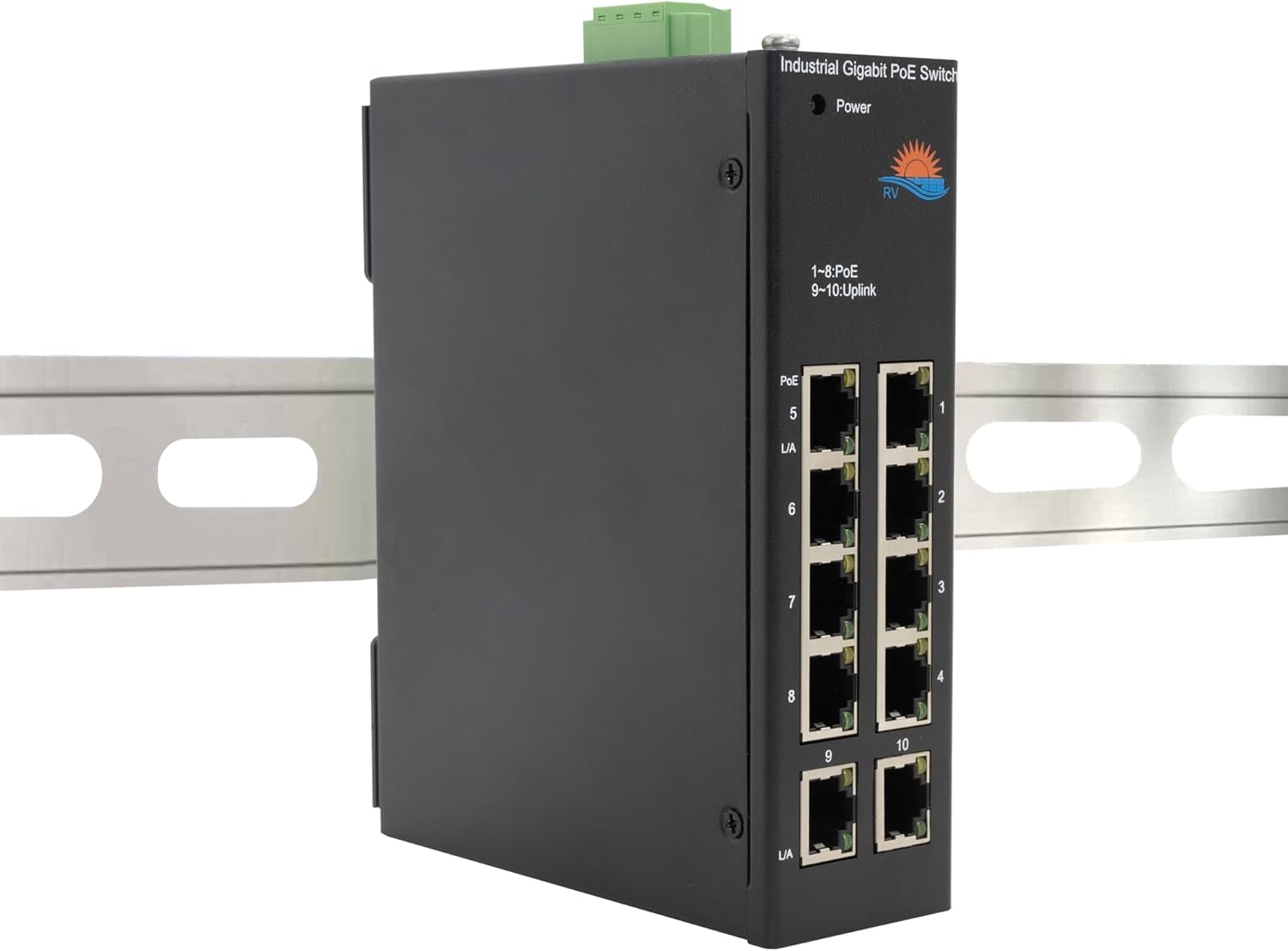

Industrial 10-Port Gigabit Solar PoE Switch with Voltage Booster

In this review the reviewer evaluates a purpose-built industrial PoE switch aimed at off-grid and vehicle installations. The bottom line: this switch is for integrators and DIYers who need a compact, rugged Gigabit PoE solution that accepts DC12V-24V inputs and provides a standardized DC48V PoE output via a built-in voltage booster. The biggest reason to buy is its ability to deliver up to 30W per port with a 120W PoE budget while running from common solar, RV, or vehicle power rails, making it particularly useful where AC power and conventional PoE switches are not available.

Key Features

• Wide input range: Accepts DC10V-32V so it can be powered from common solar panels, batteries, or vehicle systems without extra converters.
• Built-in voltage booster: Converts DC12V-24V input to the DC48V required for standard IEEE802.3af/at PoE output to power cameras and access points.
• Full Gigabit ports: Eight 10/100/1000Mbps PoE ports plus two Gigabit uplinks provide high-bandwidth, low-latency links for surveillance or networking backhaul.
• Redundant power inputs: Dual DC12V-24V inputs with auto failover help maintain non-stop PoE supply in critical deployments.
• Industrial build: Rugged IP30 metal enclosure, fanless cooling, wide -10C to 60C operating range and surge protection to withstand harsh field conditions.
• Flexible mounting: DIN-rail, tabletop or wall mounting options simplify installation in cabinets, vehicles, or solar enclosures.

Who It's For

This product is best for installers and system integrators building off-grid CCTV, VoIP or wireless access systems where AC power or 48V supplies are impractical. It is also a good match for RV, truck and bus network builds that need enterprise-style PoE from a 12V vehicle battery.

Those who should look elsewhere include users who require managed switch features, PoE++ beyond 30W per port, or full IP67 weatherproofing for exposed outdoor mounting; in such cases a different managed or higher-power solution would be more appropriate.

Pros & Cons

Pros

• Provides standardized IEEE802.3af/at PoE up to 30W per port while accepting 12V-24V inputs, simplifying solar and vehicle deployments.
• Dual power inputs and auto failover increase reliability for critical systems that cannot tolerate downtime.
• Compact, fanless metal design with wide temperature range and surge protection is well suited to industrial and mobile environments.
• Full Gigabit on all ports and two uplinks deliver the bandwidth needed for modern IP cameras and VoIP equipment.

Cons

• Not a managed switch, so it lacks VLAN, QoS and advanced traffic controls that some installers may need.
• Enclosure is IP30 rated and not intended for continuous outdoor exposure without additional housing.

Specifications

Ports	8 x IEEE802.3af/at PoE ports, 2 x Gigabit uplink ports
PoE Budget	Up to 120W total (30W per port max)
Input Voltage	DC10V-32V (supports DC12V, DC18V, DC24V)
Voltage Booster	Built-in DC12V-24V to DC48V conversion for PoE
Operating Temperature	-10C to 60C
Enclosure	Rugged metal, fanless, IP30
Surge Protection	6kV ESD and 4kV surge protection (power and signal)

Our Verdict

For anyone building solar-powered, vehicle or remote PoE networks this switch offers a focused, practical solution: it converts common DC12V-24V supplies to the DC48V PoE standard while delivering full Gigabit on eight PoE ports and two uplinks. Its redundant inputs, durable metal case and wide temperature range make it good value for installations that need reliable, non-stop PoE without AC power or an external 48V supply.

Frequently Asked Questions

Can this switch run from a 12V vehicle battery?
Yes, it supports DC12V input and includes a built-in booster to provide the DC48V PoE output required by IEEE802.3af/at devices.

How much PoE power is available per port and overall?
Each PoE port can deliver up to 30W and the total PoE budget is up to 120W depending on input voltage and load.

Is this a managed switch with VLAN or QoS?
No, this is an industrial unmanaged Gigabit PoE switch focused on power delivery and reliability rather than advanced management features.
