Industrial 4 Port Gigabit Solar PoE Switch - DC9~57V Redundant Power

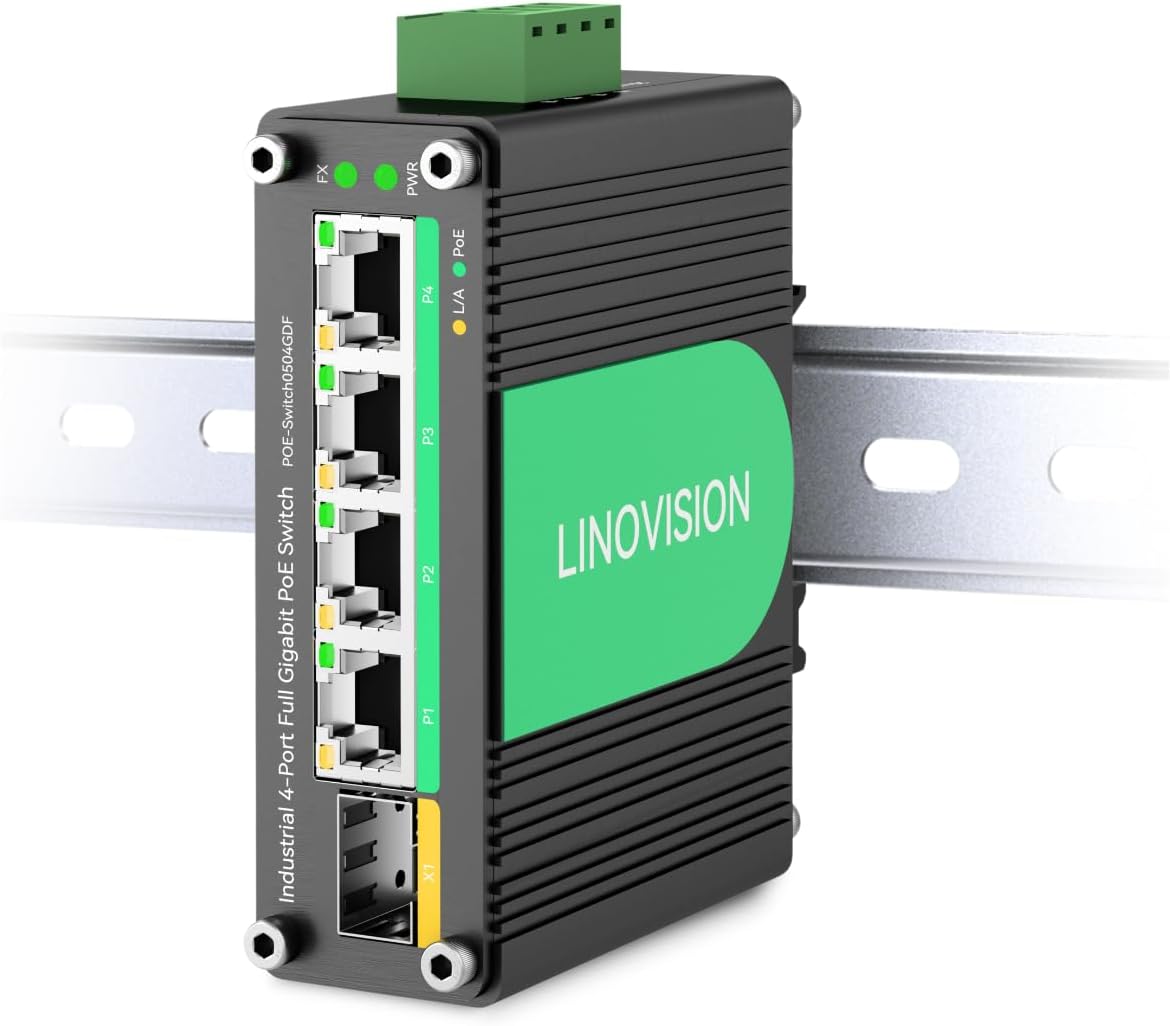

In this review the LINOVISION Industrial 4 Ports Gigabit Solar PoE Switch is presented as a compact, purpose-built option for off-grid and vehicle network installs; it is best for installers who need robust DC input range and reliable PoE power delivery. The single biggest reason to buy is its wide DC9~57V input with built-in voltage boosting and dual redundant inputs, which removes the need for additional converters in many solar, RV, or vehicle deployments and simplifies powering multiple IEEE802.3af/at devices from unconventional DC sources.

Key Features

• Wide DC Input: The DC9~57V input supports common solar and vehicle voltages so installers can use DC12V, DC24V or DC48V systems without extra converters.
• Full Gigabit Ports: Four 10/100/1000Base-T PoE ports provide gigabit connectivity for cameras and VoIP devices with a dedicated 1000Base-X SFP uplink for fiber connections.
• 120W PoE Budget: When fed by DC24V or DC48V the unit supplies up to 120W total to power multiple IEEE802.3af/at devices reliably on the same switch.
• Redundant Power Inputs: Dual DC inputs with auto failover increase network uptime in mobile or remote installations where power sources can be intermittent.
• Industrial Build: Rugged IP40 metal enclosure with DIN-rail and wall mounting and a wide -40C to 85C operating range suits harsh environments.

Who It's For

The switch is aimed at technicians and DIY integrators deploying IP cameras, VoIP phones, access control, or small network segments in solar-powered sites, RVs, trucks, or other vehicles where DC supply voltages vary. If you need a compact, metal-housed PoE switch that accepts vehicle and solar voltages and provides a fiber uplink option, this model is directly relevant.

Those who should look elsewhere include users who require Mode B PoE pinning (this unit supports Mode A only), or managers needing a fully managed switch with VLAN and QoS controls; this product is a hardware PoE switch focused on power delivery and ruggedness rather than advanced switching features.

Pros & Cons

Pros

• Robust DC9~57V input range removes the need for additional converters in many installations.
• High PoE budget of 120W on higher DC inputs allows powering multiple 802.3af/at devices simultaneously.
• Compact industrial chassis with DIN-rail and wall mount options is convenient for field installs.
• Gigabit ethernet plus SFP uplink gives flexible connectivity choices for fiber backhaul.

Cons

• Only supports Mode A PoE pinout, so some Mode B PDs will not be compatible without a different model.
• Some users reported mixed functionality and the unit can run warm under heavy load, so consider ventilation in tight enclosures.

Specifications

PoE Standard	IEEE802.3af/at
PoE Ports	4 x 10/100/1000Base-T
SFP Slot	1 x 1000Base-X (module not included)
Input Voltage	DC9~57V (built-in voltage booster)
Total PoE Budget	120W (DC24V/DC48V input) or 60W (DC12V input)
Mounting	DIN-rail & wall mount
Operating Temperature	-40C to 85C

Our Verdict

The LINOVISION Industrial 4 Port Gigabit Solar PoE Switch is a practical choice for installers who need a compact, rugged PoE solution that accepts a wide DC input range and supplies substantial PoE power without external converters. It represents good value for solar, vehicle, and remote access installations where simple, reliable power delivery and gigabit connectivity matter more than advanced managed switch features.

Frequently Asked Questions

Will this switch power 48V cameras?
Yes; when fed by DC48V input the switch can allocate PoE power to 48V PDs and supports up to a 120W total PoE budget.

Does it support both PoE Mode A and B?
The unit supports Mode A PoE pinout only; devices requiring Mode B will need a different model that lists Mode B compatibility.

Can the switch run from a solar battery or vehicle 12V source?
Yes; the DC9~57V input with built-in voltage booster allows operation from DC12V vehicle batteries and common solar system voltages, though total PoE budget is lower at DC12V input.
