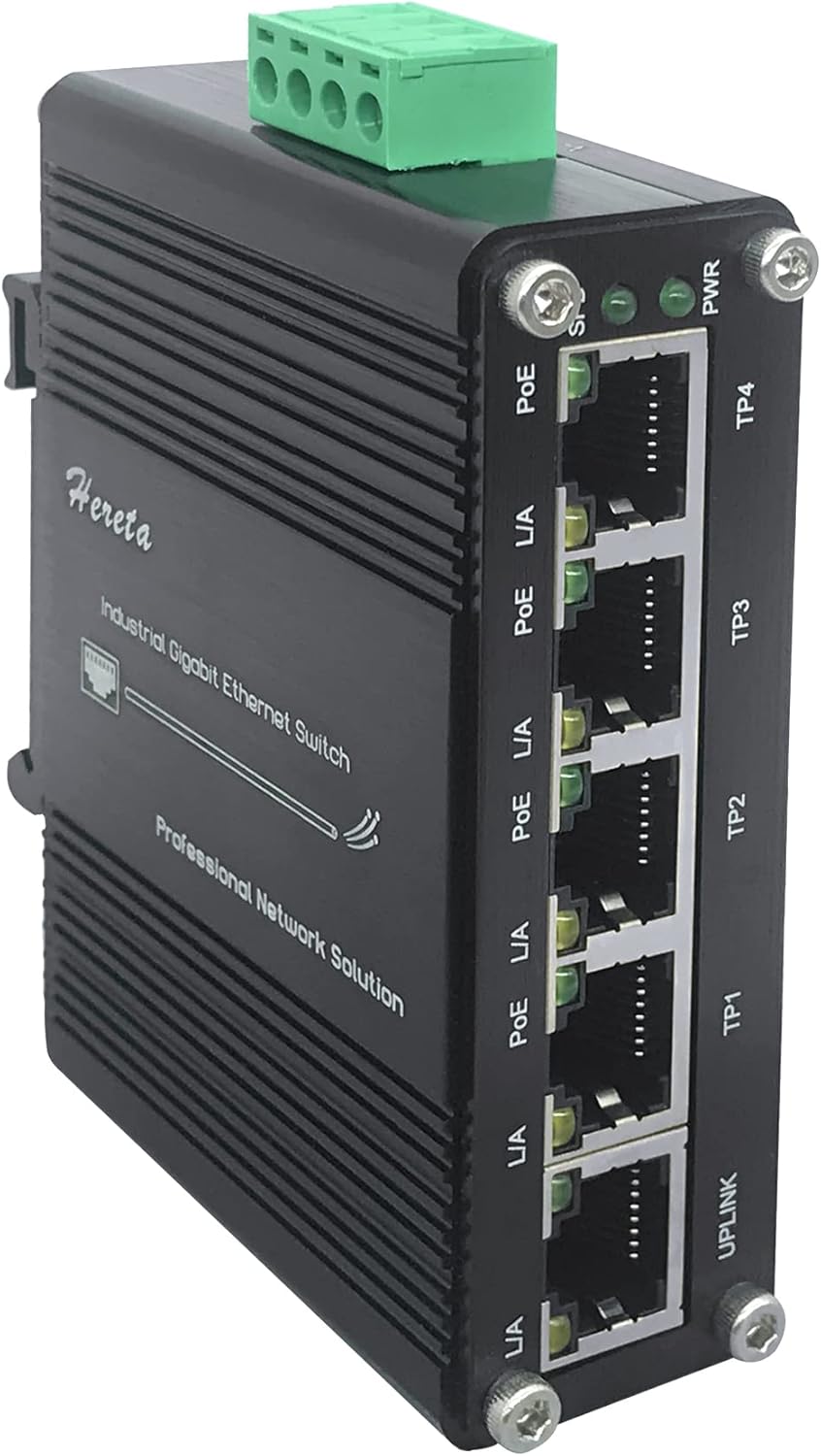

Industrial Gigabit Ethernet PoE+ Switch 5-Port - Compact Rugged

In this review the Industrial Gigabit Ethernet PoE+ Switch 5-Port is assessed for small industrial and remote-site networking where reliable power delivery and rugged construction matter most. The bottom line: this compact 5-port switch is for installers who need a hardened, DIN-rail mountable device that supplies PoE to cameras, access points, or VoIP phones while accepting a wide 12~48V DC input. Its single biggest selling point is the combination of a broad DC input range and a substantial PoE budget, which simplifies deployment in locations with nonstandard or variable power sources.

Key Features

• 5 Gigabit Ports: Four 10/100/1000BASE-T ports plus one uplink provide full gigabit connectivity for core devices and uplinks with auto-negotiation and auto MDI/MDIX to avoid cable headaches.
• Wide DC Input Range: Support for 12~48V DC terminal block power input lets installers feed the switch from many industrial power sources without extra converters.
• Generous PoE Budget: Up to 120 W at 48VDC (90 W at 24VDC, 60 W at 12VDC) allows powering multiple IP cameras or wireless access points from a single compact unit.
• Rugged Mounting Options: Included 35 mm DIN-rail bracket and wall mount hardware make it straightforward to install in panels, enclosures, or wall locations.
• Hardened Construction: Aluminum casing and IP40 dust protection with a wide operating temperature range provide durability for industrial or harsh environments.
• Standards and Flow Control: Compliance with energy efficient Ethernet (EEE) and 802.3x flow control helps maintain stable performance under mixed traffic loads.

Who It's For

This switch is aimed at network integrators, security installers, and operations teams who deploy IP cameras, wireless access points, or VoIP phones in factories, transport hubs, or remote buildings where power availability varies. The combination of a high PoE budget and 12~48V DC input makes it especially useful for sites powered by solar, battery banks, or legacy DC supplies.

It is less suitable for users who need managed switch features such as VLANs, QoS configuration, or SNMP monitoring; this product is an unmanaged, hardened edge device focused on reliable connectivity and power delivery rather than advanced traffic management.

Pros & Cons

Pros

• Wide 12~48V DC input range enables flexible power sourcing in industrial deployments.
• High PoE budget (up to 120 W at 48V) supports multiple powered devices without external injectors.
• Rugged aluminum case with DIN-rail and wall mount options for easy installation in control cabinets.
• Simple plug-and-play operation with auto-negotiation and MDI/MDIX reduces setup time.

Cons

• Unmanaged design means no VLANs or advanced configuration for complex networks.
• IP40 rating provides dust protection but requires enclosure for outdoor exposure or heavy contaminants.

Specifications

Ports	4 x 10/100/1000BASE-T RJ45 + 1 uplink RJ45
PoE Budget	Up to 120 W (48VDC), 90 W (24VDC), 60 W (12VDC)
Power Input	12~48V DC via terminal block
Mounting	35 mm DIN-rail and wall mount included
Enclosure	Aluminum case, dustproof IP40
Operating Temp	Approx -40F to 176F
Standards	IEEE 802.3az EEE, 802.3x flow control

Our Verdict

The Industrial Gigabit Ethernet PoE+ Switch 5-Port is a practical, cost-effective choice for field installations that need reliable power delivery and rugged hardware rather than advanced switch management. Installers who value a wide DC input range, solid PoE capacity, and easy DIN-rail mounting will find strong value here; just plan for an enclosure if the environment demands higher ingress protection.

Frequently Asked Questions

Can this switch power multiple IP cameras?
Yes. With up to 120 W PoE budget at 48VDC it can power several cameras or access points depending on each device's wattage.

Does it require special cables for gigabit links?
No. The RJ45 ports support auto-negotiation and auto MDI/MDIX so standard Cat5e or better cables provide gigabit links.

Is the switch suitable for outdoor use?
Not directly; the aluminum IP40 case offers dust protection but it should be mounted inside an appropriate outdoor enclosure for weather exposure.
