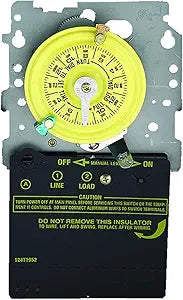

Intermatic T101M 24-Hour Mechanical Timer SPST Mechanism - Reliable

In this review of the Intermatic T101M 24-Hour Mechanical Timer SPST Mechanism the bottom line is straightforward: this is a focused replacement mechanism for installers and DIYers who need a dependable, hardwired timer for high-current AC loads. The reviewer found it most appealing for retrofit projects where the original T101 or T101R control is already in place and only the mechanism needs replacement. Its biggest selling point is the simple, robust SPST design rated for heavy loads up to 40 amps, making it a practical choice for lighting and motor loads where a proven mechanical timer is preferred over electronic alternatives.

Key Features

• 120 VAC compatibility: Works with standard household and light commercial 120 VAC circuits so it fits common electrical systems.
• SPST switch: Single Pole Single Throw wiring keeps installation straightforward with only Neutral, Line, and Load terminals used.
• 40 amp capacity: Rated to handle electrical loads up to 40 Amps, suitable for many heavy duty lighting and appliance circuits.
• Programmable operations: Allows 1 to 12 on/off operations each day with minimum one hour increments, giving predictable daily schedules.
• Manual override: Built-in manual override gives local control without changing timer programming when needed.
• Replacement compatibility: Mechanism fits into existing T101 or T101R enclosures so you can replace just the mechanism instead of the entire unit.

Who It's For

The Intermatic T101M is aimed at electricians, maintenance technicians, and informed homeowners who need a straightforward mechanical timer for schedule control of lighting, pumps, or HVAC-related loads within a 120 VAC system. Its high 40 amp rating makes it a good fit where heavier circuits are involved and where mechanical reliability is preferred over digital timers.

It is not ideal for users who require minute-level scheduling, complex multi-event programming, or remote connectivity. If you need multiple circuits controlled independently or a 24-hour digital precision schedule, consider electronic or multi-pole alternatives instead of this single SPST mechanism.

Pros & Cons

Pros

• Simple SPST terminal layout reduces wiring mistakes during replacement or repair.
• High 40 Amp rating covers many heavy duty loads that lighter timers cannot handle.
• Fits existing T101 and T101R enclosures so replacement is fast and cost effective.
• Mechanical design with manual override is reliable and easy to use without programming menus.

Cons

• Minimum on/off increment of 1 hour limits fine-grain scheduling and flexibility.
• As a mechanism-only unit it requires the correct enclosure and basic wiring skills for safe installation.

Specifications

Brand	Intermatic
Voltage	120 VAC
Switch Type	SPST (Single Pole Single Throw)
Maximum Load	Up to 40 Amps
Daily Operations	1 to 12 on/off operations per day
Minimum On/Off	1 hour
Includes	One On and one Off tripper; mechanism only

Our Verdict

The Intermatic T101M mechanism is a practical, value-oriented replacement part for existing T101/T101R installations and for anyone who needs a rugged, high-current mechanical timer. It excels where simplicity, reliability, and a 40 Amp capacity matter, but it is not the choice for precise or networked scheduling. For retrofit and heavy-duty single-circuit control this is a sensible buy.

Frequently Asked Questions

Can this unit replace an existing T101 or T101R?
Yes, the mechanism is designed to fit into T101 or T101R enclosures so you can replace just the mechanism without buying a whole new unit.

How many wiring terminals are used?
For SPST installations only three terminals are used: Neutral, Line, and Load; second line/load terminals on the insulator cover are not used.

What is the minimum on/off time?
The timer requires a minimum on or off interval of 1 hour and supports 1 to 12 operations per day.
