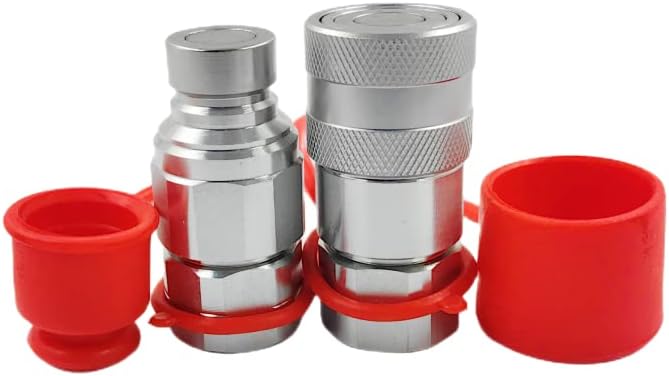

ISO16028 3/4ft NPT Skid Steer Flat Face Hydraulic Quick Connect

In this review the ISO16028 3/4' NPT flat face quick connect coupler set is evaluated for mechanics and owners who need reliable hydraulic connections for skid steer attachments. The bottom line: this set is for people who want a heavy duty, low-leak coupling that threads on easily and stands up to repeated service. The review finds the steel, zinc plated construction and new valve design deliver durable, leak-resistant performance that suits Bobcat-style implements and general hydraulic work.

Key Features

• Multiple size options: Available choices make it simple to pick the correct 1/2', 1/4', 3/4' NPT or SAE 3/8' variant for common skid steer and hose fittings.
• New valve design: The updated internal valve resists damage from high flow and pressure impulses, improving reliability in aggressive hydraulic systems.
• Robust construction: Steel body with zinc plating and yellow chromate finish plus hardened nipples and sleeves provide strong resistance to hydraulic and mechanical shock.
• Sleeve locking mechanism: The rotating sleeve locks after connection and keeps dirt out of the internal mechanism to reduce accidental disconnects and contamination.
• Interchangeable standard: Conforms to ISO16028 and is compatible with a wide range of industry series for straightforward replacement on many machines.
• Flush valving: The LX-FF style flush valving reduces spillage when connecting or disconnecting, useful during frequent tool swaps.

Who It's For

The set is well suited to contractors, rental shops and owner-operators who fit hydraulic attachments to skid steers and small earthmoving equipment and need a durable, leak-resistant coupling that matches common standards. The steel build and high PSI rating make it a practical choice for regular field use where connections are made and broken frequently.

Buyers who require a specialized swivel under constant rotation or a nonstandard thread should look elsewhere, since these couplings are not intended to be used as swivels and rotation under pressure will cause premature wear. Also choose carefully among the offered size combinations to match your existing threads.

Pros & Cons

Pros

• Durable steel construction with hardened components offers strong resistance to physical and hydraulic shock.
• Easy installation and reliable connection quality with low leak tendency reported by users.
• Sleeve lock and dust seal reduce accidental disconnection and keep contaminants out of the valve area.
• Interchangeable with many common OEM series for direct replacement compatibility.

Cons

• Not designed to act as a swivel; rotation under pressure will accelerate wear and is a realistic limitation to note.
• Buyers must select the correct size option carefully since multiple size sets are offered.

Specifications

Body size	3/4'
Thread size	3/4' NPT (select option may vary)
PSI rating	5,000
Flow rate	12 to 23 GPM
Face diameters	Male 0.96' (24.5mm), Female 1.49' (38mm)
Finish	Zinc plated with yellow chromate
Standard	ISO16028 compatible

Our Verdict

The ISO16028 3/4' NPT skid steer flat face quick connect set is a sensible buy for anyone needing a sturdy, leak-resistant coupling compatible with Bobcat-style attachments and other common series. Its heavy duty construction, effective sleeve lock and improved valve design deliver good long-term value for routine hydraulic work, provided the user selects the correct size and avoids using it as a swivel.

Frequently Asked Questions

Are these couplers compatible with Bobcat attachments?
Yes, customers report they fit Bobcat-style quick disconnects and other ISO16028-compliant fittings when the correct thread option is chosen.

Can these be used as swivels?
No, these couplings are not intended to be used as swivels; rotating under pressure will cause premature wear.

Do they leak under normal use?
Users report good leak resistance and reliable connections when properly installed and matched to the correct thread size.
