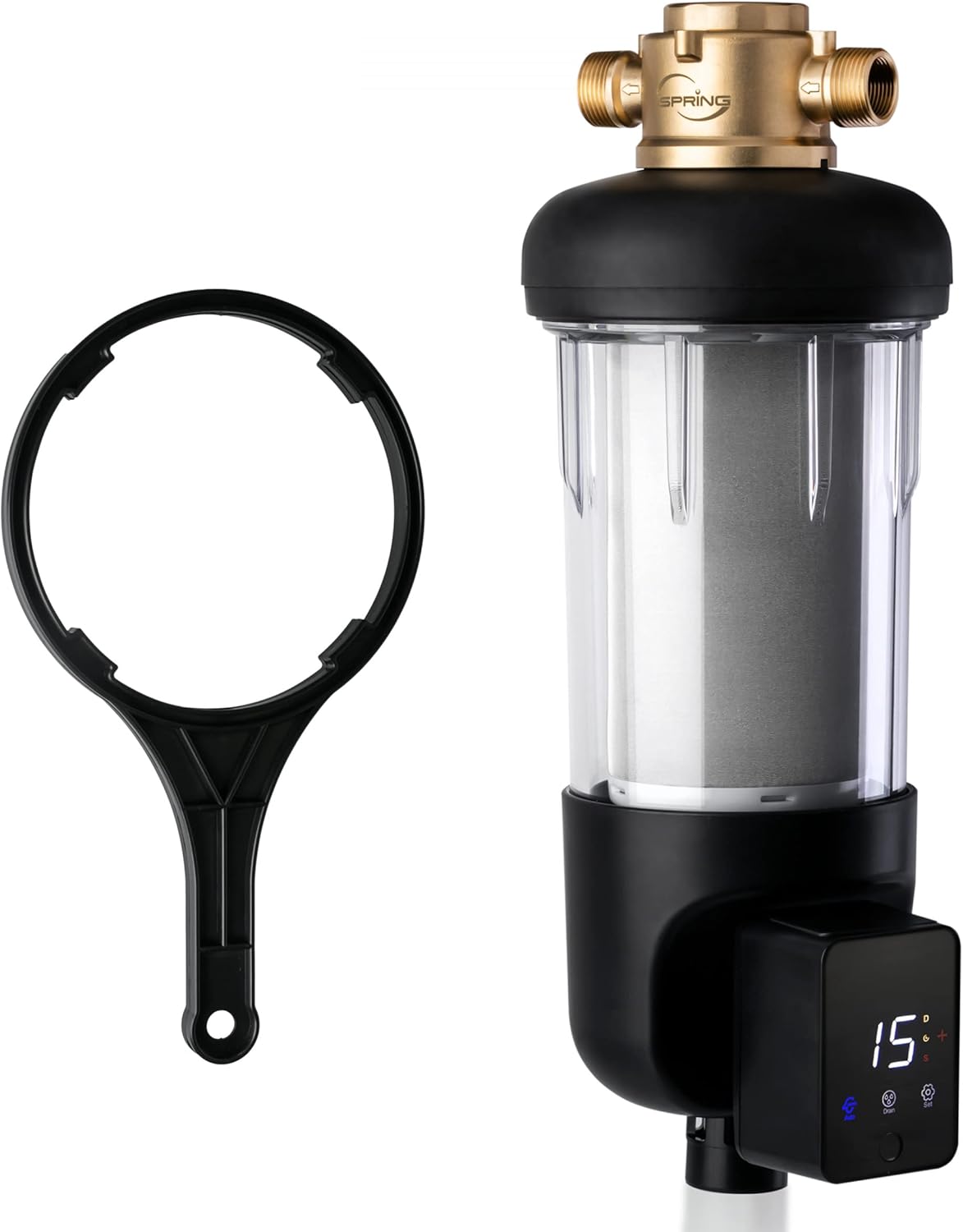

iSpring WSP500ARJ Spin-Down Sediment Water Filter - Jumbo Capacity

In this review the iSpring WSP500ARJ is assessed as a heavy-duty whole house pre-filter best suited for homes with well or heavily sedimented water. The bottom line: it is a robust, reusable spin-down sediment filter with a large 1-gallon bowl and a 500-micron stainless steel screen that removes most large particulates and protects downstream equipment. The integrated touch-screen auto flushing module makes routine maintenance straightforward, so households that want less frequent cartridge replacements will appreciate this system.

Key Features

• Lead-free certified: NSF/ANSI 372 certification confirms the unit is lead-free, supporting safer water at the point of entry.
• Jumbo capacity: The 1-gallon clear housing holds far more sediment than standard spin-down filters, reducing how often the bowl needs attention.
• High flow capability: A maximum flow rate of up to 25 GPM allows installation on larger lines and supports multiple fixtures without significant pressure loss.
• 500-micron stainless screen: The 316L precision mesh filters out up to 99% of large particulates like sand, rust, and dirt to protect downstream appliances.
• Auto flushing module: The HD touch-screen controller offers auto, semi-auto, and manual flush modes to automate routine flushing and cut maintenance time.
• Durable construction: Brass top, explosion-proof clear housing, and pressure-tested components deliver long-term reliability under high pressure conditions.

Who It's For

This filter is aimed at homeowners with private wells or municipal supplies that carry visible sediment, rust, or sand. It is especially useful for properties that need a rugged pre-filter to protect water heaters, filters downstream, washing machines, and other appliances from abrasive particles.

Those who should look elsewhere include buyers who need very fine particulate removal for drinking water at the tap or who require a compact under-sink solution; this model is designed as a whole-house pre-filter rather than a point-of-use purifier.

Pros & Cons

Pros

• Large 1-gallon bowl and 500-micron 316L stainless screen extend service intervals and protect downstream equipment.
• Integrated touch-screen auto flush module streamlines maintenance with selectable auto, semi-auto, and manual modes.
• High 25 GPM flow rate and universal fittings make it adaptable for whole-house installations and higher demand systems.
• Clear, explosion-proof housing and brass top provide durability and easy visual inspection of collected sediment.

Cons

• At 500 microns, it removes large particulates but will not address fine sediment or dissolved contaminants that need finer filtration.
• The unit is sizable and intended for main-line installation, so it is not suited as an under-sink point-of-use filter.

Specifications

Filter type	Spin-down sediment pre-filter
Filter screen	500 micron, 316L stainless steel mesh
Capacity	1 gallon bowl (jumbo size)
Max flow rate	Up to 25 GPM
Connections	1-inch MNPT and 3/4-inch FNPT thread options
Certifications	NSF/ANSI 372 lead-free certified
Construction	Brass top, clear explosion-proof housing

Our Verdict

The iSpring WSP500ARJ is a solid, high-capacity sediment pre-filter that delivers strong value for homes with heavy particulate loads. Its reusable 500-micron screen, large bowl, and programmable auto flush reduce downstream wear and lower operating costs, making it a smart buy for well owners and anyone wanting a low-maintenance whole-house pre-filter solution.

Frequently Asked Questions

Can this filter handle well water with sand?
Yes, the 500-micron stainless screen is effective at removing sand, rust, and large particulate before they reach downstream appliances.

How does the auto flush work?
The integrated module offers auto, semi-auto, and manual modes via an HD touch screen so the system can flush on a preset schedule or be triggered when needed.

Is the filter reusable?
Yes, the stainless mesh is flushable and can be cleaned with a soft brush to extend service life and reduce replacement costs.
