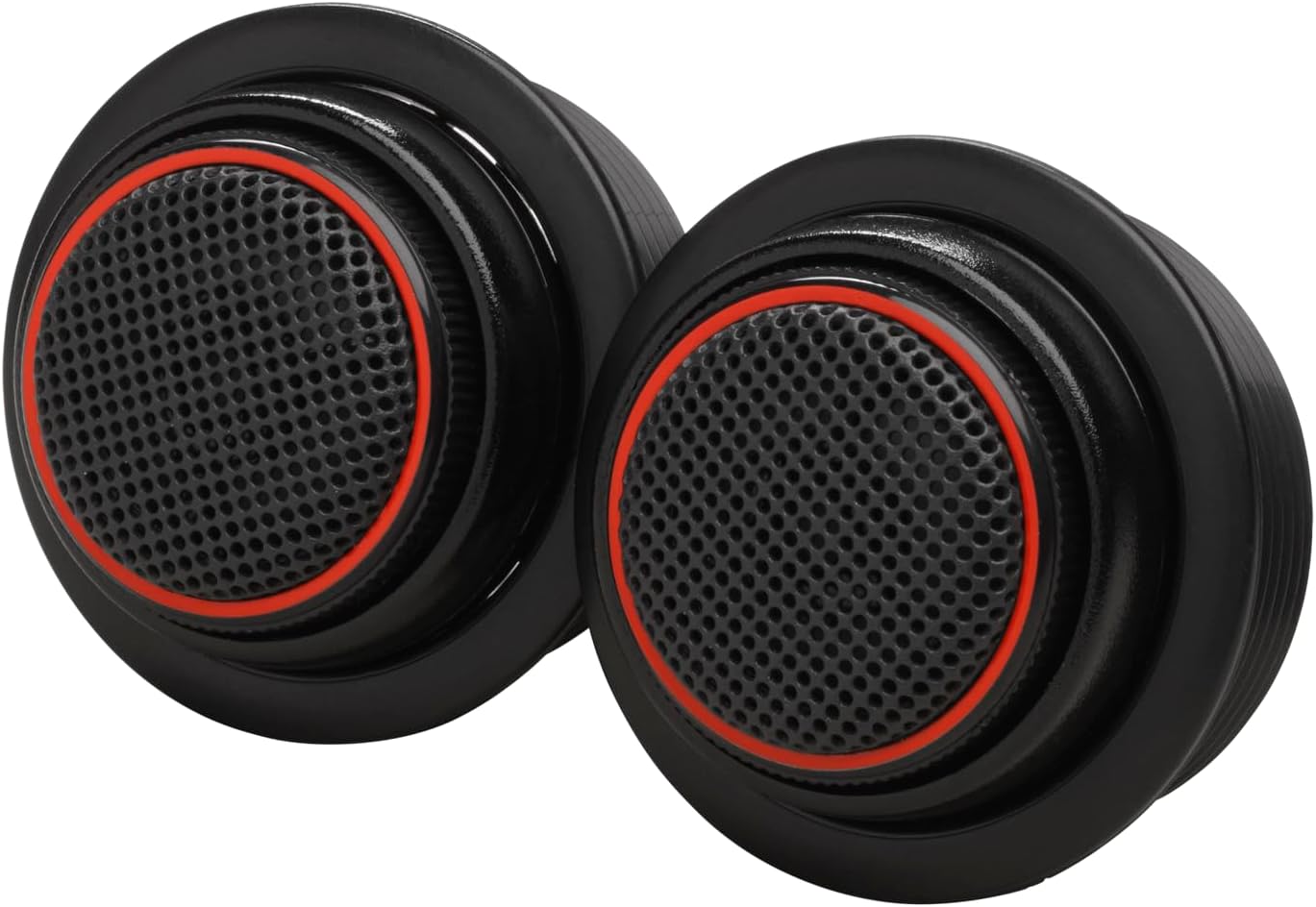

JBL Club 194T 3/4ft Edge-Driven Dome Tweeter - Smooth Highs

Our review of the JBL Club 194T finds it to be a compact, high-efficiency tweeter aimed at drivers who want clearer highs without replacing an entire system. The 3/4' edge-driven silk dome and 92dB sensitivity deliver crisp, open treble that pairs well with modest factory amplifiers, while the 150W peak handling provides headroom for dynamic passages. Installation is straightforward thanks to the Starfish adapter and the I-Mount system, so installers and DIYers who need a small, durable tweeter with smooth frequency extension will appreciate this upgrade.

Key Features

• Edge-driven silk dome: Delivers broader and smoother high-frequency response for clear vocals and cymbals without harshness.
• High sensitivity: At 92dB sensitivity the tweeter produces loud, detailed highs even with modest factory head units and low power.
• Wide frequency response: The 3kHz to 20kHz range covers essential upper-mid and treble detail for improved clarity and imaging.
• Starfish tweeter adapter: Allows mounting behind factory grilles and offers six break-off tabs to fit a variety of factory locations.
• I-Mount system: Includes flush cup and surface-mount hardware and needs only a 1-3/4' cutout with 1' mounting depth for flexible installation.
• Durable design: Built to fit many vehicles and resist typical cabin conditions while delivering consistent performance.

Who It's For

The JBL Club 194T is best for drivers upgrading their factory speakers who want a clear, non-fatiguing treble and an easy install. It suits people using factory head units or low-power amplifiers because the 92dB sensitivity maximizes output without extra power.

Those who need full-range replacement speakers, large-format components, or extreme power handling should look elsewhere; this tweeter is a dedicated high-frequency driver meant to work as part of a component or coaxial system rather than a stand-alone full-range solution.

Pros & Cons

Pros

• High sensitivity produces clear, loud highs on modest systems.
• Edge-driven silk dome keeps treble smooth at higher output levels.
• Flexible mounting with Starfish adapter and I-Mount makes installation straightforward behind grilles or in custom locations.
• Compact size fits into tight spaces where larger tweeters cannot.

Cons

• Nominal impedance of 3.0 ohms may load some factory amps differently than standard 4 or 8 ohm drivers.
• As a small tweeter it requires pairing with appropriate midbass drivers for full-range sound; it is not a complete speaker solution by itself.

Specifications

Tweeter diameter	3/4' (19mm)
Tweeter type	Edge-driven silk dome
Power handling	150W peak, 50W RMS
Sensitivity	92dB (at 2.83V)
Frequency response	3kHz to 20kHz
Nominal impedance	3.0 ohms
Mounting	Starfish adapter and I-Mount system (1-3/4' cutout, 1' depth)

Our Verdict

The JBL Club 194T is a practical, value-driven tweeter for anyone wanting smoother, more detailed highs without adding amplification. Its combination of high sensitivity, silk dome character, and flexible mounting makes it an excellent upgrade for factory systems and compact component installs, provided you pair it with proper mids for full-range sound.

Frequently Asked Questions

Will this tweeter work with factory head units?
The 92dB sensitivity means it pairs well with factory head units and low-power systems, producing usable volume and clarity without extra amplification.

Can it be installed behind factory grilles?
Yes. The Starfish tweeter mounting adapter is designed to allow installation behind factory grilles and provides six break-off tabs for different mounting positions.

What cutout and depth are required?
The I-Mount system requires a 1-3/4' cutout and about 1' of mounting depth for flush installation.
