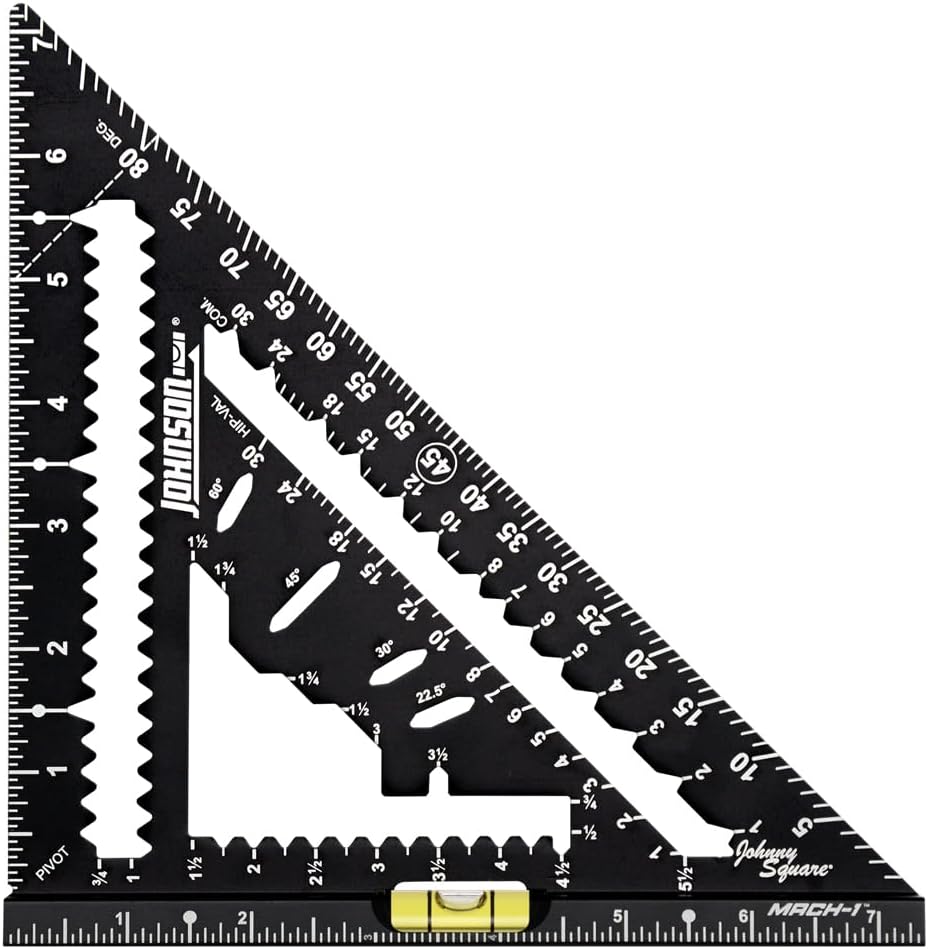

Johnny Square MACH-1 Smart Mark Rafter Square with Level Vial

In this review the Johnny Square MACH-1 rafter square is evaluated for framers, carpenters and DIYers who need faster, repeatable layout work. The bottom line: this tool's Smart Mark cutout and clearly positioned notches make common stud, joist and post layouts quicker and more accurate than a plain aluminum square, while the integrated level vial replaces a separate torpedo level for many tasks. It is best for users who value speed and precision in marking and scribing and who work frequently with 1x, 2x, LVL and common roof pitches.

Key Features

• Smart Mark cutout: Speed and accuracy are improved by cutouts and notches that align pencil marks at critical dimensions without guessing.
• Multiple layout marks: Marking spaces cover 1 in to 6 in lumber and LVL widths for fast layout of studs, joists and posts without flipping rulers.
• Angle slots and V-notches: Built-in 22.5, 30, 45 and 60 degree slots plus V-notches help mark common angle cuts and roof pitches with consistent alignment.
• Integrated level vial: A built-in vial with wide visibility indicates level and plumb and can measure angle or roof pitch on existing structures.
• Full-width scale: 1/16 in graduations extend to 7-1/4 in so you can scribe across the full width of common framing materials like 2x8.

Who It's For

The Johnny Square MACH-1 is aimed at professional framers, carpenters and experienced DIYers who do repetitive layout work and need to shave time from marking studs, LVL and post cuts. The combination of notches, angle slots and a level vial is especially useful on job sites where carrying fewer separate tools improves efficiency.

Those who should look elsewhere include users who need corrosion-resistant or fully hardened steel squares for heavy striking or prying, or anyone who wants laser guides or digital readouts; this is a precision aluminum layout tool focused on marking and scribing rather than power or electronic measurement.

Pros & Cons

Pros

• Smart Mark cutouts and notches speed common layouts and reduce marking errors.
• Clearly positioned marks for 1x, 2x, LVL and post layouts make repetitive work consistent.
• Built-in level vial adds versatility and can replace a small torpedo level in many tasks.
• Full 1/16 in graduations to 7-1/4 in give precise scribe capability across wider boards.

Cons

• Some users report the finish and markings scratch more easily than heavier squares, so it shows wear under tough job site use.
• The tool is focused on layout and scribing and does not replace hardened framing squares for heavy striking or alignment under load.

Specifications

Our Verdict

The Johnny Square MACH-1 is a smartly designed layout square that delivers real time savings for carpenters and framers thanks to its Smart Mark cutout and integrated level vial. It offers strong value for anyone who marks and scribes studs, LVL and common roof pitches frequently, though those needing hardened striking tools should consider a traditional steel square instead.

Frequently Asked Questions

Can this replace a torpedo level?
The built-in vial provides level and plumb indication and can replace a small torpedo level for many marking and pitch checks.

Which lumber widths does it mark?
It includes marked cutouts for 1 in to 6 in lumber, common 2x and 4x post sizes and LVL widths like 1-3/4 in and 3-1/2 in.

Is it suitable for angle layout?
Yes; it has dedicated 22.5, 30, 45 and 60 degree slots and V-notches for common angle and roof pitch markings.
