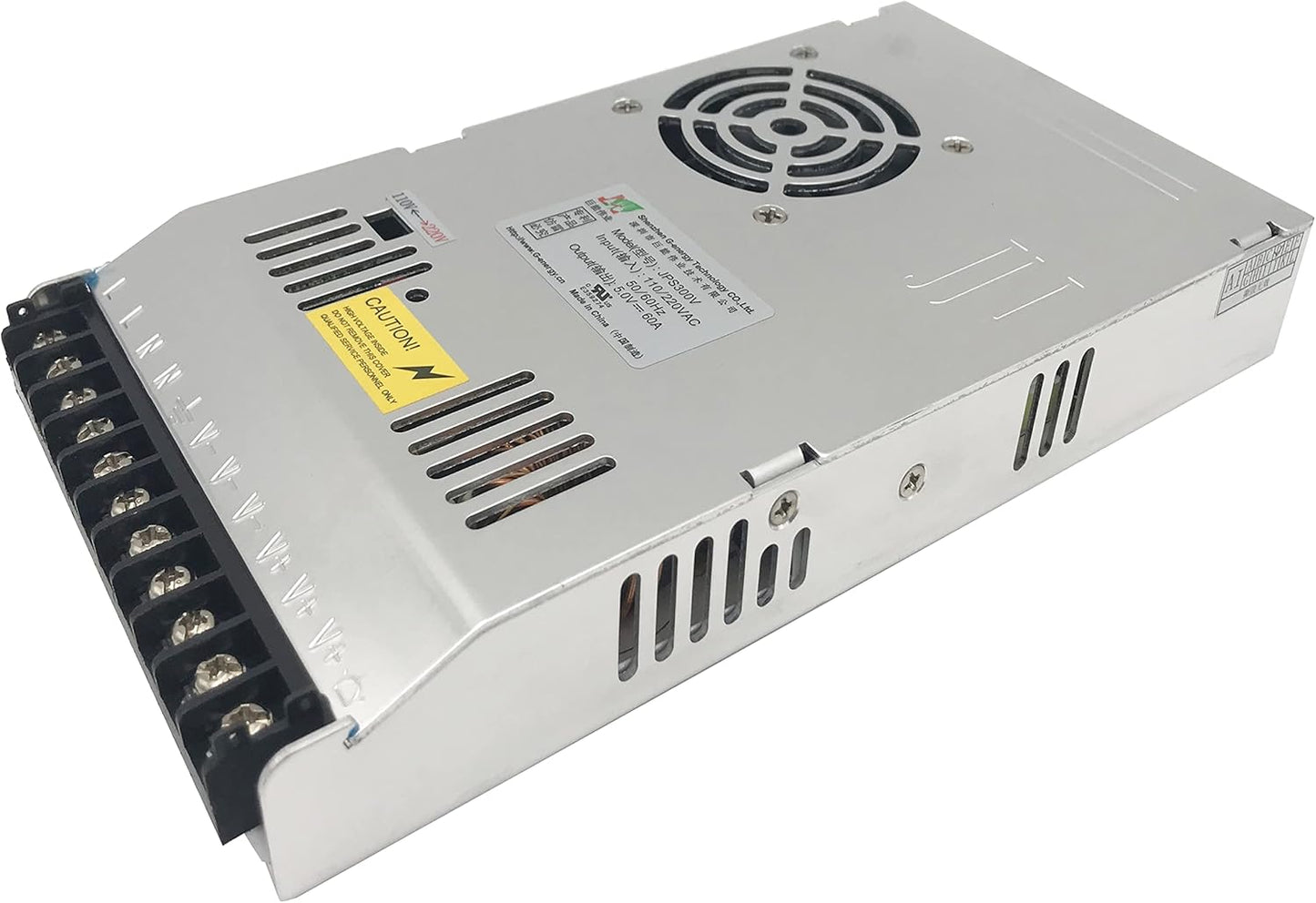

JPS300V G-Energy 5V 60A 300W Power Supply JPS300V - Reliable 300W DC

Our review of the JPS300V G-Energy power supply finds it is a solid choice for projects and systems that need a dependable 5V, 60A, 300W DC source. It is aimed at integrators, bench technicians and small server or embedded system builders who value a compact, high-output internal supply with built-in safety protections. The single biggest reason to buy is the combination of a genuine 300W maximum output with multiple protection functions and self-cooling operation, which simplifies installation where active cooling is not practical.

Key Features

• 300W maximum output: Delivers up to 5V at 60A for high-current 5V rails used by embedded controllers, communication gear, or small server boards.
• Wide input range: Accepts 200-240 VAC at 47-63 Hz so it fits common international mains in commercial and industrial settings.
• Safety and insulation: Meets GB4943 and EN60950 standards with specified I/P-O/P and FG insulation voltages for safer installations.
• Multiple protections: Built-in input voltage monitoring, overload protection and short circuit protection reduce risk to connected devices and simplify system design.
• Self-cooling thermal design: Heat dissipation via self-cooling eliminates the need for system fan placement in many applications, reducing noise and maintenance.
• Low leakage current: Leakage below 1 mA at 230 VAC supports safer grounding behavior in sensitive installations.

Who It's For

The JPS300V is best for technicians, hobbyists and small-system integrators who need a compact, high-current 5V supply that can be mounted inside equipment or on a chassis. Its size and self-cooling design make it a practical option for rack-mount adapters, industrial controllers, LED drivers or single-rail server systems that draw substantial 5V current.

Users who require fully regulated multi-rail outputs, programmable power sequencing, or operation outside the specified -30 C to 50 C working range should consider other power supplies. It is also less appropriate where forced-air cooling is mandatory for higher ambient temperatures or enclosure constraints.

Pros & Cons

Pros

• High continuous output of 300W at 5V 60A supports demanding 5V loads.
• Self-cooling design reduces the need for additional fans and simplifies integration.
• Comprehensive protections including overload and short circuit protection improve system safety.
• Low leakage current and compliance with EN60950/GB4943 add confidence for commercial installations.

Cons

• Limited to a single 5V output, so systems needing multiple voltages must use additional converters.
• Working temperature tops at 50 C, which may limit placement in very hot enclosures without extra cooling.

Specifications

Output power	300W Max
Output voltage / current	5V, 60A
Input voltage	200-240 VAC, 47-63 Hz
Leakage current	<1 mA (Vin 230)
Working temperature	-30 C to 50 C
Storage temperature	-40 C to 80 C
Size (L x W x H)	217 x 117 x 30 mm

Our Verdict

The JPS300V G-Energy 5V 60A supply is a practical, value-oriented choice when a robust single-rail 5V source is needed. Its 300W capability, safety standards and self-cooling make it especially useful for integrated equipment where space and noise matter. Buyers who need multiple rails or wider operating temperature should evaluate alternatives, but for dedicated high-current 5V applications this unit offers reliable performance and sensible protections.

Frequently Asked Questions

Is this power supply fanless?
Yes. The unit uses a self-cooling design rather than an internal fan, reducing noise and maintenance.

What protections are included?
The JPS300V includes input voltage monitoring, overload protection and short circuit protection to protect connected equipment.

Can it run outdoors or in high heat?
It is rated for -30 C to 50 C operation; outdoor or high-temperature deployments above 50 C require additional cooling or a different supply.
