JST Connector Crimping Tool Kit - Complete 2.5 mm Connector Set

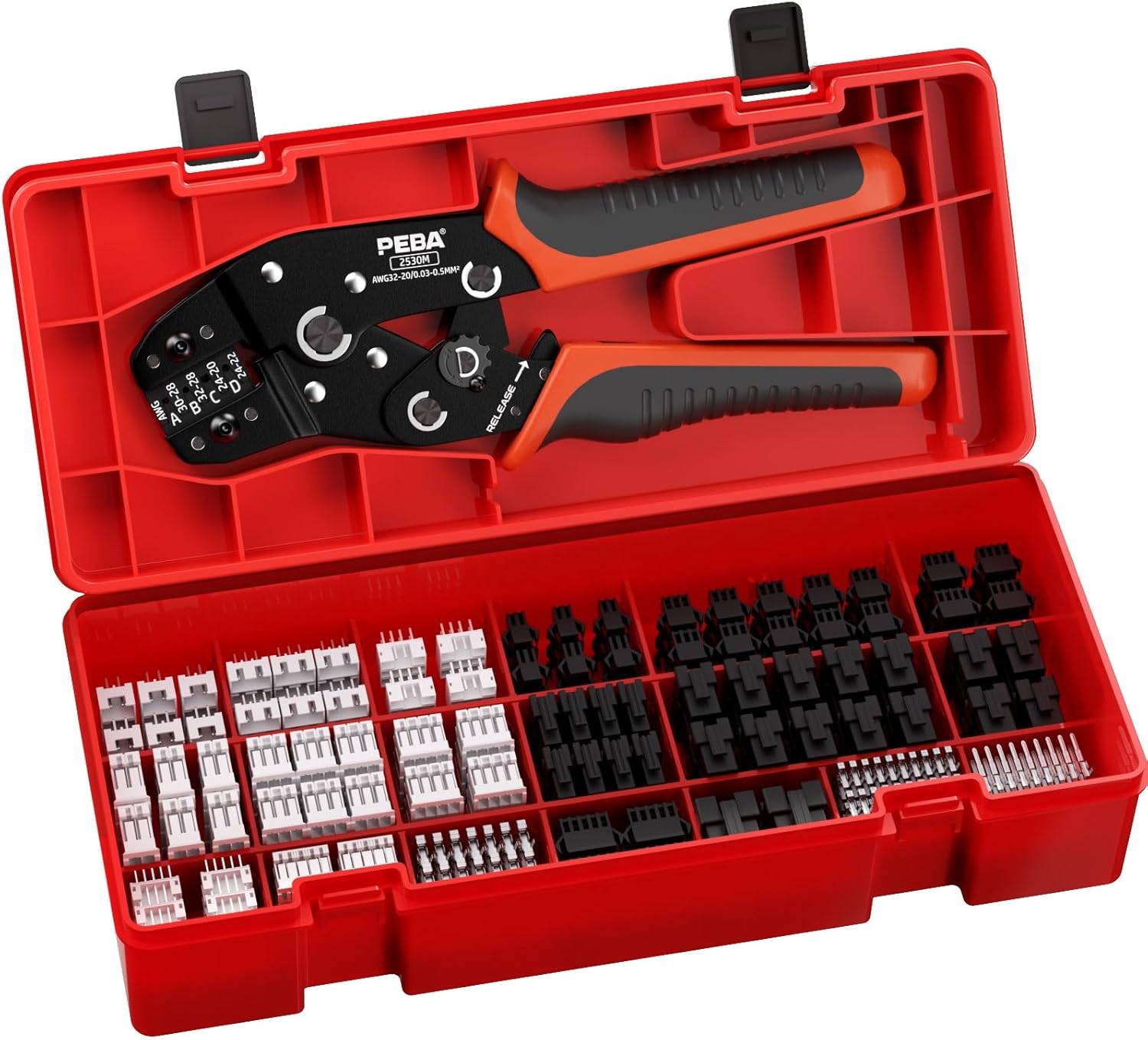

Our review of this JST connector crimping kit finds it best suited for DIY electronics builders and small workshop professionals who need a ready-to-use connector and crimping solution. The kit includes a PEBA 2530M ratchet crimping tool and a wide assortment of 2.5 mm JST-XH and JST-SM connectors, making it easy to start wiring projects without hunting for parts. The single biggest reason to buy is the combination of a precision ratchet crimper with adjustable force and a well organized toolbox of housings and crimp pins that covers AWG 32-20 applications.

Key Features

• Complete kit: Includes the PEBA 2530M ratchet crimping tool plus 19 types of JST-XH and JST-SM 2.5 mm connectors so users can begin work straight away without sourcing extra parts.
• Precision ratchet mechanism: The adjustable crimp force and quick-release lever deliver consistent crimps for reliable electrical contacts on delicate wiring.
• EDM-cut jaws: Precisely cut jaws ensure repeatable crimps across the supported wire range, reducing the chance of poor terminations on fine AWG wires.
• Four dual crimp stations: Dual stations crimp conductor and insulation in a single operation, speeding up assembly for micro and standard pitch connectors.
• Durable components: Nickel-plated pins and insulated housings resist corrosion and meet safety expectations for hobby and light industrial use.
• Wide compatibility: Works with common connector families like JST-XH, JST-SM, PH 2.0 mm, KK 2.54 and similar series so one tool covers many projects.

Who It's For

This kit is ideal for electronics hobbyists, 3D printer builders, RC modelers, and light professional repair technicians who regularly assemble or repair wire harnesses and need a handheld crimper plus a broad set of 2.5 mm connectors. The included toolbox and assortment save time during prototyping and small production runs.

Those who should look elsewhere include users who require a dedicated high-volume bench crimper for manufacturing or who need connectors outside the listed pitch and AWG ranges; the tool is targeted at AWG 32-20 and general-purpose connector types rather than heavy industrial terminals.

Pros & Cons

Pros

• Well matched kit of crimper and a wide variety of 2.5 mm housings and pins for immediate use.
• Ratchet action and adjustable force promote consistent, repeatable crimps for delicate wires.
• Dual crimp stations and EDM-cut jaws increase speed and accuracy when making multiple terminations.
• Nickel-plated contacts and insulated housings enhance durability and safety in finished assemblies.

Cons

• Some users report occasional issues with handle attachment and mixed feedback on crimping strength, so check tool integrity before heavy use.

Specifications

Tool model	PEBA 2530M ratchet crimping tool
Connector types included	JST-XH and JST-SM 2.5 mm housings and pins (19 types)
Wire range	AWG 32-20 (0.03-0.5 mm2)
Crimp stations	4 dual crimping stations (wire and insulation)
Jaw type	EDM-cut jaws
Contact plating	Nickel-plated male/female pins
Storage	Durable toolbox for organized storage

Our Verdict

The PEBA JST connector crimping kit is a strong value for hobbyists and small shop users who want a single, versatile tool plus a broad set of 2.5 mm connectors. Its ratchet mechanism, adjustable force, and organized storage make it especially useful for consistent results in prototyping, repairs, and small runs. Buyers seeking industrial bench equipment or larger gauge crimping should consider a specialized alternative.

Frequently Asked Questions

Does this kit handle fine AWG wires?
The crimper supports AWG 32-20 (0.03-0.5 mm2), making it suitable for fine to small gauge wiring common in electronics.

Are the connector pins corrosion resistant?
The kit uses nickel-plated male and female pins that resist corrosion and oxidation for reliable electrical contacts.

Can this tool crimp other connector families?
Yes, the design is compatible with a range of small connector families such as PH 2.0 mm and KK 2.54, though it is optimized for 2.5 mm JST-XH and JST-SM types.
