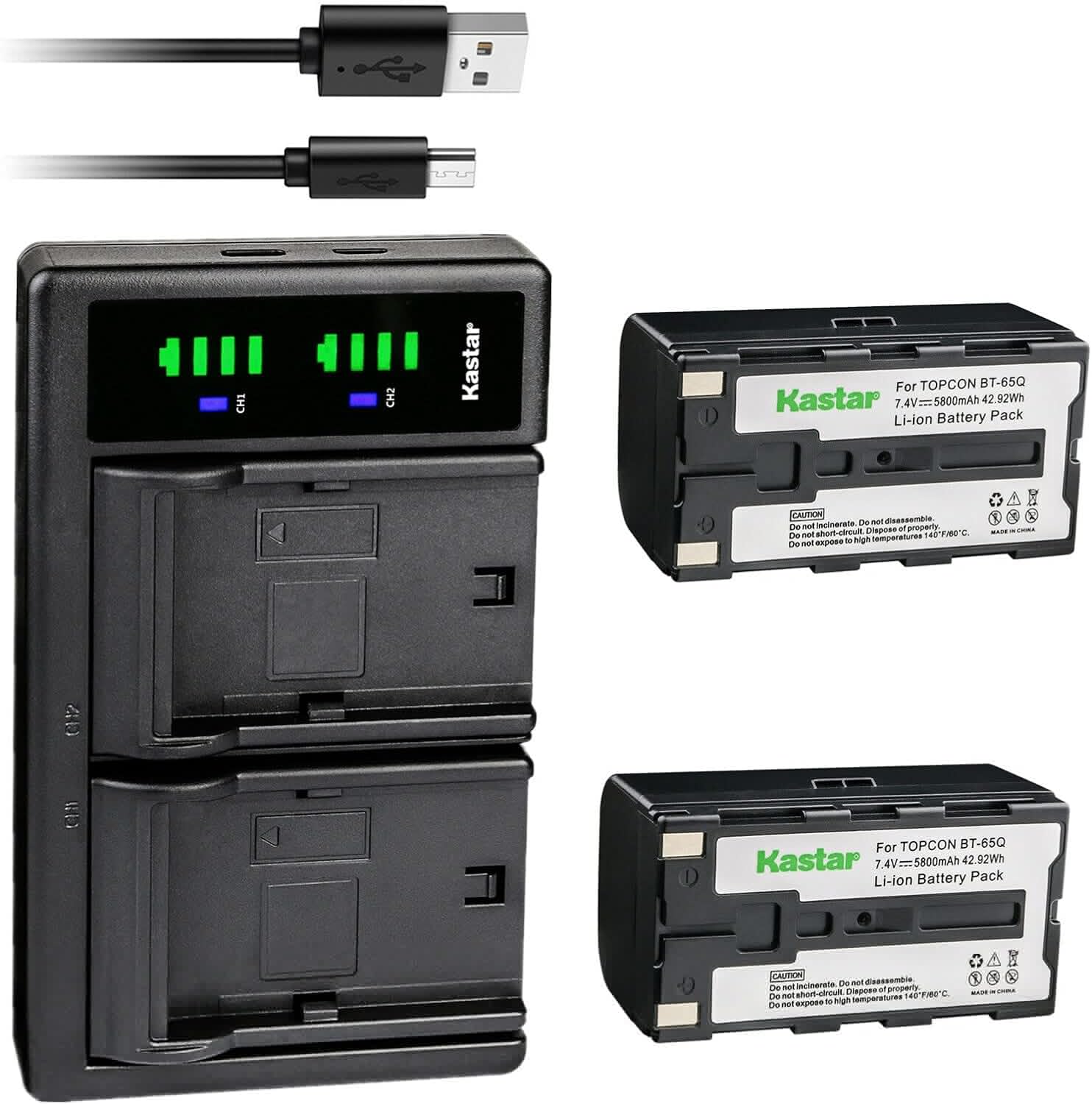

Kastar 2-Pack Battery and USB Charger Replacement for Topcon BT Series

In this review the Kastar 2-Pack Battery and LTD2 USB Charger is judged as a practical, no-nonsense replacement for Topcon BT series users who need reliable runtime and flexible charging in the field. The package includes two 7.4V lithium-ion batteries rated at 5800mAh plus a dual-slot charger that can accept two cells at once or swap plates for different battery shapes. For surveyors and technicians who already own Topcon FC and GPT series total stations, the main reason to buy is the combination of long battery capacity and a compact USB-powered charger that fits modern workflows.

Key Features

• High capacity cells: Each 5800mAh lithium-ion battery delivers extended operating time for survey instruments, reducing the need to swap packs frequently on long jobs.
• Dual charging: The charger can charge two batteries at the same time, which speeds turnaround when multiple packs are used across a job site.
• Interchangeable plate: The charger plate can be changed to accept different battery shapes, adding compatibility with multiple Topcon battery styles.
• USB power input: With Micro-USB and Type-C input options and a 5V 2-3A 15W input spec, the charger is easy to power from power banks or vehicle adapters on site.
• Intelligent LED display: Dual LED indicators show charging status and approximate battery capacity so users can plan swaps and avoid surprises.

Who It's For

The Kastar pack is best for surveyors, instrument technicians, and field crews who use Topcon total stations such as the FC-200, FC-2500, GPT-7000i, or GTS series and need ready replacements that match the BT-60Q through BT-66Q battery family. The dual charger and USB inputs make it convenient for teams that travel or work from vehicles and job trailers.

Users who need original manufacturer warranty coverage or strict factory-certified parts for mission-critical installations should check manufacturer policies first; while this replacement targets compatibility and cost savings, organizations that require factory service or certified batteries may prefer OEM batteries and chargers.

Pros & Cons

Pros

• Long 5800mAh capacity gives extended instrument run time between charges.
• Can charge two batteries simultaneously, reducing downtime for busy crews.
• USB input and included Micro-USB cable make it easy to recharge from common power sources in the field.
• Interchangeable plate increases compatibility across Topcon battery styles.

Cons

• Not an OEM Topcon part, so organizations requiring factory-certified batteries should verify acceptance before purchase.
• Charger output is limited to 800mA per bay, which means charging can take longer than higher-current dedicated chargers.

Specifications

Battery type	Lithium-Ion
Battery voltage	7.4V
Battery capacity	5800mAh
Charger input	5V 2-3A (15W) via Micro-USB or Type-C
Charger output	8.4V 800mA per bay (800mA x1 or x2)
Compatibility	Topcon BT-60Q/61Q/62Q/65Q/66Q, GMS-2; chargers BC-30, BC-30D, BT-30

Our Verdict

The Kastar 2-Pack Battery and LTD2 USB Charger is a strong value for field technicians who need dependable runtime and flexible charging options for Topcon BT-series instruments. It pairs large 5800mAh cells with a portable USB charger and useful LED indicators, making it a sensible choice for crews who want reliable replacements without packing bulky chargers. Buyers who require OEM certification should confirm compatibility with their policies, but for most users this is a practical and cost-effective solution.

Frequently Asked Questions

Will these batteries fit my Topcon BT-60Q instrument?
Yes, the pack is listed as compatible with Topcon BT-60Q and several BT-series batteries and works with matching Topcon total stations named in the compatibility list.

Can the charger be powered from a power bank?
Yes, the charger accepts 5V input via Micro-USB or Type-C and can be used with power banks or vehicle USB adapters that supply 2-3A.

How long does it take to charge a battery?
Charging time depends on input current, but the charger outputs 800mA per bay, so expect longer charge times compared with higher-current dedicated chargers.
