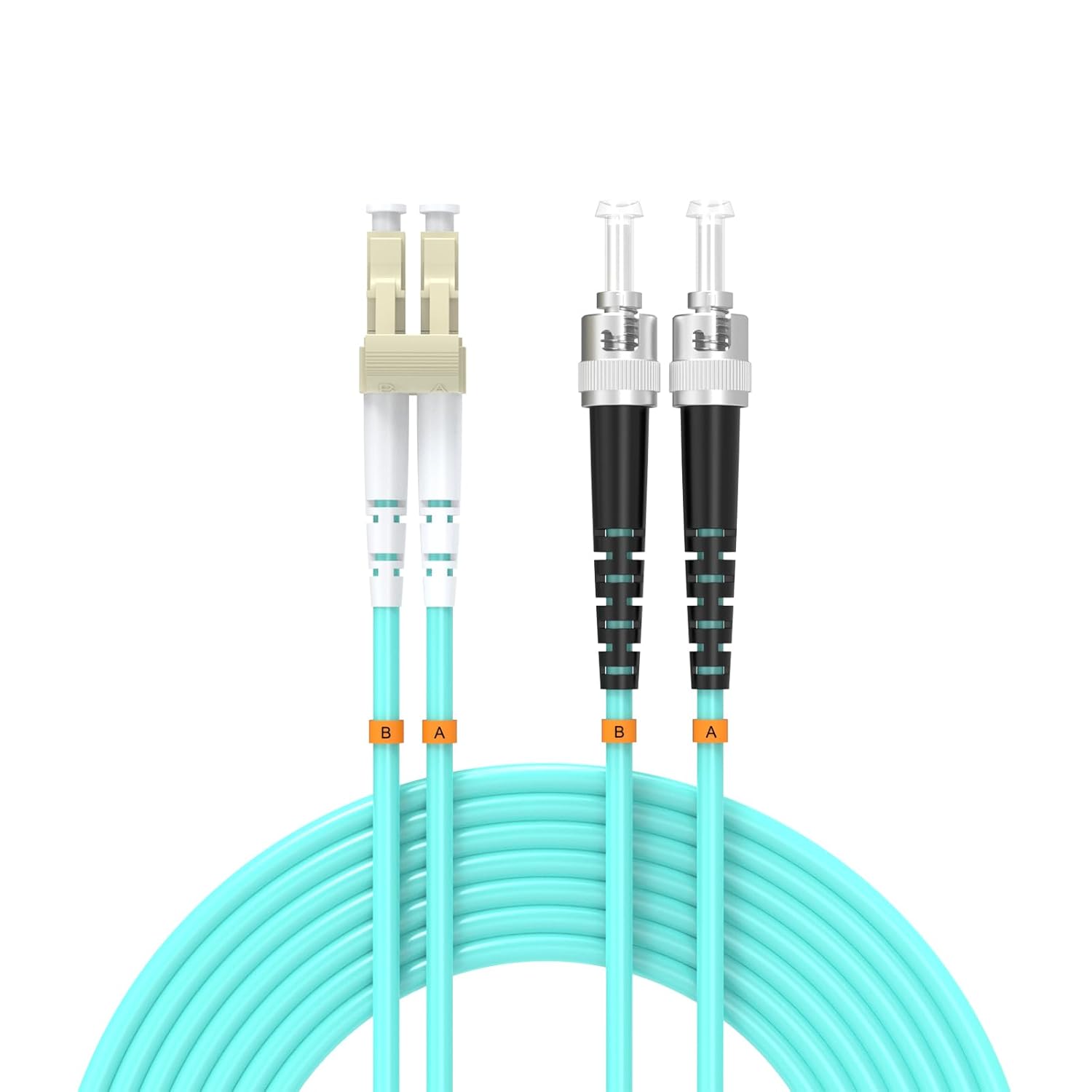

LC/UPC to ST/UPC Fiber Patch Cable OM3 196ft/60m - Low Loss Multimode

In this review the LC/UPC to ST/UPC OM3 fiber patch cable is judged on clarity, build, and everyday usability. It is best for network technicians and data center operators who need a reliable multimode duplex jumper for SFP transceivers and high-speed links; the single biggest reason to buy is the combination of low insertion loss and LSZH jacket that keeps signal integrity high while meeting safety expectations. The review finds it especially useful where medium-length 10Gb or 1Gb runs are required and when a bend-tolerant, factory-tested cable is preferred.

Key Features

• High return loss: Nano zirconia ferrule molding provides a return loss around 50dB for reduced reflections and cleaner optical performance.
• Low insertion loss: Measured insertion loss near 0.3dB ensures minimal signal drop for demanding links such as 10G SR connections.
• OM3 bandwidth: Rated at 2000MHzkm, this OM3 multimode cable supports VCSEL-based transceivers and longer 10G/40G/100G runs where OM3 is appropriate.
• LSZH jacket: The low smoke, halogen-free sleeve adds flame resistance and lowers toxic emissions in enclosed spaces while resisting deformation.
• Bend tolerant and serviceable: A minimum bending radius of 7.5mm makes the cable less sensitive to routing bends and easier to strip for splicing or termination.
• Factory tested: Each jumper is tested for insertion loss and basic quality control prior to shipment, reducing the chance of out-of-spec parts.

Who It's For

The cable is aimed at IT professionals, network installers, and data center staff who connect SFP, SFP+, QSFP+ and similar transceivers where multimode fiber is specified; its OM3 grade and low loss performance suit campus links, server racks, and structured cabling runs up to the stated distances. The LSZH jacket also makes it a sensible choice for indoor installations where low smoke materials are required by code or preference.

Those who need singlemode spans, very long-haul links beyond the stated OM3 distances, or specialty connectors not listed (such as MPO) should look elsewhere. Budget buyers who do not need LSZH or the factory-tested assurance may find simpler multimode cords at lower prices.

Pros & Cons

Pros

• Low insertion and high return loss provide dependable signal integrity for high-speed transceivers.
• LSZH jacket improves safety in enclosed environments and resists heat and deformation.
• OM3 bandwidth and VCSEL compatibility allow flexible deployment across 1G, 10G and higher multimode links.
• Factory testing lowers the risk of out-of-spec cables arriving on site.

Cons

• Multimode OM3 is not suitable for long singlemode runs; distance limits apply for 40G/100G links compared with singlemode options.

Specifications

Length	196ft / 60 meters
Connector ends	LC/UPC to ST/UPC duplex
Fiber type	OM3 multimode (50/125 m)
Insertion loss	Approx. 0.3dB
Return loss	About 50dB
Jacket	LSZH low smoke, halogen-free
Minimum bend radius	7.5mm

Our Verdict

This LC/UPC to ST/UPC OM3 patch cable is a solid, value-oriented choice for network environments that need reliable multimode performance with safety-minded LSZH protection. It delivers low insertion loss and strong return loss suitable for 1G and 10G multimode links, and is a practical pick for data centers and enterprise racks where tested, bend-tolerant cable is preferred.

Frequently Asked Questions

Will this cable work with SFP+ 10G transceivers?
Yes, the OM3 multimode construction and low insertion loss make it suitable for many 10G SR SFP+ transceivers within OM3 distance limits.

Is the jacket safe for indoor use in risers and equipment rooms?
Yes, the LSZH jacket is low smoke and halogen-free, making it appropriate for indoor installations where reduced smoke and toxicity are desired.

How far will this cable carry 1G and 10G signals?
The OM3 rating supports up to about 550 meters for 1G Ethernet and roughly 300 meters for 10G Ethernet under standard conditions.
