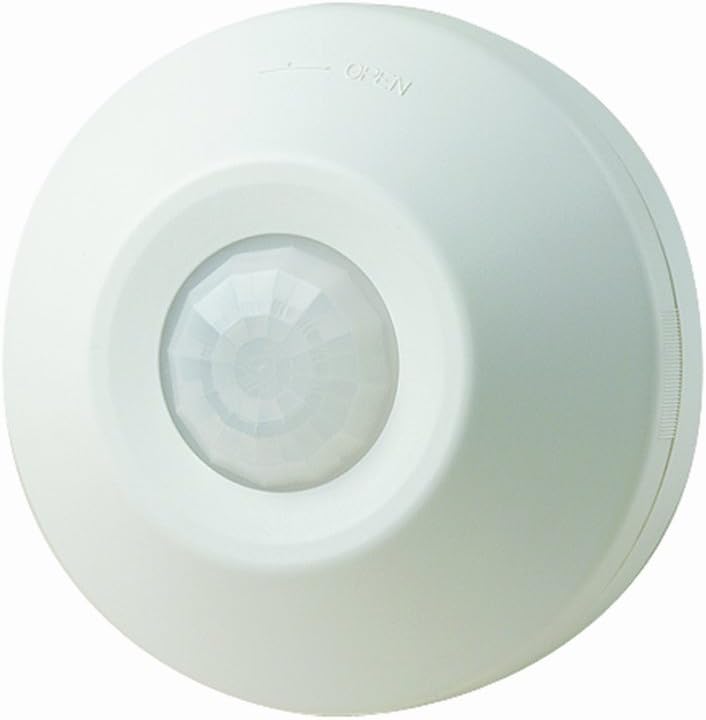

Leviton ODC0S-I1W Ceiling-Mount Occupancy Sensor - Reliable Energy

In this review of the Leviton ODC0S-I1W ceiling-mount occupancy sensor, the bottom line is straightforward: it is a practical, no-fuss option for small commercial and utility spaces that need automatic lighting control without complex wiring. The greatest reason to buy is its self-contained design and dependable passive infrared sensing that delivers up to roughly 530 sq. ft. of coverage from an 8 ft mounting height, making it ideal where retrofits or fixture-mounted controls are preferred. Installation is simple, and the adjustable delayed OFF time helps tune savings and convenience.

Key Features

• 360 degree field of view: Provides broad coverage so a single ceiling unit can monitor up to about 530 sq. ft. when mounted at 8 ft for effective room-wide detection.
• Self-contained switching relay: Includes an internal relay rated for 1000-Watt at 120-Volt, avoiding the need for an external power pack or complex control modules.
• Adjustable delayed OFF time: Lets installers set delay between 20 seconds and 15 minutes to balance energy savings and occupant comfort.
• Visible LED indicator: Flashes when motion is detected to confirm placement and operation during installation and troubleshooting.
• Segmented Fresnel lens: The 79-segment lens is tuned for good sensitivity and reliable detection across the coverage area.
• Climate range: Rated for typical indoor environments with operating temperatures from 32 to 122 degrees F for most utility spaces.

Who It's For

This sensor suits facility managers, contractors, and building owners who need a cost-conscious motion control for small rooms like storage areas, small bathrooms, copy rooms, or mop closets where a wall switch or fixture-mounted control is not convenient. The self-contained relay and ceiling format make it a good retrofit choice in commercial and institutional settings.

Those who need multi-technology detection (ultrasonic or combined sensors) or very large-area coverage should consider other models in Levitons portfolio. Also, because this unit is for indoor use only, it is not appropriate for exterior mounting or unconditioned spaces that fall outside the specified temperature range.

Pros & Cons

Pros

• Easy installation and self-contained design remove the need for additional hardware, saving time and cost.
• Strong coverage from an 8 ft ceiling and a 360 degree lens makes placement straightforward for small rooms.
• Adjustable OFF delay and a visible LED aid tuning and verification during setup.
• Durable approvals and a wide operating temperature range suit common indoor environments.

Cons

• Indoor use only, so it cannot be used outdoors or in unconditioned exterior locations.
• Passive infrared sensing may miss very small movements at the fringes compared with combined-technology sensors.

Specifications

Type	Ceiling-mount self-contained occupancy sensor
Coverage	Approximately 530 sq. ft. at 8 ft mounting height
Load Rating	1000-Watt, 120-Volt switching relay
Delay Settings	Adjustable 20 seconds to 15 minutes
Lens	Segmented Fresnel lens, 79 segments
Operating Temp	32 to 122 degrees F
Approvals	UL, CSA, CEC, FCC

Our Verdict

The Leviton ODC0S-I1W is a sensible, value-oriented occupancy sensor for small commercial and utility rooms where easy retrofit and reliable PIR detection matter. It saves energy with adjustable OFF timing, offers clear installation feedback via an LED, and handles typical indoor environments well; choose it when you want straightforward automatic lighting control without extra components.

Frequently Asked Questions

What size area will this sensor cover?
This ceiling-mounted unit covers roughly 530 sq. ft. when installed at an 8 ft height and provides a 360 degree field of view.

Can it switch standard lighting loads?
Yes, it contains a built-in switching relay rated for 1000-Watt at 120-Volt suitable for common lighting fixtures.

Is it suitable for outdoor or unconditioned spaces?
No, the sensor is intended for indoor use only and is rated for operation between 32 and 122 degrees F.
