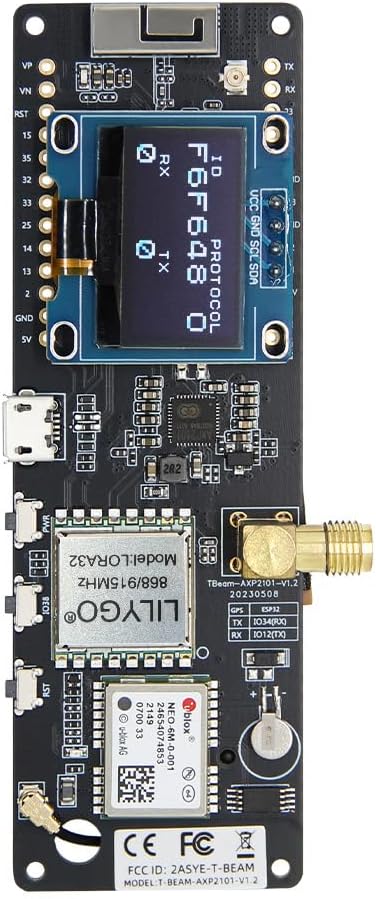

LILYGO T-Beam Meshtastic LORA32 915MHz ESP32 TTGO Development Board

In this review of the LILYGO T-Beam Meshtastic LORA32 the bottom line is simple: this board is aimed at hobbyists and developers who need a compact, mesh-capable IoT node with GPS and long-range LoRa radio. It pairs an ESP32 MCU with a built-in SX1276 915 MHz LoRa chip and a NEO-6M GPS module, making it especially useful for off-grid text telemetry and location-aware projects. The T-Beam is not a polished consumer product, but its integrated radios and memory make it a strong choice for entry-level prototyping and Meshtastic networks.

Key Features

• Onboard ESP32: Integrated ESP32 MCU with WiFi and BLE v4.2 provides familiar development support and simple wireless options for local configuration and testing.
• LoRa long-range radio: The built-in SX1276 915 MHz LoRa chip enables low-power, long-distance message transmission ideal for mesh and remote telemetry projects.
• GPS included: The NEO-6M GPS module with RTC battery and ceramic antenna supplies position and time data for tracking and timed logs without extra modules.
• Memory for development: 4MB flash and 8MB PSRAM are included to support firmware builds and modest applications without immediate upgrades.
• Flexible antenna options: A 3D WiFi antenna saves board space and an IPEX socket is provided when an external antenna is preferred (note only one antenna can be used at a time).
• Simple programming: The CH9102F serial chip simplifies USB programming once the appropriate driver is installed on the computer.

Who It's For

This board is best for makers and developers building mesh communication nodes, trackers, or remote sensors who want an integrated LoRa radio and GPS without wiring separate modules. It suits users comfortable installing drivers and flashing firmware and those using Meshtastic or custom LoRaWAN-like networking setups.

It is less appropriate for absolute beginners who want plug-and-play consumer hardware, or for commercial deployments that require ruggedized enclosures and guaranteed long-term durability without additional testing. Users needing higher performance GPS or multiple simultaneous antennas should consider other specialist modules.

Pros & Cons

Pros

• Built-in SX1276 LoRa and NEO-6M GPS deliver combined long-range comms and positioning in one compact board.
• ESP32 with WiFi and BLE allows easy local setup and familiar programming workflows.
• Reasonable memory footprint with 4MB flash and 8MB PSRAM for hobby projects and Meshtastic firmware.
• CH9102F serial interface makes USB programming straightforward once drivers are installed.

Cons

• Mixed reports on overall device quality and durability mean some units may require troubleshooting or careful handling.
• The onboard and external antenna cannot be used simultaneously, limiting some antenna configurations.

Specifications

Brand	LILYGO
MCU	ESP32 with WiFi and BLE v4.2
LoRa	SX1276 915 MHz
GPS	NEO-6M module with RTC battery
Memory	4MB Flash, 8MB PSRAM
Programming	CH9102F serial chip (USB driver required)
Antenna	3D WiFi antenna onboard; IPEX socket for external antenna (not simultaneous)

Our Verdict

The T-Beam Meshtastic LORA32 is a strong value for makers who need an integrated LoRa radio plus GPS on an ESP32 platform; it shortens development time for mesh and tracking projects and includes enough memory for typical firmware. While not engineered as a hardened commercial unit, it offers capable hardware for hobbyist networks and proof-of-concept deployments when buyers accept the occasional quality variance.

Frequently Asked Questions

Does this board support Meshtastic?
Yes, the combination of ESP32 and SX1276 915 MHz LoRa makes it compatible with Meshtastic firmware and similar mesh messaging projects.

Can I use both onboard and external antennas?
No, the onboard ceramic antenna and an external antenna cannot be used at the same time; use the IPEX socket if an external antenna is needed.

How do I program the board?
Programming is via the CH9102F USB-serial chip; install the appropriate driver on your computer before connecting for flashing and serial monitoring.
