Linear Actuator 12V 330lb 6in Stroke - Fast Heavy Duty

Our review of this 12V linear actuator is aimed at DIYers, small workshop builders, and light industrial users who need a compact, powerful electric actuator for lifting, pushing, or adjusting. The single biggest reason to buy is the combination of a 330lb (1500N) push/pull rating with a relatively fast 10mm/s travel speed, which makes it useful where both force and reasonable speed matter. It is especially appealing when durability and environmental resistance are required, since the unit is built from aluminum alloy and rated IP54 for splash resistance.

Key Features

• High load capacity: The 330lb/1500N push and pull rating handles heavy adjustments and small lifting tasks without noticeable strain.
• Moderate high speed: A travel speed of 10mm/s (0.39in/s) reduces cycle time for many applications while maintaining control.
• Built-in safety limits: Internal limit switches cut power at end positions automatically to prevent overtravel and protect connected systems.
• Low noise operation: The upgraded motor runs around 50dB, producing quieter motion suitable for home or medical environments.
• Durable construction: An aluminum alloy body improves stability and longevity for outdoor and workshop use.
• IP54 protection: Water and dust resistance allow operation in harsher environments like workshops, garden automation, or exterior installations.

Who It's For

This actuator suits homeowners creating automated window openers, solar trackers, or adjustable furniture, and technicians who need a compact 12V actuator for electric lifts, nursing beds, or small industrial gates. Its 6in stroke and 330lb capacity are well matched to medium-duty tasks where linear motion needs to be reliable and repeatable.

Those who should look elsewhere include projects requiring very high cycle speed, very long strokes, continuous-duty industrial actuators, or full waterproofing beyond splash resistance; for those, look for actuators with higher IP ratings, continuous duty ratings, or longer travel lengths.

Pros & Cons

Pros

• Strong 330lb/1500N force is capable of many lifting and pushing tasks without external gearing.
• Built-in limit switches and safety lock add convenience and reduce wiring complexity during installation.
• Aluminum alloy housing and IP54 rating make it suitable for outdoor and workshop conditions.
• Low noise motor design keeps operation quieter than many comparable units.

Cons

• Speed of 10mm/s is moderate but may be slow for applications that need rapid actuation.
• IP54 offers splash protection but is not suitable for full immersion or very wet environments.

Specifications

Stroke length	6 in (150 mm)
Travel speed	10 mm/s (0.39 in/s)
Max push/pull load	330 lb / 1500 N
Retracted / extended length	Retracted 260 mm (10 in) / Extended 410 mm (16 in)
Current draw	4 amps
Protection rating	IP54 waterproof

Our Verdict

This 12V, 6in stroke actuator is a practical choice for DIY builders and light industrial users who need a balance of strength, modest speed, and durability. With solid construction, built-in limit stops, and IP54 resistance, it offers strong value for automated windows, adjustable furniture, solar tracking, and other medium-duty projects where quiet, reliable motion is important.

Frequently Asked Questions

What voltage does this actuator use?
The actuator runs on 12V DC and draws about 4 amps under load.

Can it be used outdoors?
Yes, the IP54 rating protects against dust and splashes, but it is not designed for full immersion or extremely wet locations.

Does it include mounting hardware?

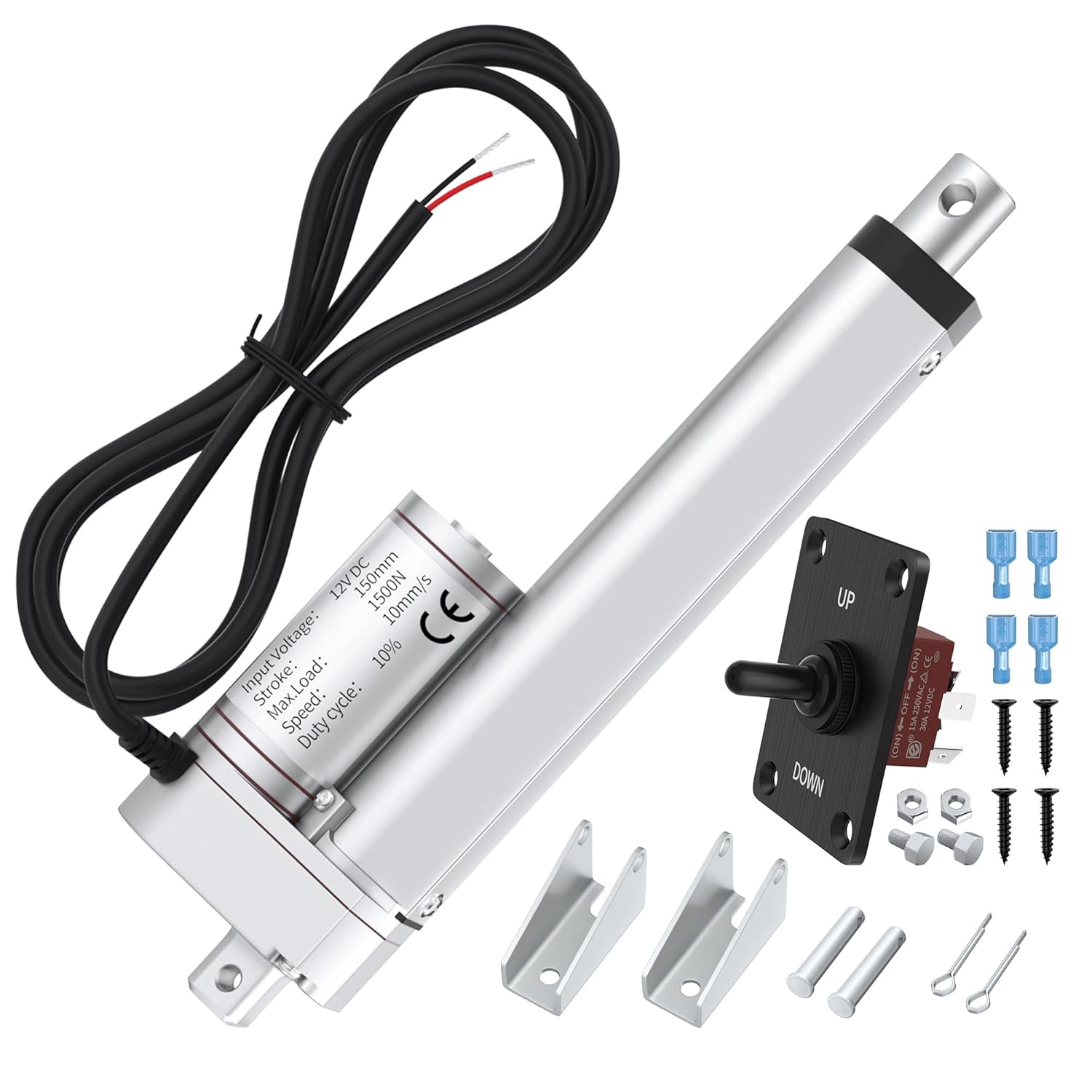

The package includes mounting brackets and a polarity reversing switch to simplify installation.
