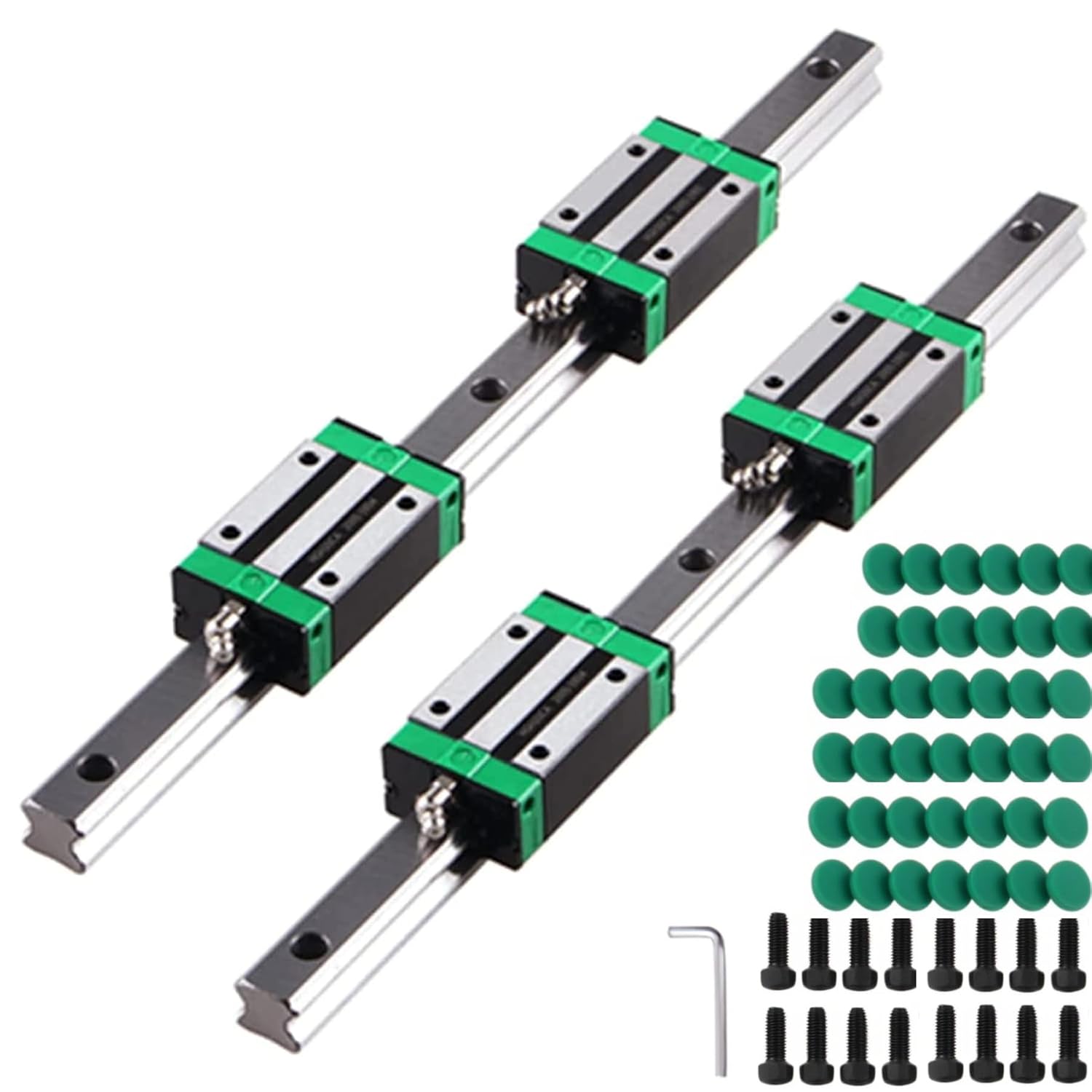

Linear Guide Rail HGR20 800mm with 4 Bearing Blocks - Precise DIY

In this review of the Linear Guide Rail HGR20 800mm kit, the bottom line is simple: it is a practical, cost-conscious choice for hobbyists and small-shop builders who need smooth, high-precision linear motion for DIY CNC routers, lathes and mills. The kit's biggest strength is providing a hardened, anti-rust steel rail and four bearing pillow blocks that deliver accurate motion with low friction and long service life, making it a sensible upgrade from plastic or un-hardened shafts.

Key Features

• HGR20 profile: The 20 mm rail width provides a stable guide surface that helps maintain accuracy for single-axis and gantry applications.
• 800 mm length: At 800 mm (31.5 in), the rail gives ample travel for medium-sized DIY CNC projects without requiring custom cutting.
• Four bearing pillow blocks: The included blocks offer smooth sliding and reduce play, which improves machining consistency and surface finish.
• Hardened bearing steel: Case-hardened construction and anti-rust surface treatment increase durability and resist wear compared with untreated shafts.
• Pre-drilled mounting: The steel support rail is supplied with mounting holes for easier alignment and faster installation into frames and beds.
• Wide compatibility: Designed for milling machines, lathes, routers and other handling devices, so it integrates with many DIY setups.

Who It's For

This kit suits hobbyists, home machinists, and small workshop owners building or upgrading CNC routers, small mills, or lathes who want a reliable, economical linear guidance solution. It is especially useful when replacing plastic bearings or stock shafts to reduce friction and extend tool life.

It is less appropriate for heavy industrial presses or extremely high-load, high-speed production lines where larger-profile guides or custom hardened rails would be required; professionals in those environments should seek industrial-grade assemblies sized for their loads.

Pros & Cons

Pros

• High-quality steel rails and hardened surface treatment increase wear resistance and longevity.
• Four bearing blocks deliver smooth, low-friction motion that improves cutting consistency.
• Pre-drilled rails simplify mounting and alignment during assembly.
• Good value for money for hobby or light commercial uses, as reported by users.

Cons

• Some users reported mixed results with accessory parts like screw hole covers and fittings, so minor adjustments may be needed during installation.
• The kit is intended for light to moderate loads; very heavy-duty industrial use may require larger guides.

Specifications

Rail profile	HGR20 (20 mm)
Rail length	800 mm
Included bearing blocks	4 pillow blocks
Material	Case-hardened bearing steel with anti-rust surface treatment
Mounting	Steel rail with pre-drilled holes
Typical applications	DIY CNC routers, lathes, mills, drilling and woodworking machinery

Our Verdict

The HGR20 800 mm linear guide rail kit is a strong, economical choice for hobbyists and small shops that need an upgrade to more precise, low-friction motion. With hardened steel rails, four smooth bearing blocks and pre-drilled mounting, it delivers reliable performance and good value for most DIY CNC and light machine tools, though heavy industrial applications should choose larger, purpose-built guides.

Frequently Asked Questions

Is this kit easy to install?
Yes, the steel rail comes with pre-drilled holes and the pillow blocks slide on for straightforward installation, though minor alignment and adjustment are usually needed.

Are the rails corrosion resistant?
The rails have an anti-rust surface treatment and are case-hardened, which improves resistance to corrosion and wear compared with untreated steel.

Will this work for a CNC router?
Yes, it is suitable for DIY CNC routers and similar machines where moderate loads and precise linear motion are required.
