Linear Rail Kit SBR16 1000mm with 4 Carriage Blocks - Precision Motion

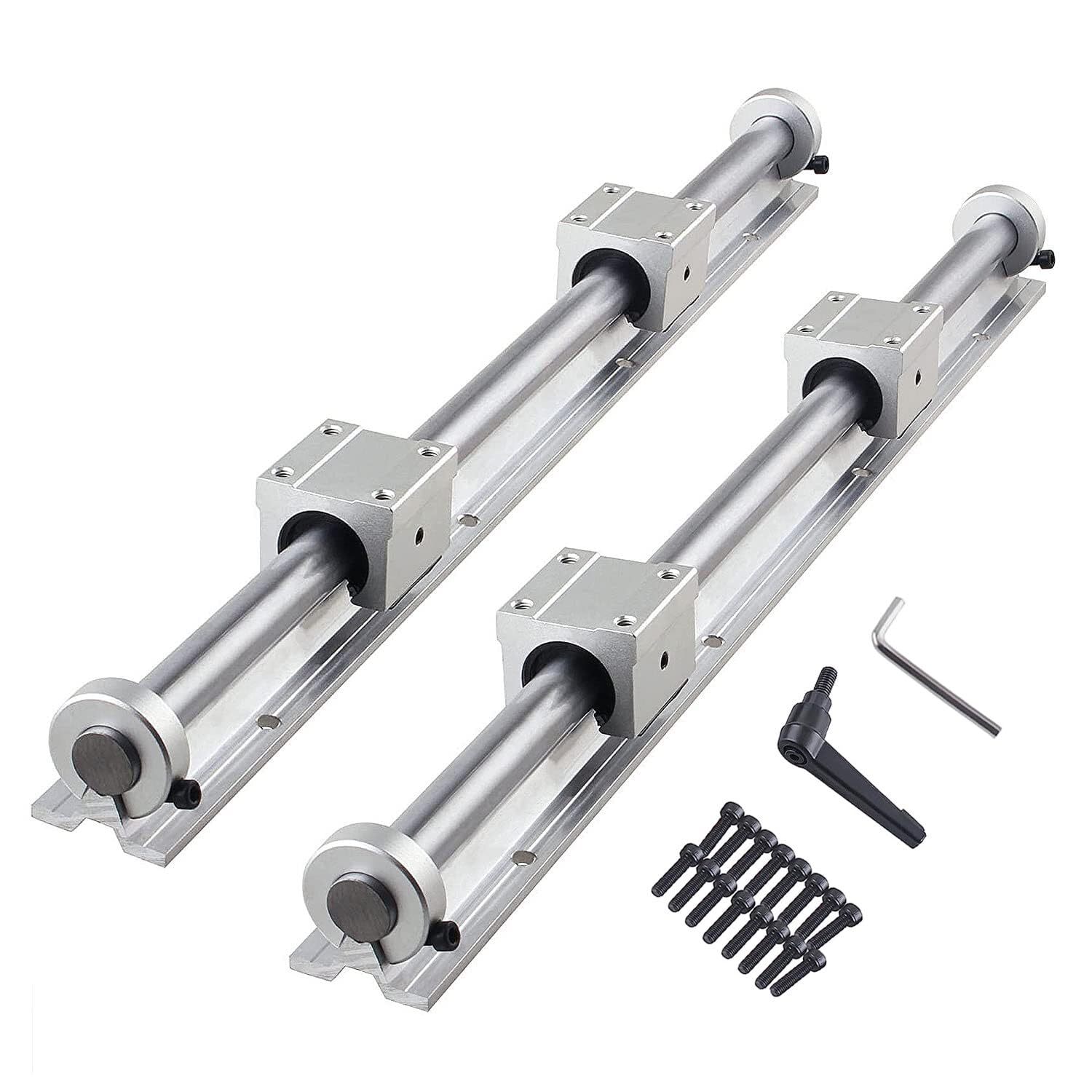

In this review of the Linear Rail Kit SBR16-1000mm, the bottom line is straightforward: this kit is aimed at DIY builders and small workshop owners who need a complete, robust linear guide solution without sourcing parts individually. The package contains two 1000mm SBR16 rails, four SBR16UU bearing blocks and four 16mm stop collars, and it stands out for solid construction and high-precision bearings that deliver predictable linear motion for CNC routers, laser cutters and woodworking rigs. Expect durable carbon steel rails and a four-point contact bearing design that keeps loads distributed evenly, though some users will want to add light lubrication for the smoothest travel.

Key Features

• Complete kit: Includes two 1000mm rails, four SBR16UU carriage bearing blocks and four 16mm limit blocks so builders can mount a working guide system immediately.
• High-quality material: Rails are made from carbon steel treated with quenching and tempering for improved wear resistance and bending strength under load.
• Anti-rust finish: Surface treatment improves durability and hardness for longer service life in workshop environments.
• Four-point contact bearings: SBR16UU blocks use a four-point contact design to distribute loads evenly and provide consistent linear motion under multi-directional force.
• End stops included: Stop collars prevent the blocks from sliding off the ends of the rails, simplifying safe installation and setup.
• Tool-free alignment: Blocks install by aligning and pushing into the track which speeds assembly for DIY projects.

Who It's For

This kit is best for DIY CNC builders, hobby machinists and small-shop operators who need a reliable linear guide on a budget and prefer buying a matched set of rails and blocks. It suits projects such as entry to mid-level CNC routers, laser cutting/engraving setups, simple lathes and many woodworking jigs where a sturdy linear axis is required.

It is less suitable for precision industrial applications that demand certified, pre-lapped rails or for systems that require sealed lubrication and ultra-low-noise operation out of the box. Users needing specialized sizes or stainless corrosion resistance should look at alternate, purpose-built linear guides.

Pros & Cons

Pros

• Solid carbon steel construction gives strong bending resistance and long-term wear durability.
• Complete package means fewer compatibility worries and faster assembly for DIY builds.
• Four-point contact SBR16UU blocks deliver even load distribution and stable motion under load.
• Anti-rust surface treatment increases lifespan in typical workshop conditions.

Cons

• Some users report mixed smoothness and occasional noise; light greasing may be required for best slideability.
• Not a sealed, pre-lubricated industrial unit, so heavy-duty continuous industrial use may need additional maintenance.

Specifications

Our Verdict

The Linear Rail Kit SBR16-1000mm is a good-value, practical choice for DIY CNC builders and hobbyists who want a matched set of rails and carriage blocks that are durable and straightforward to install. While it may need light lubrication to achieve the quietest, smoothest travel, the carbon steel construction, four-point contact bearings and included stop collars make it a reliable foundation for many small to mid-size motion systems.

Frequently Asked Questions

Do the bearing blocks come pre-lubricated?
Answer: The blocks are functional out of the package but some users add light grease for improved smoothness and reduced noise.

Are these rails compatible with typical DIY CNC frames?
Answer: Yes, the 16mm shaft size and SBR16UU blocks are commonly used on hobby and small-shop CNC frames and routers.

Can the end stop collars prevent the blocks from falling off?
Answer: Yes, the included 16mm limit block rings act as end stops to keep the bearing blocks from sliding off the rail ends.
