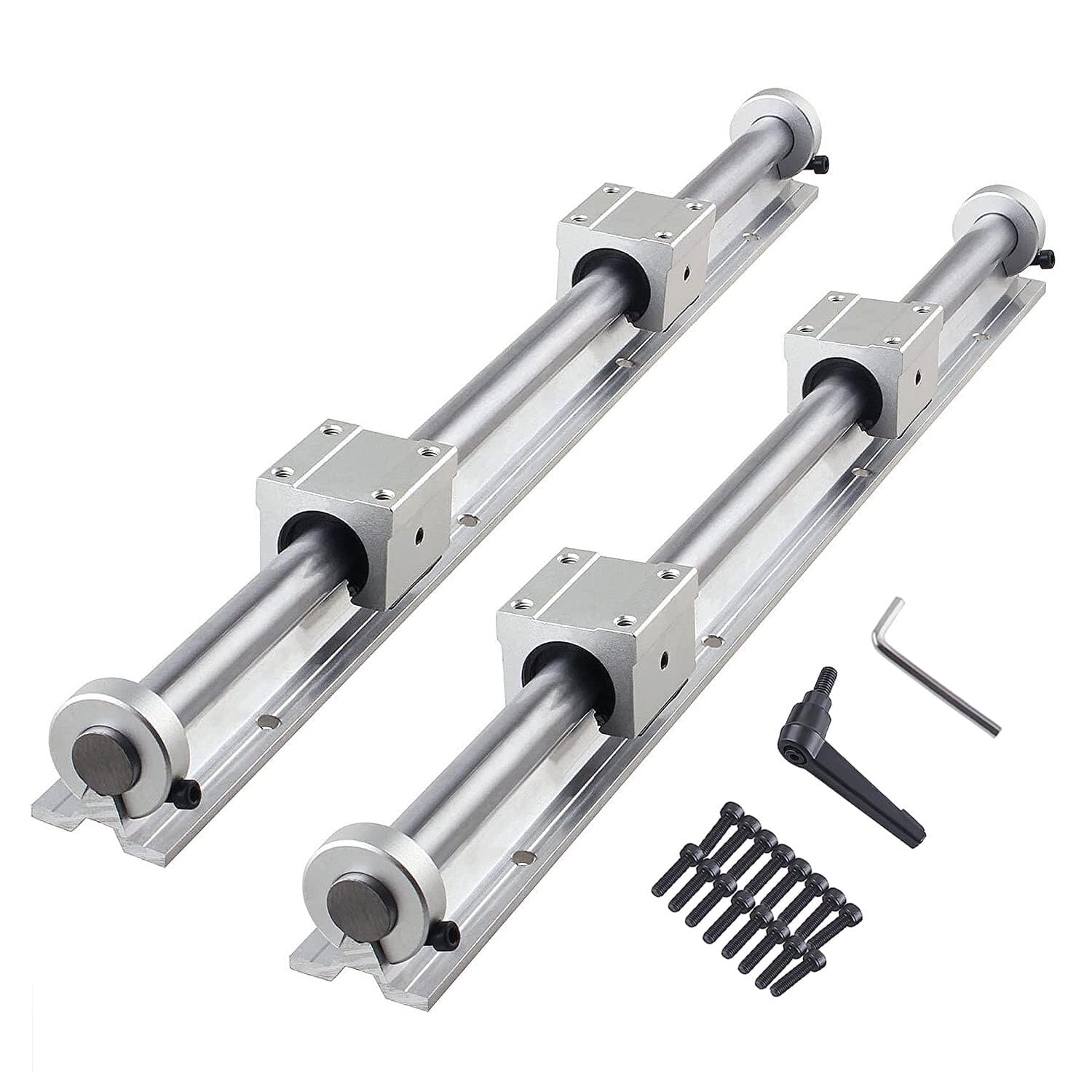

Linear Rail Kit SBR20 1200mm with 4 Carriage Blocks - DIY CNC Ready

In this review the Linear Rail Kit SBR20 1200mm is evaluated for hobbyists and small workshop builders who need a ready combination of rails and carriages for DIY CNC projects. The bottom line: this kit bundles two 1200mm carbon steel guide rails, four SBR20UU bearing blocks and four 20mm stop collars into a practical package, delivering solid rigidity and straightforward installation for gantry and axis builds while offering good value for the price.

Key Features

• Complete kit: Two 1200mm SBR20 guide rails plus four SBR20UU bearing blocks and four 20mm fixed rings provide everything needed to outfit a single linear axis or a small gantry without piecing parts together.
• High quality material: Rails are made from carbon steel treated with quenching and tempering for improved wear resistance and bending strength, which helps maintain straight motion under load.
• Anti-rust finish: Surface treatment reduces corrosion risk and preserves hardness for longer service life in typical workshop environments.
• Four-point contact bearings: The SBR20UU blocks use a four-point contact design to distribute loads evenly and support multi-directional forces common in CNC routing and cutting applications.
• End stops included: Limit rings (20mm) act as simple stop collars to help prevent carriages from sliding off rail ends during setup or transport.
• Easy to install: The slide blocks are designed to align and drop onto the rail profile for quick fitting without complex assembly steps.

Who It's For

This kit is aimed at DIY CNC builders, small metal or wood shops, and hobbyists assembling routers, laser cutters or light-duty lathes who want a ready-made linear motion solution. Its included carriages and stop collars make it convenient for straightforward retrofits and new builds.

Those needing ultra-precise, preloaded linear guides for high-speed industrial automation or high-precision metrology should consider premium preloaded rails; some users report variability in smoothness and fit that may not meet very tight tolerance requirements.

Pros & Cons

Pros

• Good value for a complete two-rail kit with four bearing blocks and stop collars.
• Durable carbon steel rails with heat treatment provide strong bending resistance for stable linear motion.
• Simple installation reduces setup time on DIY machines and prototypes.
• Four-point contact bearing blocks handle multi-directional loads well for common CNC tasks.

Cons

• Some users report mixed feedback on smoothness and fit, with occasional sloppy or tight carriage feel that may require adjustment.
• The bearings can be noisier than higher-end preloaded guides under certain conditions.

Specifications

Our Verdict

The Linear Rail Kit SBR20 1200mm is a practical, cost-effective option for DIY CNC builders and small workshops that need a complete linear motion set without sourcing individual parts. It delivers good structural strength and convenient installability, though those pursuing the quietest, tightest-running industrial guides may prefer a higher-tier preloaded option. For most hobby and light-production uses it offers reliable value.

Frequently Asked Questions

Are these rails ready to mount?
Yes, the kit includes rails, SBR20UU blocks and stop collars so you can mount and align the slides directly on a gantry or axis.

Do the bearing blocks require maintenance?
The product is described as low maintenance; routine inspection and light lubrication as appropriate for your environment will extend life.

Will these work for a CNC router gantry?
Yes, they are suitable for DIY CNC routers and similar machines, provided the precision meets your project requirements.
