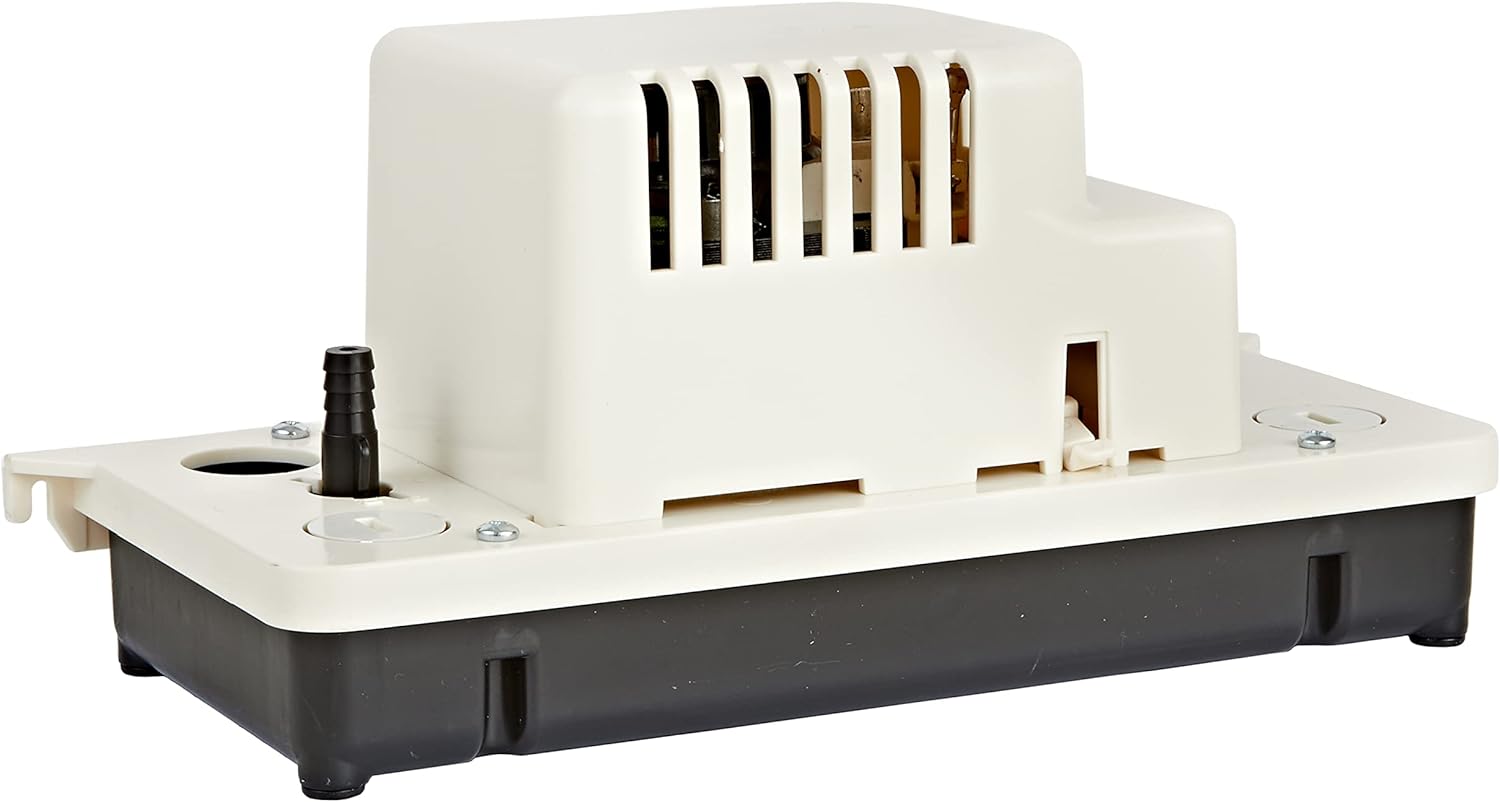

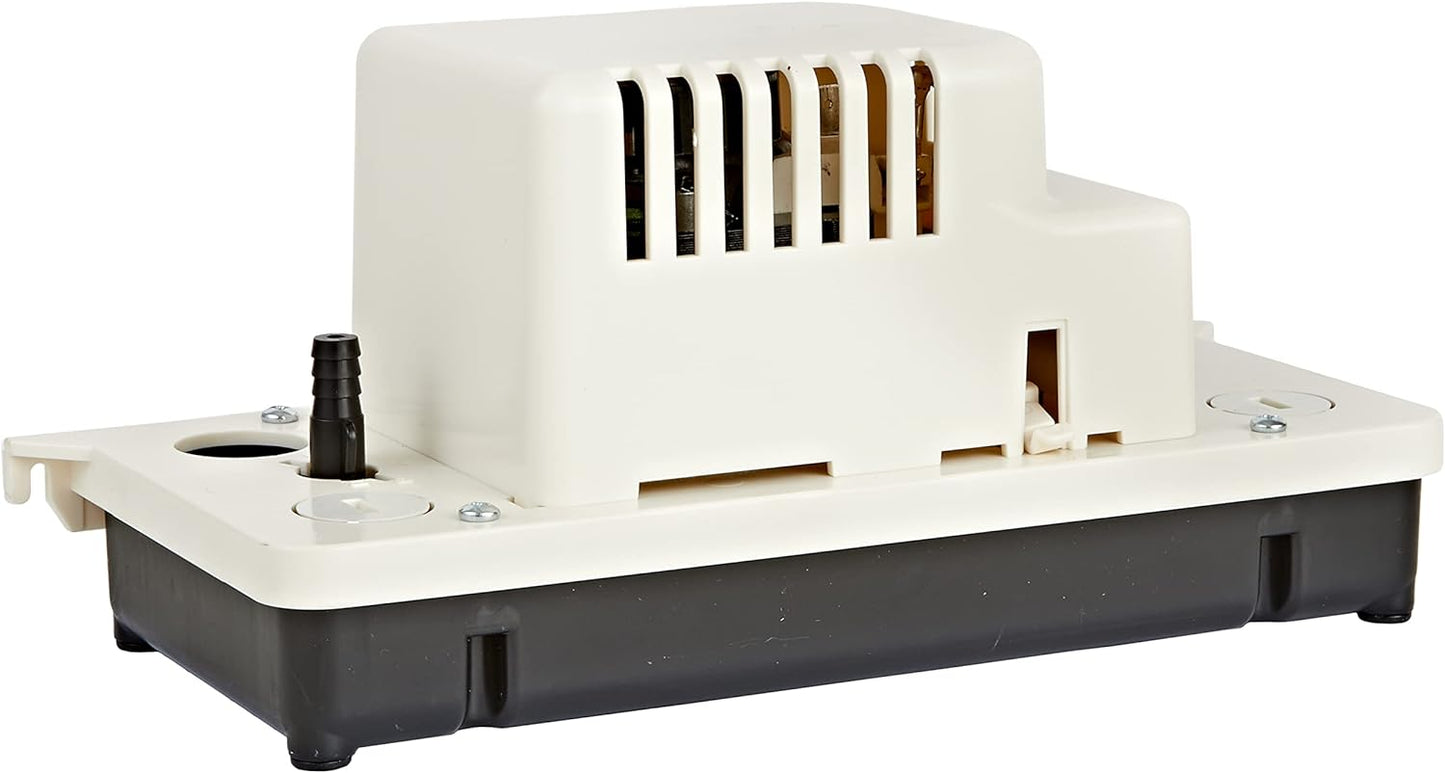

Little Giant VCCA-20ULS Low-Profile Condensate Pump - Tight Space Fit

In this review the Little Giant VCCA-20ULS is evaluated as a straightforward solution for removing condensate in cramped installations. The bottom line: this pump is for homeowners, HVAC technicians and installers who need a compact, reliable condensate removal pump that fits where taller units will not. Its low-profile tank and three inlet openings make it particularly useful behind furnaces, in tight closets, or under cabinets. The built-in safety switch and included check valve add practical protection and plumbing options, making installation and long-term operation simple for most residential applications.

Key Features

• Low-profile design: The short tank height and compact footprint let the unit fit into tight spaces where standard condensate pumps will not.
• Automatic operation: The pump activates automatically to collect and remove condensate from air conditioners, refrigerators, dehumidifiers, boilers and furnaces without constant monitoring.
• Safety switch: An overflow detection switch is included so the pump can be wired to shut down equipment or trigger an alarm in an overfill event.
• Included check valve adapters: A twist-off locking check valve for 3/8-in ID tubing and an adapter for 1/4-in ID tubing provide flexible discharge plumbing options.
• Useful capacity and performance: Rated up to 80 GPH with a shutoff around 17-20 ft depending on head, it handles typical residential condensate loads reliably.

Who It's For

The VCCA-20ULS is aimed at homeowners and HVAC technicians needing a compact condensate pump for retrofit or new installations where space is limited, such as furnace rooms, utility closets, or under cabinetry. It is also suitable for small commercial applications with moderate condensate volume because of its 80 GPH capability and safety switch feature.

It is not intended for heavy industrial drainage or continuous high-temperature liquid handling beyond the specified intermittent 120 F limit. Buyers needing a high-capacity or continuously running commercial pump should consider larger models designed for those loads.

Pros & Cons

Pros

• Compact footprint and low height make it easy to install in tight spaces.
• Automatic operation and built-in overflow switch improve reliability and safety.
• Includes check valve and adapters for common tubing sizes, simplifying plumbing hookups.
• Solid construction and practical electrical spec (6-ft cord with 3-prong plug) support straightforward installs.

Cons

• Some users note differing opinions on noise level and physical size, so expectations on quiet operation should be tempered.

Specifications

Voltage	115 Volt, 60 Hz
Motor	1/30 HP, 1.5 Amps, 93 Watts
Flow / Shutoff	80 GPH at 1 ft head; 17-20 ft shutoff
Maximum Pressure	Max PSI about 7.4 to 8.6
Tank dimensions	11.96 in x 5.02 in x 5.23 in
Inlets / Tubing	Three inlet openings for 3/4-in PVC; includes check valve for 3/8-in ID and adapter for 1/4-in ID tubing
Safety & approvals	Overflow detection switch with 5-in leads; cCSAus listed; thermal overload protected

Our Verdict

The Little Giant VCCA-20ULS is a practical, value-minded condensate pump for residential and light commercial installs where space is at a premium. Its low-profile housing, automatic operation and included safety features deliver dependable performance for furnace, A/C, dehumidifier and appliance drainage. Buyers who need larger continuous-duty capacity should look elsewhere, but for tight installations this pump is a sensible, cost-effective choice.

Frequently Asked Questions

Can this unit be used with a high-efficiency furnace?
Yes, it is suitable for high-efficiency condensing furnaces and boilers and can handle typical furnace condensate.

What tubing sizes are supported for discharge?
The pump includes a locking check valve for 3/8-in ID tubing and an adapter for 1/4-in ID vinyl tubing for flexible installation.

Is there a safety cutoff if the tank overflows?
Yes, it includes an overflow detection switch that can shut down equipment or trigger an alarm if an overfill condition occurs.
