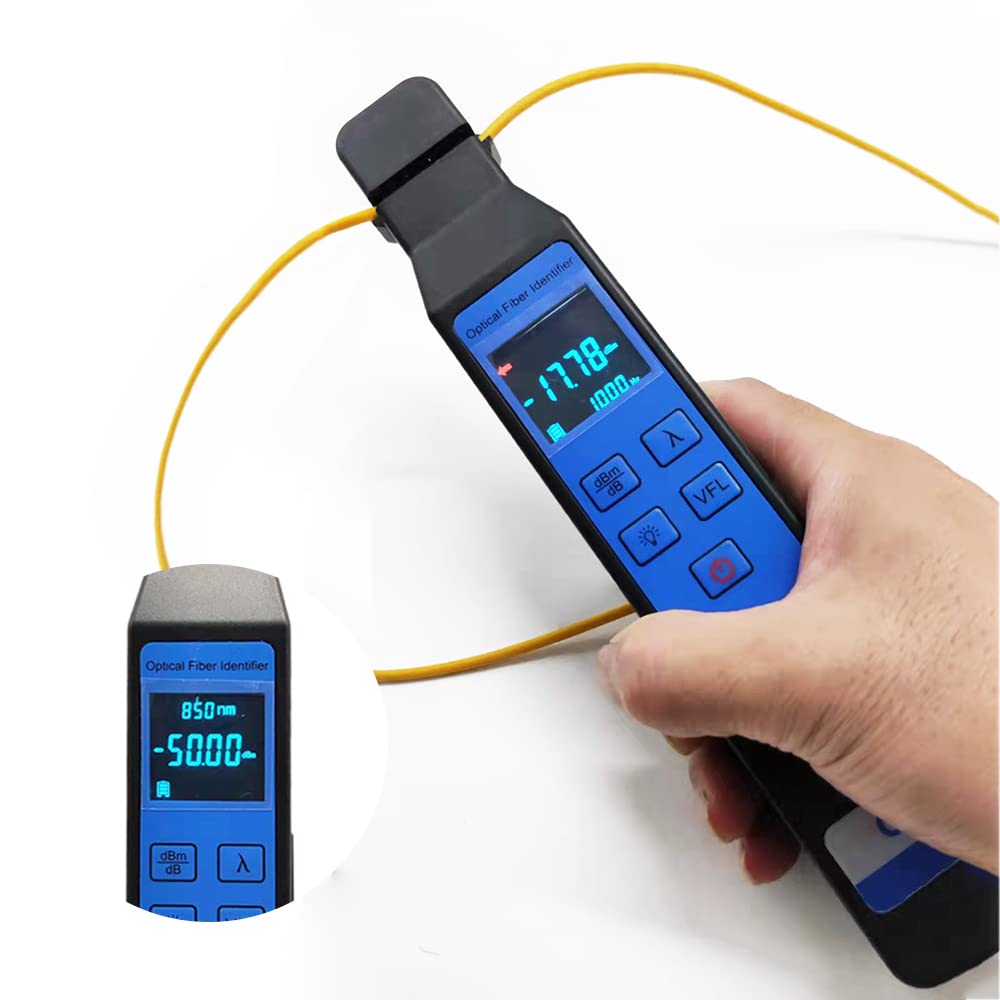

Live Optical Fiber Identifier YD-3309D with 800-1700nm Wave Respond

Our review of the Live Optical Fiber Identifier YD-3309D focuses on field technicians and FTTH installers who need a compact tester that combines multiple functions. The bottom line: this unit is best for technicians who want a single handheld tool that shows signal direction and relative core power while also offering a built-in VFL for distance checks and an OPM for basic power measurements. It does those jobs reliably and is light enough for pocket carry, though some users note occasional variability in absolute accuracy.

Key Features

• Live signal direction: Indicates the direction of traffic in a fiber so a tech can quickly locate active lines without disconnecting service.
• Wave respond 800-1700nm: Detects optical signals across a wide wavelength range to identify transmissions and tone signals on many networks.
• Built-in VFL: The visual fault locator finds breaks and estimates fiber distance up to roughly 10-15 kilometers, making it useful for troubleshooting long runs.
• OPM measurement: Tests at multiple wavelengths including 850/1300/1310/1490/1550/1625nm and reads a wide range from -50 to +26 dB for basic loss and power checks.
• Universal connector and gripper: Uses a 2.5mm universal connector and metal gripper to accept various fiber coatings without swapping adapters.
• Portable design: Lightweight at about 200g with an LED color screen for readable results in the field.

Who It's For

The YD-3309D is aimed at FTTH installers, fiber splicing crews, and network technicians who need a single, portable tool for quick identification, direction detection, and basic power testing. Its combination of live identifier, VFL and OPM functions makes it a practical choice for on-site troubleshooting and mapping fiber runs without carrying several instruments.

It is less suited to users who require laboratory-grade absolute power accuracy or advanced datalogging. If precise calibrated measurements and professional reporting are mandatory, a dedicated high-end power meter or test set would be a better match.

Pros & Cons

Pros

• Compact multi-function tool that reduces kit size by combining identifier, VFL and OPM.
• Wide wavelength coverage and OPM range (-50 to +26 dB) for common fiber tests.
• Universal 2.5 connector and metal gripper accept multiple fiber types without adapters.
• Lightweight with a color LED screen for easy field use.

Cons

• Some users report mixed accuracy on absolute power readings, so verification with a calibrated meter is advisable for precision work.
• VFL distance is approximate (10-15 km) and not a replacement for detailed OTDR distance measurement.

Specifications

Model	YD-3309D
Waveband	800-1700nm
OPM test wavelengths	850 / 1300 / 1310 / 1490 / 1550 / 1625nm
OPM measurement range	-50 to +26 dB
Connector type	2.5mm universal connector
VFL range	Approx. 10-15 km
Size & weight	230 x 43 x 36mm; 200g

Our Verdict

The YD-3309D is a practical, budget-friendly multi-tool for field technicians who need fast identification, direction indication and basic power checks without bulky equipment. It offers good value for routine FTTH troubleshooting, though teams requiring strict calibrated accuracy should confirm readings with a dedicated meter.

Frequently Asked Questions

Can this unit detect live signals in fiber?
Yes, it indicates signal direction and relative core power and can detect tone signals at fixed loads and frequencies including 270Hz, 1kHz and 2kHz.

What fiber sizes does it accept?
The metal gripper accommodates common fiber types including 250um, 900um, 2mm and 3mm without changing adapters.

Is the VFL suitable for long-distance fault locating?
The built-in VFL estimates distance up to about 10-15 km, useful for basic locating but not a replacement for OTDR for precise distance measurements.
