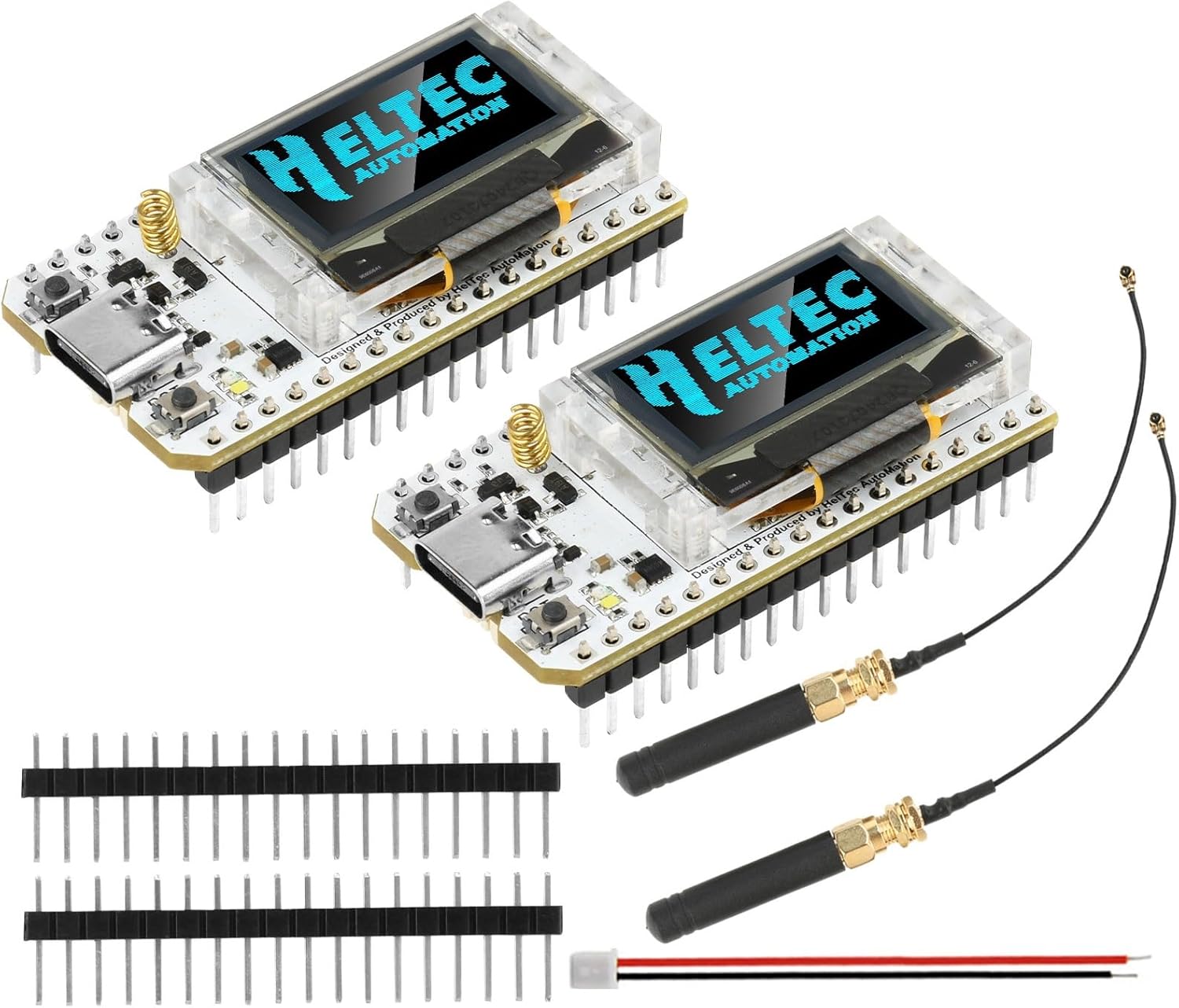

LoRa V3 ESP32 LoRa V3 Development Board - Dual-Core IoT Kit

In this review the LoRa V3 ESP32 development board is examined for makers and developers who need an integrated Wi-Fi, Bluetooth and LoRa endpoint with an onboard display and reliable power/USB protections. The single biggest reason to consider this board is its combination of an ESP32-S3 dual-core processor and the SX1262 LoRa node chip paired with a large external antenna, which together make it suitable for IoT testing, Meshtastic nodes, and prototype sensor gateways where range and on-device diagnostics matter.

Key Features

• Large Antenna: The included large antenna yields a more stable radio link and helps extend LoRa range for varied outdoor and indoor scenarios.
• ESP32-S3 Processor: The onboard ESP32-S3FN8 dual-core Xtensa LX7 processor runs up to 240 MHz, offering ample CPU headroom for networking and sensor fusion tasks.
• SX1262 LoRa Chip: The dedicated SX1262 node chip provides LoRa modulation and regional band support around 863-928 MHz for low-power long-range telemetry.
• Onboard OLED: The 0.96 in 128x64 dot matrix OLED display makes it easy to show debug messages, battery status and simple UI without a serial console.
• Type C and Protections: A Type-C USB port with CP2102 serial, full voltage regulation, ESD and short circuit protections simplifies programming and protects the board during development.
• Three-network Support: Integrated Wi-Fi, LoRa and Bluetooth allow the board to act as a gateway, local mesh node or BLE peripheral without additional radios.

Who It's For

This board is aimed at hobbyists, IoT developers and students who want a compact development module that combines a capable microprocessor with a proven LoRa transceiver and a small display for quick field debugging. It is especially useful for Meshtastic users or anyone building low-power remote sensors who need on-device status and a reliable RF link.

Those who should look elsewhere include developers who need industrial-grade enclosures, certified radios for commercial products, or a platform with built-in cellular connectivity; this board is best used as a development tool or prototype node rather than a finished commercial product.

Pros & Cons

Pros

• Integrated ESP32-S3 and SX1262 give strong processing and long-range radio in one board.
• Large antenna and reserved U.FL connector provide flexible RF options for improved range and testing.
• Onboard OLED and CP2102 Type-C interface simplify debugging and firmware updates without extra gear.
• Built-in protections on the Type-C interface reduce risk during development and field use.

Cons

• Not a finished product for commercial deployment; additional enclosures and certifications would be required for production use.
• Limited on-board I/O detail in the listing may require checking pinouts before complex hardware integrations.

Specifications

Brand	Aideepen
Microprocessor	ESP32-S3FN8 dual-core Xtensa LX7, up to 240 MHz
LoRa Chip	SX1262 (863-928 MHz)
Display	0.96 in 128x64 OLED
USB Interface	Type-C with CP2102 serial, voltage regulator and protections
Antennas	Large external antenna, 2.4 GHz metal spring Wi-Fi/BT antenna, reserved U.FL for LoRa

Our Verdict

The LoRa V3 ESP32 development board is a practical, cost-effective kit for prototyping IoT nodes that need both processing power and long-range radio. Developers building Meshtastic nodes, sensor prototypes, or hybrid Wi-Fi/LoRa devices will find the integrated OLED, robust USB protections and antenna options make it good value as a development platform.

Frequently Asked Questions

Does this board support Wi-Fi and Bluetooth?
Yes. The ESP32-S3 integrates Wi-Fi and Bluetooth alongside the SX1262 LoRa transceiver for multi-network projects.

How is firmware loaded onto the module?
Firmware is loaded via the Type-C port using the integrated CP2102 serial converter, which supports standard serial flashing tools.

Is the LoRa antenna removable?
Yes. The board ships with a large external antenna and also includes a reserved U.FL pad for alternate antenna configurations.
