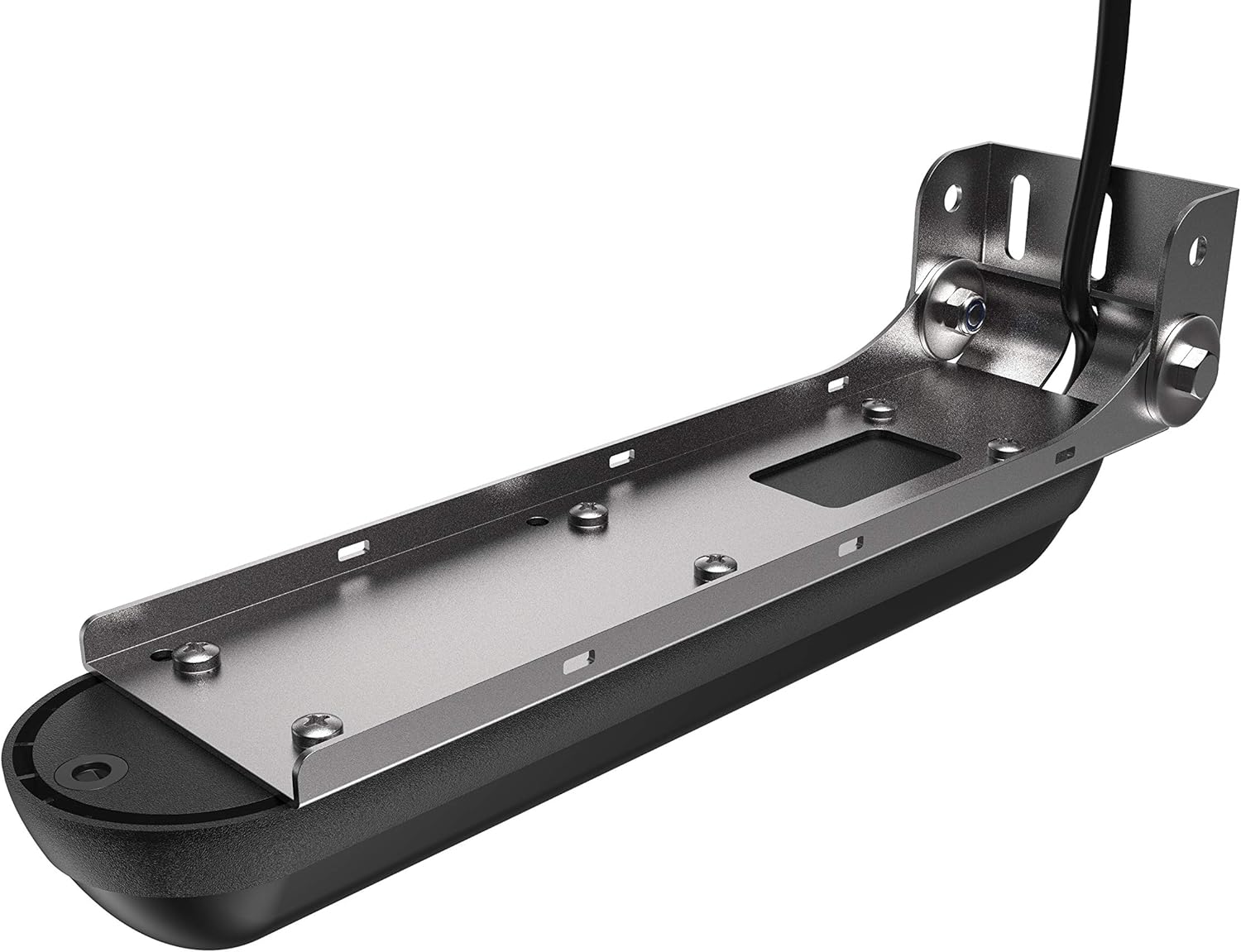

Lowrance Active Imaging 3-In-1 Transducer - Clear DownScan & CHIRP

Our review of the Lowrance Active Imaging 000-14489-001 transducer finds it best suited for serious anglers and small-boat anglers who need high-detail structure imaging at range. The single biggest reason to buy is the combination of CHIRP, SideScan and DownScan with FishReveal, which merges target separation and photographic DownScan clarity so fish and structure are easy to distinguish. In real use the unit delivers noticeably refined detail on rockpiles, weedbeds and drop-offs, making it a practical upgrade for compatible Lowrance and Simrad displays.

Key Features

• Active Imaging 3-in-1: Combines CHIRP, SideScan and DownScan to deliver multiple views of structure and targets from one transducer.
• Refined detail: High clarity and target separation help identify fish-holding structure like standing timber and rockpiles at greater distances.
• FishReveal: Merges CHIRP returns with DownScan images so fish are easier to recognize against cover on detailed imagery.
• Frequency versatility: Supports Medium and High CHIRP plus 455/800 kHz DownScan and SideScan frequencies for flexible tuning.
• Display compatibility: Works with Lowrance HDS LIVE, Elite FS and Simrad NSS evo3s and GO series, allowing straightforward integration with those units.

Who It's For

This transducer is aimed at anglers who prioritize high-resolution structure imaging and better target separation while fishing lakes, rivers or nearshore waters. If you run a compatible Lowrance or Simrad display and want clearer DownScan photos plus CHIRP detail on a single screen, this is a logical choice.

It is less suitable for boaters who lack a compatible display or who only need basic single-frequency sonar; those users should consider simpler transducers that match their head unit and budget. This is not targeted at multispecies commercial operations but rather recreational and tournament anglers seeking better situational awareness.

Pros & Cons

Pros

• Exceptional image quality in DownScan and SideScan modes improves identification of structure and fish.
• FishReveal smart target view combines CHIRP and DownScan for clearer separation of fish from cover.
• Supports both Medium and High CHIRP plus dual DownScan/SideScan frequencies for versatile performance.

Cons

• Compatibility is limited to specific Lowrance and Simrad displays, so it is not universal.
• Some customers have reported shipment issues such as missing hardware, so inspect the package on arrival.

Specifications

Our Verdict

The Lowrance Active Imaging 3-in-1 transducer is a solid value for anglers running compatible Lowrance or Simrad displays who want clearer structure and improved target recognition. Its combination of CHIRP and high-resolution DownScan with FishReveal supplies actionable detail at range, making it a worthwhile upgrade for serious recreational and tournament fishermen.

Frequently Asked Questions

Will this transducer work with any Lowrance unit?
It is compatible with Lowrance HDS LIVE and Elite FS series and certain Simrad models; check your display model for compatibility before purchase.

What frequencies does it support?
The unit supports Medium and High CHIRP (83/200 kHz) plus 455/800 kHz for DownScan and SideScan.

Does FishReveal require extra setup?
FishReveal works on supported displays by combining CHIRP and DownScan returns; some display configuration may be needed to optimize the view.
