LuxHeat 80 sq ft Floor Heating Mat Kit - Complete 120V System

Our review of the LuxHeat 80 sq ft Floor Heating Mat Kit finds it best suited for homeowners or contractors who want a reliable electric radiant floor system with a programmable thermostat included; the single biggest reason to buy is the all-in-one kit that bundles an 80 sq ft self-adhesive heating mat, a cable monitor/alarm and the OJ Microline UDG-4999 programmable thermostat with built-in GFCI, so the core electrical protection and temperature control arrive ready to install. It is a practical choice when installing heated floors under tile or laminate where a low-profile, UL-listed cable and dual-wire technology are important.

Key Features

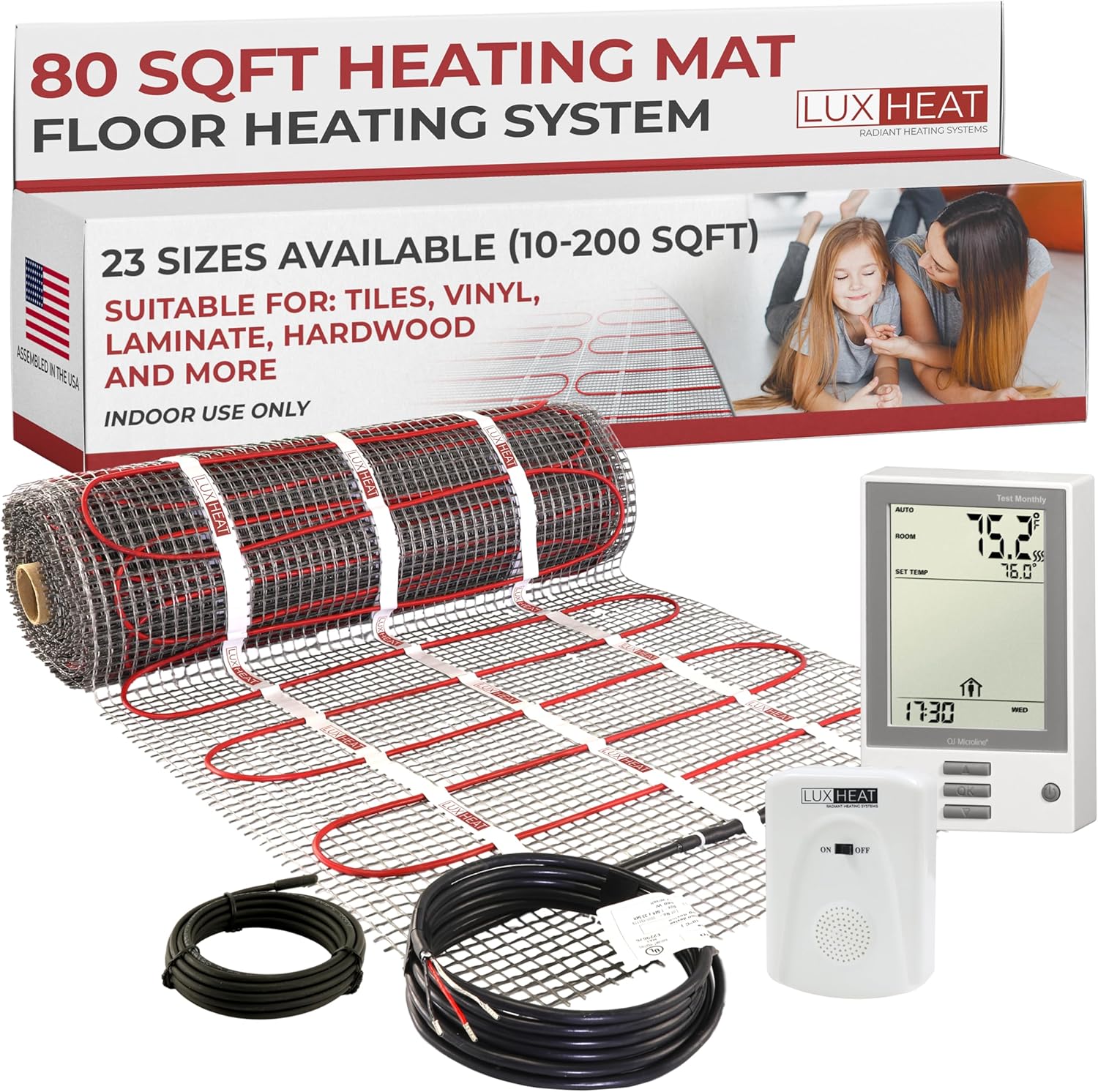

• Complete kit: Includes an 80 sq ft 3in pre-spaced self-adhesive mat, a cable monitor/alarm and a programmable thermostat with floor sensor so you get everything needed for a standard installation.
• Programmable control: The OJ Microline UDG-4999 thermostat provides 7-day programming, dual sensing and a child lock to maintain comfort while saving energy.
• Built-in safety: The thermostat integrates a Class A GFCI for ground fault protection, which simplifies wiring and adds a layer of safety for wet locations.
• Low EMF design: LuxHeat dual wire technology with an aluminum shield reduces electromagnetic fields to ultra-low levels for peace of mind.
• Easy layout: The 3in pre-spaced mat can be cut, turned, flipped or rotated to fit room shapes, and the self-adhesive mesh helps the mat lay flat on the sub-floor.
• Durable, thin cable: Heating wires are 1/8in diameter and must be embedded in thinset or self-leveling underlayment to preserve finished floor height and performance.

Who It's For

The LuxHeat kit is ideal for homeowners renovating bathrooms, kitchens or other tiled areas who want electric radiant heat with an integrated thermostat and GFCI. It also suits installers and contractors who appreciate a packaged solution that reduces the number of separate components to source and simplifies scheduling.

It is less appropriate for projects that require custom watt densities, commercial heavy-traffic installations where different specifications apply, or for users who need a low-voltage system; anyone needing a very thin film heater or a mat sized significantly smaller or larger than 80 sq ft should consider alternate options.

Pros & Cons

Pros

• Complete kit saves time by combining mat, alarm and a programmable thermostat with built-in GFCI.
• Programmable thermostat provides accurate floor and air sensing and power logging to manage energy use.
• Dual wire technology and UL listing for wet locations give an added level of safety.
• Self-adhesive mat and flexible installation options make layout straightforward for irregular rooms.

Cons

• Mat must be embedded in thinset or self-leveling underlayment, so installation still requires mortar work and cannot simply be laid under floating floors.
• Kit is a fixed 80 sq ft size, so it is not suited to very small or much larger single-room applications without cutting and planning.

Specifications

Mat size	80 sq ft (20in wide x 48.8 ft long)
Voltage	120 V
Current	8.0 A
Power	960 W (12 W/sq ft)
Heating wire diameter	1/8 in
Thermostat	OJ Microline UDG-4999 programmable, 7-day, built-in GFCI
Warranty	LuxHeat 25 Year limited warranty

Our Verdict

The LuxHeat 80 sq ft Floor Heating Mat Kit is a sensible, value-minded choice for residential tile or laminate installs where a complete electric radiant solution is preferred; the included OJ Microline programmable thermostat with built-in GFCI and the UL-listed dual-wire mat simplify setup and provide reliable warmth. Installers should note the requirement to embed cables in mortar or self-leveling compound, but for most bathroom and kitchen remodels this kit delivers performance, safety and long-term assurance at a competitive price.

Frequently Asked Questions

Can the heating mat be cut to fit smaller areas?
No; the mat mesh can be cut and the mat turned or rotated, but the red heater wire itself must never be cut or shortened and heating wires must be embedded in mortar or underlayment.

Is the thermostat safe for wet locations?
Yes; the OJ Microline UDG-4999 thermostat includes an integrated Class A GFCI and the cables are UL listed as safe for wet locations.

What floor coverings is this kit suitable for?
The kit is intended for installation under tile, laminates and similar finished flooring where the heating wires can be embedded in thinset, mortar or self-leveling underlayment.
