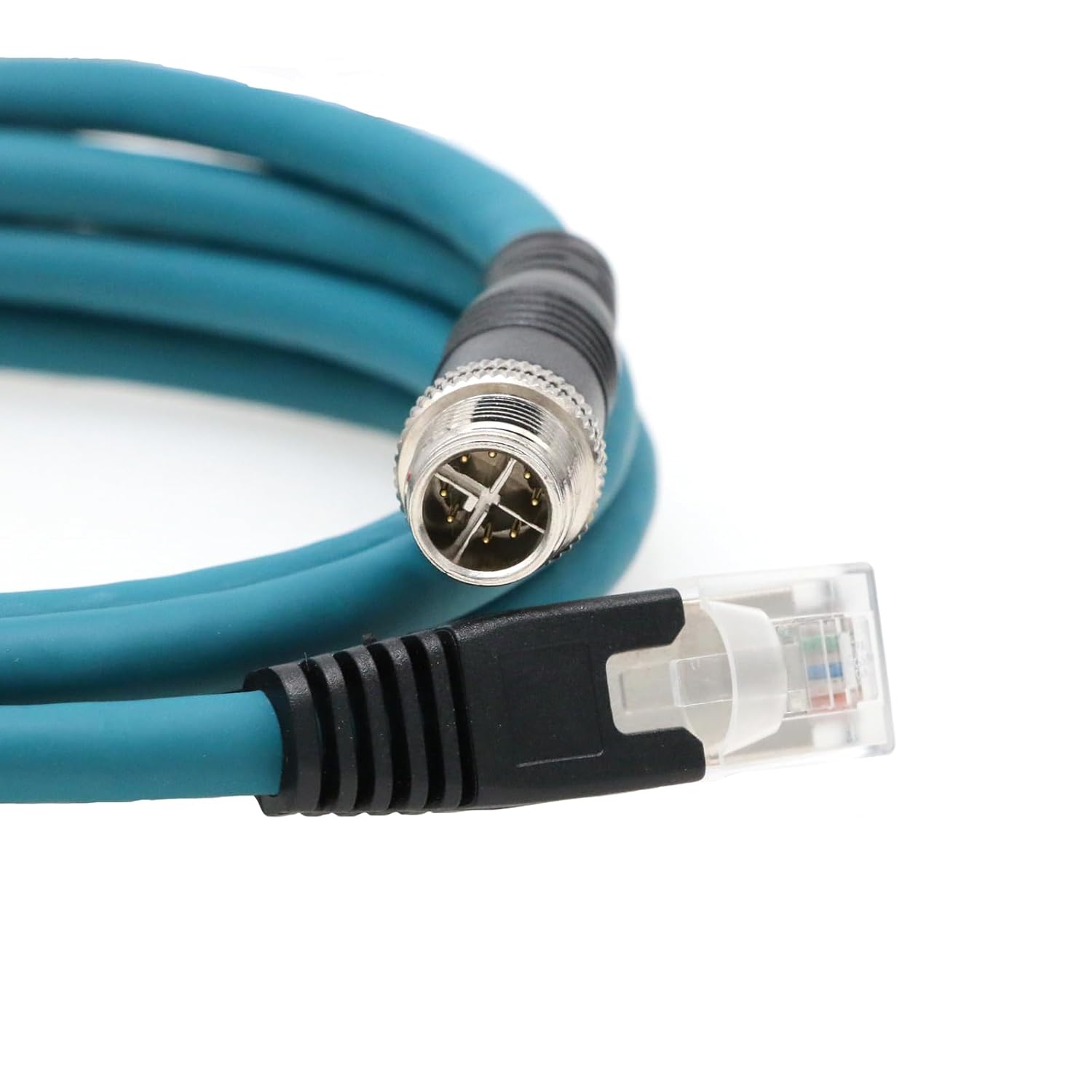

M12 Cat7e Ethernet Shielded Cable 8P X-Code Male to RJ45 - Industrial

Our review finds the M12 Cat7e Ethernet Shielded Cable is a focused solution for industrial GigE Vision camera setups and rugged networked machinery. In this review the cable stands out for its robust shielding and IP67 M12 X-Code connector that together protect signal integrity in electrically noisy or wet environments, making it a practical choice for machine vision systems such as Cognex, Matrix Vision and similar CCD camera deployments that need reliable high-speed Ethernet links.

Key Features

• M12 X-Code to RJ45: Provides a secure M12 8-pin X-Code male at one end and a standard RJ45 male at the other for direct camera-to-network connections.
• Shielded construction: Double shielded braid plus foil reduces EMI and RFI interference for more consistent Gigabit throughput in industrial environments.
• IP67 waterproof M12: The M12 connector is rated for IP67 protection so the cable holds up to moisture and dust at the connection point.
• Gold-plated contacts: Pure gold contacts on connectors and a pure copper RJ45 crystal head improve conductivity and lower impedance for high speed transmission.
• Pre-shipment testing: Each cable is tested to ensure there are no short circuits or potential breakdowns before shipping, reducing installation troubleshooting.

Who It's For

This cable is aimed at engineers and technicians installing industrial Ethernet links for machine vision cameras, GigE Vision systems, or factory automation where an M12 X-Code interface is required. It is especially suited to setups using Cognex, Matrix Vision, Basler, AVT or Sony CCD camera models that need a rugged mating connector on the camera side and a standard RJ45 on the network side.

Users who need long consumer-style patch cables for office use or those who do not require IP67 connector protection should look elsewhere for cheaper, less rugged alternatives. Also, this cable is for installations that require the M12 X-Code pinout; confirm camera and switch port compatibility before purchase.

Pros & Cons

Pros

• Robust double shielding delivers tangible protection from EMI/RFI in industrial settings.
• IP67-rated M12 connector and gold-plated contacts enhance reliability in wet or dusty conditions.
• Direct M12 X-Code to RJ45 wiring simplifies connections between industrial cameras and Gigabit networks.

Cons

• Specialized M12 X-Code connector limits use to equipment with matching ports, so it is not a universal office cable.

Specifications

Connector A	M12 8-pin X-Code male
Connector B	RJ45 male (industrial crystal head)
Cable Category	Cat6a / Cat7e class shielded Ethernet
Shielding	Double shielded: braid plus foil
Environmental Rating	M12 IP67 waterproof level
Length	2M
Quality Assurance	Each cable tested for short circuits and breakdowns before shipping

Our Verdict

The M12 Cat7e X-Code to RJ45 cable is a solid value for industrial camera and automation installations that require a sealed M12 interface and strong EMI protection. It is recommended for technicians who need dependable Gigabit links in noisy or wet environments, but not for general office patching due to the specialized connector.

Frequently Asked Questions

Will this cable work with GigE Vision cameras?
Yes, it is designed for GigE Vision and similar industrial cameras that accept an M12 X-Code 8-pin connector on the device end.

Is the M12 connector waterproof?
The M12 X-Code connector is rated IP67, providing protection against dust and temporary immersion at the connection point.

Does the cable reduce interference?
Yes, the combination of foil and braided shielding plus gold-plated contacts improves resistance to EMI/RFI and helps maintain stable high-speed transmission.
