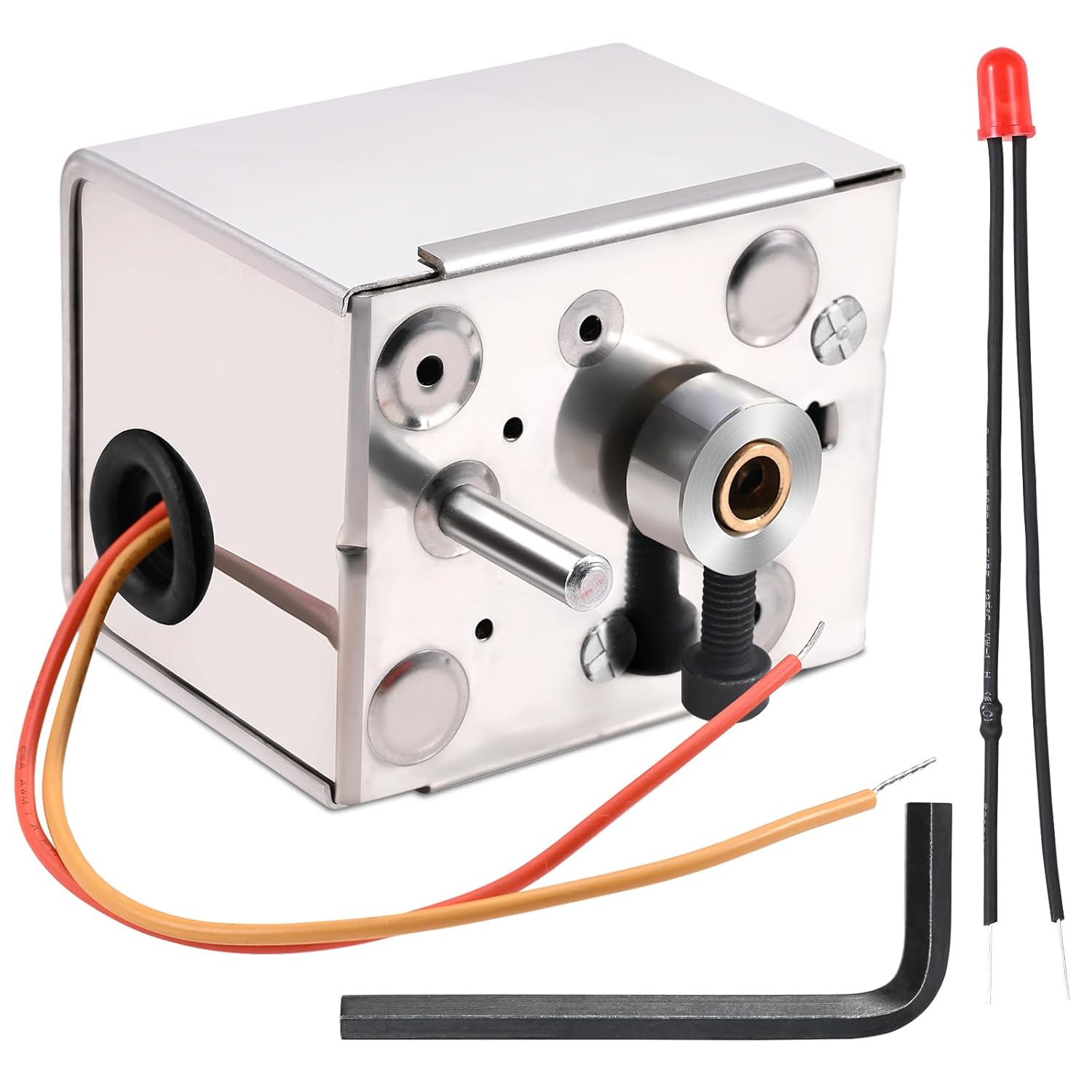

M847D1004 Damper Actuator Motor Replacement - 24 Vac Spring Return

In this review of the M847D1004 damper actuator motor replacement the bottom line is straightforward: this 24 Vac spring return actuator is a practical, budget-friendly swap for compatible Honeywell-style round damper shafts when you need reliable 90 degree spring-return operation. Installers and HVAC technicians will appreciate the direct 5/16' coupling and simple two-wire 24 V control, while property managers will like the metal gears and stainless housing for durability. The review focuses on fit, installation, and real-world performance compared to original ARD/ZD series parts.

Key Features

• Direct Replacement Compatibility: Fits Honeywell M847D and older ARD and ZD series round damper actuators so it is straightforward to swap in most zone systems.
• 24 Vac Spring Return: The spring return mechanism closes the damper quickly when de-energized, offering a reliable fail-safe for ventilation control.
• Direct Coupling: Connects directly to a 5/16' damper shaft for fast installation without adapters on most round shafts.
• Stainless Housing and Metal Gears: Built for indoor duct environments with rust-resistant materials intended to extend service life under typical HVAC conditions.
• Fast Operation Times: Energized travel completes in about 30 seconds while spring return completes in roughly 10 seconds, useful for responsive zone control.
• Broad Interchangeability: Compatible with several aftermarket two-wire spring-return damper actuators from other vendors, simplifying parts sourcing.

Who It's For

This actuator is aimed at HVAC technicians, maintenance teams, and experienced DIYers who need a like-for-like replacement for round-shaft zone dampers originally using Honeywell M847D series or similar two-wire spring-return motors. It is best when the existing installation uses a 5/16' shaft and requires a simple two-position 24 V control.

Those who should look elsewhere include installers working with rectangular ZD style dampers, or projects that demand a precision OEM branded warranty package; the sleeve fit and physical size have received some customer concern, so verify shaft dimensions and mounting clearances before purchasing.

Pros & Cons

Pros

• Simple two-wire control makes replacement quick and compatible with common thermostats and wall switches.
• Durable stainless housing and metal gears increase resistance to rust in duct environments.
• Direct 5/16' coupling reduces need for extra adapters and speeds installation.
• Fast spring-return timing provides a dependable fail-safe position on power loss.

Cons

• Some customers report mixed build quality impressions, so craftsmanship may vary unit to unit.
• The sleeve size can be tight on certain shafts; measure the damper shaft before ordering.

Specifications

Our Verdict

The M847D1004 replacement actuator is a sensible, cost-effective option for technicians needing a like-for-like 24 Vac spring-return motor for round-shaft ARD/ZD legacy dampers. It delivers dependable timing, adequate torque, and durable materials for typical duct applications, though buyers should confirm sleeve and shaft fit and accept that build quality impressions vary. Overall it offers good value when compatibility checks are made beforehand.

Frequently Asked Questions

Will this fit a rectangular ZD damper?
No. This motor is not compatible with Honeywell rectangular ZD dampers; it is intended for round-shaft ARD/ZD style and similar actuators.

What shaft size does it fit?
It couples directly to a 5/16' damper shaft; confirm shaft diameter and sleeve clearance before installation.

What happens on power loss?
The built-in spring return closes the damper in about 10 seconds when de-energized, providing a fail-safe position.
