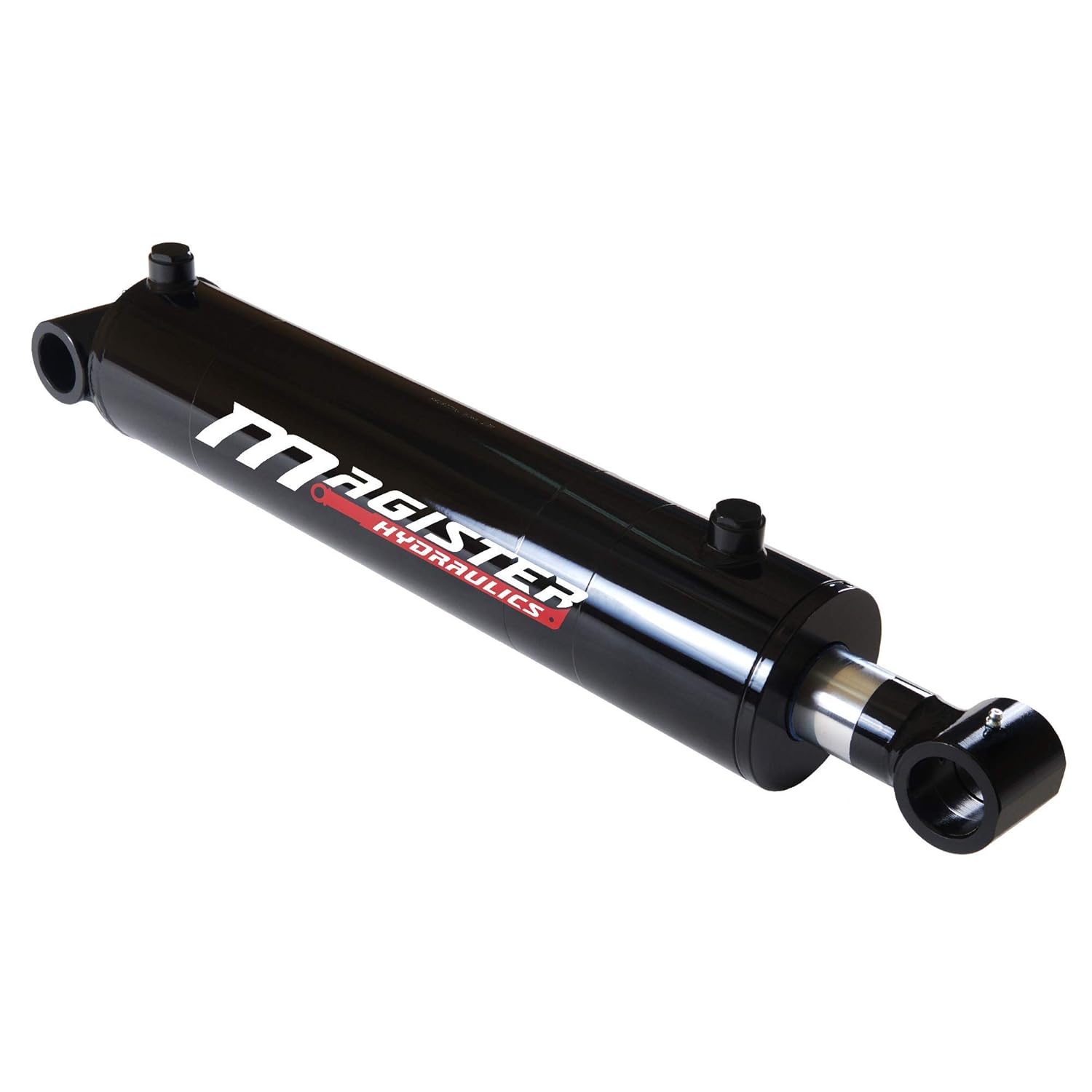

Magister Hydraulics Double Acting Cylinder 4in Bore 20in Stroke

In this review of the Magister Hydraulics Double Acting Hydraulic Cylinder the bottom line is straightforward: this is a rugged, replacement-ready welded cylinder for heavy equipment where strength and reliable stroke are required. The reviewer finds it particularly useful for front end loaders and similar implements because of the generous 4in bore and 20in stroke combined with a 2in rod that yields a compact retracted length of 30in and a 50in extended length. As the manufacturer, Magister Hydraulics specifies a 3,500 PSI rating and a high column load, which makes this cylinder a practical choice for repair shops and owners seeking a direct, heavy-duty swap.

Key Features

• Manufacturer direct: Being made by the manufacturer means buyers get the stated build details and a 2 year warranty without middleman markup.
• 4in bore, 20in stroke: The combination delivers strong push/pull force and useful travel for loader and lifting cylinder applications.
• Welded construction: A welded hydraulic cylinder body increases durability for repeated heavy use in field equipment.
• High rated pressure: Rated to 3,500 PSI to handle demanding hydraulic systems common on agricultural and construction machines.
• Universal cross tube ends: Cross tube mounting and 1.5in pin holes make it suitable as a direct replacement for many front end loader linkages.
• SAE 8 ports: O-ring boss SAE 8 ports provide a standard connection point for most hose fittings used on compact equipment.

Who It's For

This cylinder is aimed at owners and small shops that need a robust, serviceable replacement for front end loaders, skid steer attachments, backhoes, and other lifting implements where a 4in bore and a 20in stroke match the original equipment. The advertised column load and pressure rating make it appropriate for applications that demand a heavy-duty component rather than a light-duty, low-cost cylinder.

Those who should look elsewhere include users who need a custom porting arrangement, a different rod or pin diameter, or a tie-rod style cylinder instead of a welded unit. Also, if absolute leak-free performance is mission-critical out of the box, buyers should be prepared to inspect fittings since customer experience on leak resistance is mixed.

Pros & Cons

Pros

• Strong construction and a high 3,500 PSI rating suitable for heavy tasks.
• Manufacturer-built unit with a 2 year warranty provides confidence in parts and support.
• Universal cross tube ends and common SAE 8 ports simplify replacement and hookup.
• Large column load capacity supports heavy vertical loads without buckling.

Cons

• Some customers report variability in leak resistance, so a careful inspection at installation is advised.
• May require minor custom fitment for machines that deviate from standard pin centers or port orientations.

Specifications

Our Verdict

The Magister Hydraulics double acting cylinder is a practical, hard-working replacement for front end loaders and similar equipment where a 4in bore and 20in stroke are needed. It offers manufacturer-level specification, welded durability and a useful warranty, delivering solid value for owners and shops that can verify fitment and inspect connections during installation.

Frequently Asked Questions

Is this cylinder suitable for front end loader replacements?
Yes, the cross tube ends, 1.5 in pin holes and the 4 in bore with 20 in stroke make it a common direct replacement for many loaders.

What pressure can the cylinder handle?
The cylinder is rated to 3,500 PSI which is appropriate for most heavy equipment hydraulic systems.

Does it come with a warranty?
Yes, the manufacturer provides a 2 year warranty and the unit is made in Europe.
