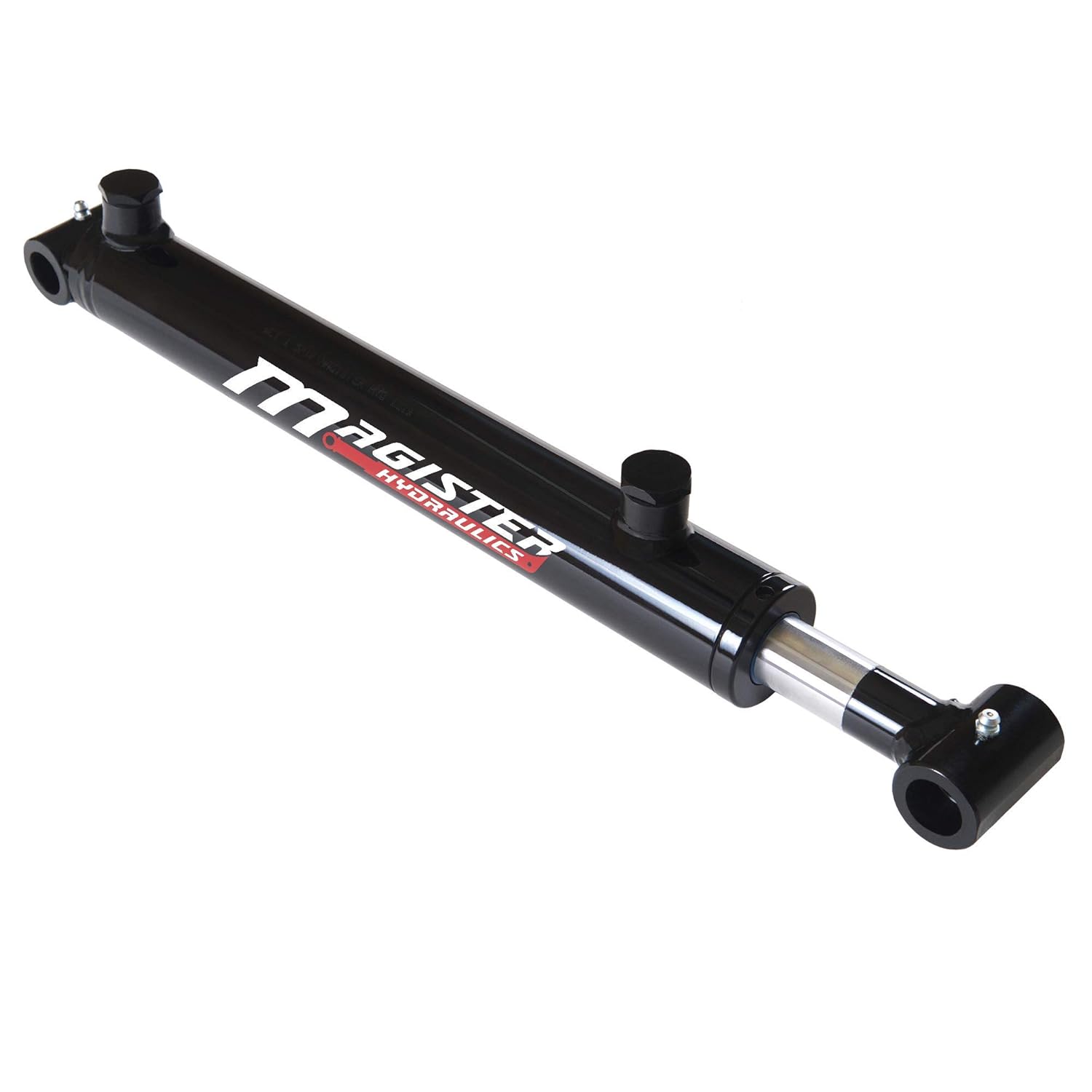

Magister Hydraulics Double Acting Hydraulic Cylinder 1.5x20 - Durable

In this review the Magister Hydraulics Double Acting Hydraulic Cylinder 1.5" bore with a 20" stroke is evaluated for use as a replacement lift cylinder on front end loaders and similar equipment. The bottom line: this is a straightforward, heavy-duty welded cylinder built by the manufacturer for customers who need a direct replacement with predictable dimensions and robust ratings. Its main appeal is the combination of a 1.5" bore, a 1" rod and a 20" stroke delivered in a universal cross tube design that fits many loader mountings without modification.

Key Features

• Manufacturer direct: Being made by the manufacturer means greater control over build quality and a clearer warranty path for two years.
• Compact power: The 1.5' bore and 1' rod diameter provide a solid balance of force and responsiveness for typical loader lift tasks.
• Serviceable ports: SAE 6 O-ring boss ports allow secure hydraulic connections compatible with standard fittings.
• High working pressure: Rated to 3500 PSI so it will perform reliably under heavy loads common to lifting applications.
• Universal ends: Cross tube ends with 0.75' pin holes make it an easy drop-in replacement for many front end loader linkages.
• Robust construction: A welded body and a column load rating of 5,300 lbs give confidence for repeated lifting cycles.

Who It's For

The cylinder suits owners and technicians who need a dependable replacement for front end loaders, compact tractors, or other small to mid-size lifting equipment that use a universal cross tube mount. Contractors, farmers and maintenance shops will appreciate the clear dimensional specs (retracted 28', extended 48') that help confirm fit before ordering.

It is less suited to custom fabrications where nonstandard ports, exotic rod coatings, or precision tolerances are required; customers needing specialized seals or stainless components should consider a custom order rather than this standard welded unit.

Pros & Cons

Pros

• Manufacturer-built item with a 2 year warranty provides assurance on construction and support.
• Compact 1.5' bore and 1' rod deliver useful lifting force while keeping the cylinder size manageable.
• Standard SAE 6 ports and 0.75' pin holes simplify installation in many existing systems.
• Welded construction and 5,300 lb column load rating make it durable for repeated heavy use.

Cons

• Standard welded design limits choices for special materials or finishes, so it may not suit corrosive environments without additional protection.
• Only one mounting style (cross tube) is provided, so adapters may be needed for very different linkages.

Specifications

Bore	1.5 in (outer dia. 1.88 in)
Stroke	20 in
Rod Diameter	1 in
Retracted / Extended Length	28 in / 48 in
Rated Pressure	3500 PSI
Column Load	5,300 lbs
Ports	SAE 6 (O-ring boss)

Our Verdict

The Magister Hydraulics 1.5' bore, 20' stroke double acting cylinder is a practical, well-specified replacement for front end loaders and similar equipment. Its manufacturer-built construction, clear dimensions, and 3500 PSI rating make it good value for users who need a reliable, serviceable cylinder without custom options. Choose this if you need a straightforward drop-in solution backed by a two year warranty.

Frequently Asked Questions

Is this cylinder a direct replacement for loader lift cylinders?
Yes, the universal cross tube ends and 0.75' pin holes are designed for common loader mountings, but confirm the retracted length and pin spacing before ordering.

What hydraulic fittings does it accept?
The cylinder uses SAE 6 O-ring boss ports, compatible with standard SAE 6 fittings for secure connections.

What environments is this suitable for?
It is a welded steel cylinder made in Europe and suitable for general agricultural and construction use; for corrosive or marine environments additional protective coatings are recommended.
