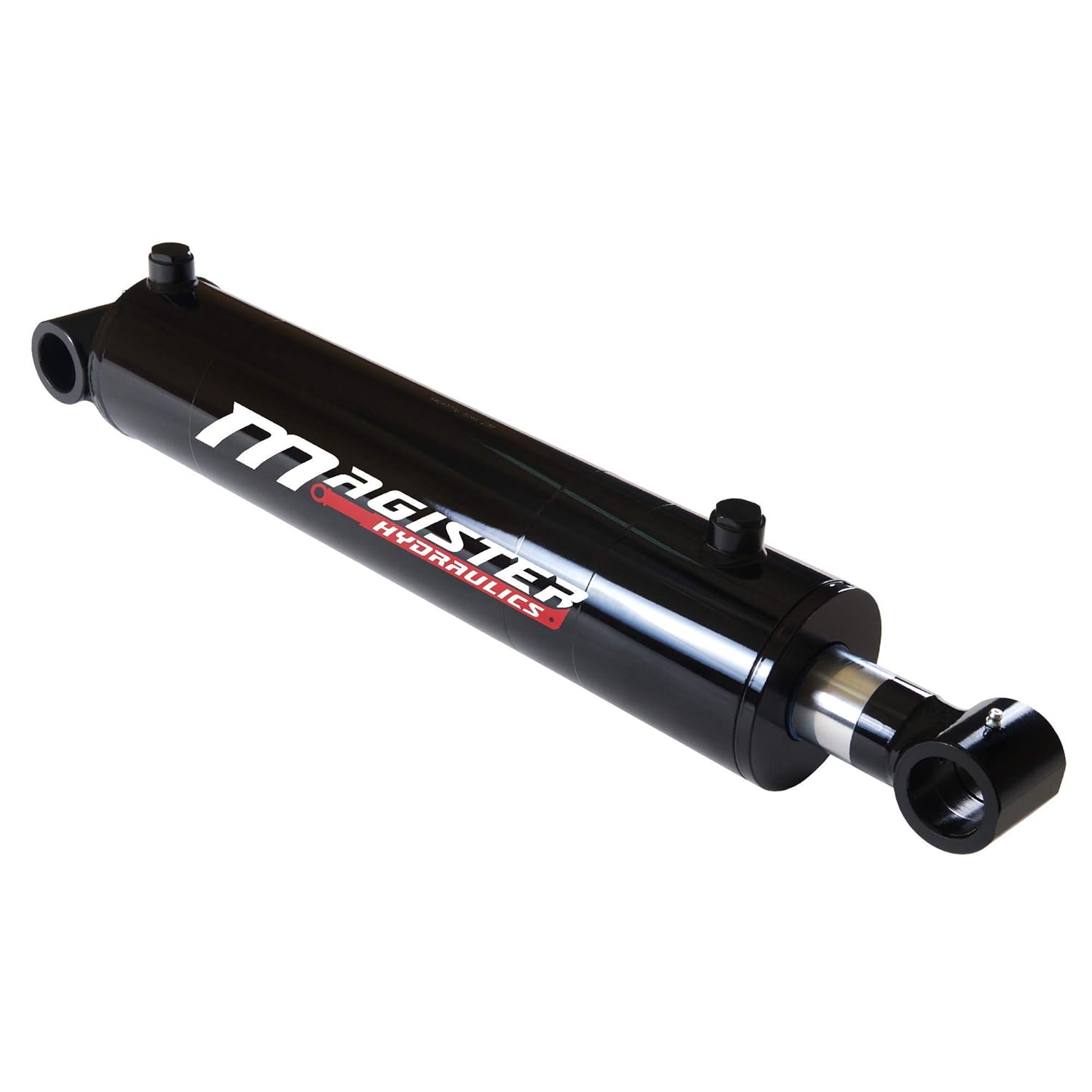

Magister Hydraulics Double Acting Hydraulic Cylinder 3 in Bore 22 in

In this review the Magister Hydraulics Double Acting Hydraulic Cylinder is evaluated for users who need a rugged replacement cylinder for equipment such as front end loaders. The bottom line: this is a solid, no-frills welded hydraulic cylinder designed for heavy duty use, and its biggest selling point is that it is a manufacturer-built unit with a clear specification set and a 2 year warranty. For contractors and equipment owners needing a 3 in bore, 22 in stroke cylinder with cross tube ends, this review explains where it excels and what to expect.

Key Features

• Manufacturer built: Being the actual manufacturer means replacement parts and consistent build standards are more likely than from resellers.
• 3 in bore, 22 in stroke: The cylinder delivers a long 22 in stroke from a compact 3 in bore for applications that require extended travel without a large outer diameter.
• Heavy duty rating: Rated to 3500 PSI and a column load of 21,000 lbs, it is suitable for demanding lifting and pushing tasks on agricultural and construction equipment.
• Universal cross tube ends: Cross tube ends and 1.0 in pin holes make the cylinder a straightforward replacement for many front end loader mounts.
• Robust construction: Welded cylinder construction and a 1.5 in rod diameter create a durable assembly intended for frequent cycle use.
• European manufacture and warranty: Made in Europe and backed by a 2 year warranty, offering reassurance on manufacturing quality and support.

Who It's For

The Magister cylinder is best suited for owners of tractors, loaders, skid steers, and other hydraulic lift equipment seeking a direct, heavy duty replacement with clear mechanical specs. It is valuable for technicians and fleet managers who prefer components from a manufacturer to simplify sourcing and ensure consistent dimensions and port types.

Those who should look elsewhere include users needing custom mounts, unusual port types, or very lightweight cylinders for compact hobby projects. Also, if a non-welded or serviceable removable barrel design is required for in-field rebuilds, a different model may be more appropriate.

Pros & Cons

Pros

• Well specified 3 in bore and 22 in stroke make it a direct fit for many loader applications.
• High rated pressure of 3500 PSI and a 21,000 lb column load provide strong lifting capability.
• Manufactured unit with a 2 year warranty and European production offers traceable quality.
• Cross tube ends and SAE 8 O-ring boss ports simplify installation on common hydraulic circuits.

Cons

• Welded construction means field rebuilding is more difficult compared with tie-rod designs.
• Specification set is fixed; no options listed for different rod finishes or custom stroke lengths.

Specifications

Brand	Magister Hydraulics
Bore	3 in (outer dia. 3.38 in)
Stroke	22 in
Rod diameter	1.5 in
Retracted / Extended length	Retracted 13 in, Extended 52 in
Rated pressure	3500 PSI
Ports	SAE 8 (O-ring boss)
End style	Cross tube hydraulic cylinder, pin holes 1.0 in

Our Verdict

The Magister Hydraulics 3 in bore, 22 in stroke double acting cylinder is a practical, heavy duty replacement for front end loaders and similar equipment. Its clear specification, manufacturer backing, and 2 year warranty make it a good value for contractors and fleet operators who need dependable lifting power and straightforward installation. It is less suitable for those who require rebuildable tie-rod construction or custom dimensions.

Frequently Asked Questions

Is this cylinder a direct replacement for loader cylinders?
It is designed as a universal hydraulic cylinder with cross tube ends and 1.0 in pin holes, making it a common direct replacement for many front end loader applications.

What ports does the cylinder use?
The cylinder uses SAE 8 O-ring boss ports, which fit standard SAE 8 hydraulic fittings.

What warranty and origin apply to this product?
The cylinder is made in Europe and comes with a 2 year warranty from the manufacturer.
