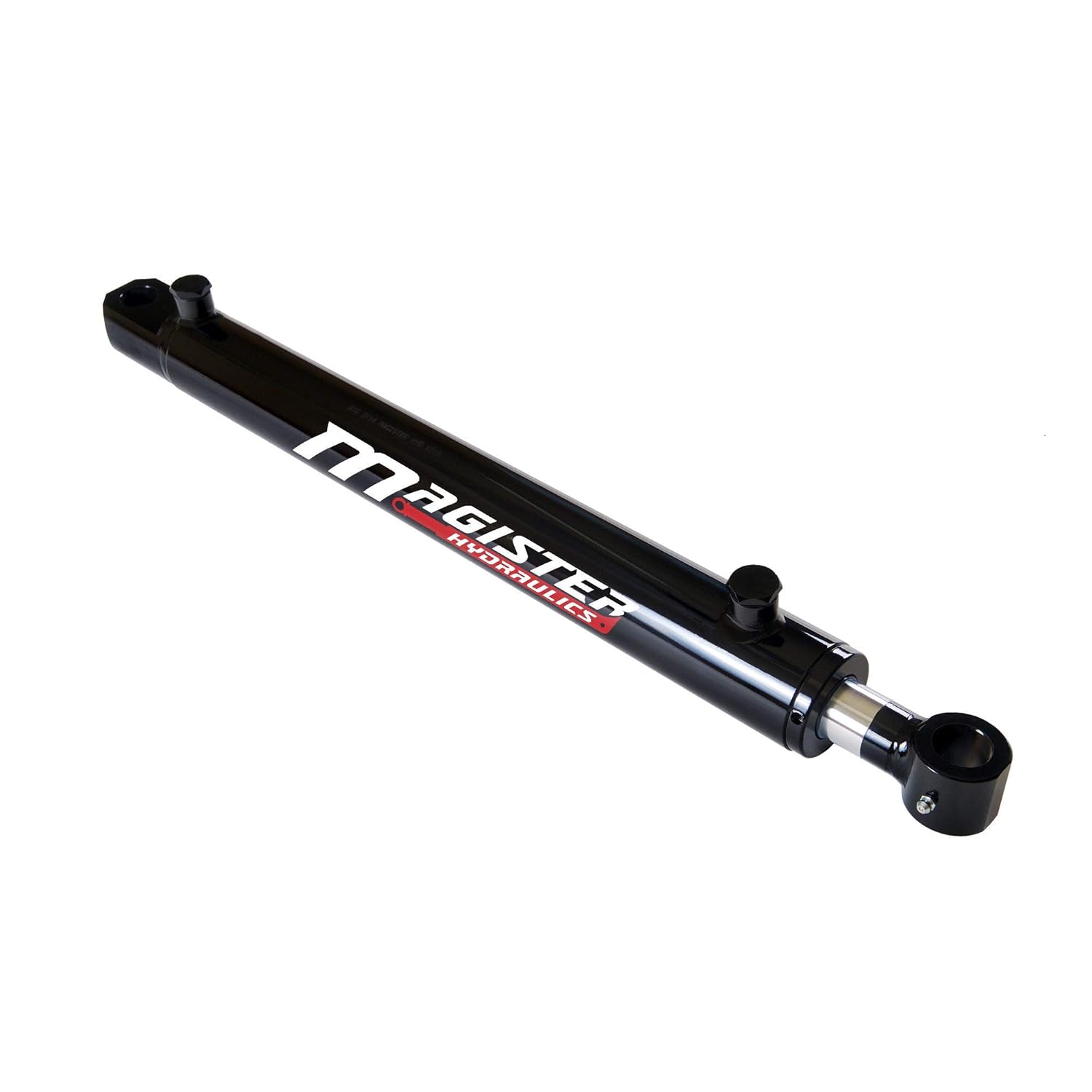

Magister Hydraulics Tang Universal Hydraulic Cylinder 1.5x12 - Durable

In this review of the Magister Hydraulics Double Acting Hydraulic Cylinder, the bottom line is clear: this is a no-nonsense replacement cylinder for front end loaders and similar hydraulic applications that need a robust, serviceable unit. The reviewer found the cylinder best suited to small tractors and compact loaders where a 1.5' bore and a 12' stroke provide reliable force and travel. The review highlights build quality, ease of installation and seal reliability as the single biggest reasons to buy, especially for owners seeking a welded, European-made cylinder from the original manufacturer rather than a reseller.

Key Features

• Manufacturer direct: Being made by Magister Hydraulics means you get factory specifications and a two year warranty without intermediary markup.
• 1.5' bore with 1' rod: The 1.5' bore and 1' rod deliver solid pushing force while keeping the package compact for loader linkage.
• 12' stroke, compact overall length: With 21' retracted and 33' extended length the stroke fits common loader geometry and restores original travel.
• Rated to 3500 PSI: The 3500 PSI rating provides assurance for typical loader pressures and consistent performance under load.
• Universal tang style: Tang mounting with 0.75' pin holes makes the cylinder a straightforward replacement for many front end loader pins.
• SAE 6 O-ring boss ports: Standard SAE 6 ports simplify hydraulic hose and adapter choices for installation and service.

Who It's For

The Magister tang style cylinder is aimed at owners of compact tractors, small loaders and agricultural equipment who need a direct replacement cylinder with reliable sealing and fit. It is especially useful for users replacing worn or leaking loader cylinders on machines like Hinomoto and Yanmar loaders where the tang mount and pin hole size match factory geometry.

This cylinder is less suitable for applications that require custom mounting styles, extremely high pressure systems above 3500 PSI, or precision rod guidance for side loads; those users should consider custom fabricated or guided-cylinder solutions instead of this welded, universal design.

Pros & Cons

Pros

• Solid build quality and dependable seals reported by users for leak-free operation.
• Good fit and straightforward installation for common loader applications, saving time on retrofits.
• Factory direct with a two year warranty offers value for money and manufacturer support.
• Standard SAE 6 ports and tang mount make replacements simple for most service shops.

Cons

• Rated to 3500 PSI, so it is not intended for systems that routinely exceed that pressure.
• Tang-style mount may not match every machine, so measurements must be checked before ordering.

Specifications

Bore	1.5' (outer dia. 1.88')
Stroke	12'
Rod diameter	1'
Retracted / Extended length	21' / 33'
Rated pressure	3500 PSI
Column load	5,300 lbs
Ports	SAE 6 (O-ring boss)

Our Verdict

The Magister Hydraulics tang universal cylinder is a sensible, cost-effective replacement for compact tractor and loader applications where a welded, double acting unit is needed. It combines solid build quality, correct dimensions for many front end loaders and a two year warranty, making it a good value for owners who want a dependable factory-made cylinder rather than a rebuilt or generic part.

Frequently Asked Questions

Is this cylinder a direct replacement for loader cylinders?
The tang mount and 0.75' pin holes match many front end loaders, but you should verify pin spacing and mounting geometry before purchase.

What pressure can the cylinder handle?
This welded double acting cylinder is rated to 3500 PSI, suitable for typical compact loader systems but not for systems that exceed that pressure.

Does it come with a warranty?
Yes, the cylinder is backed by a two year warranty from the manufacturer.
