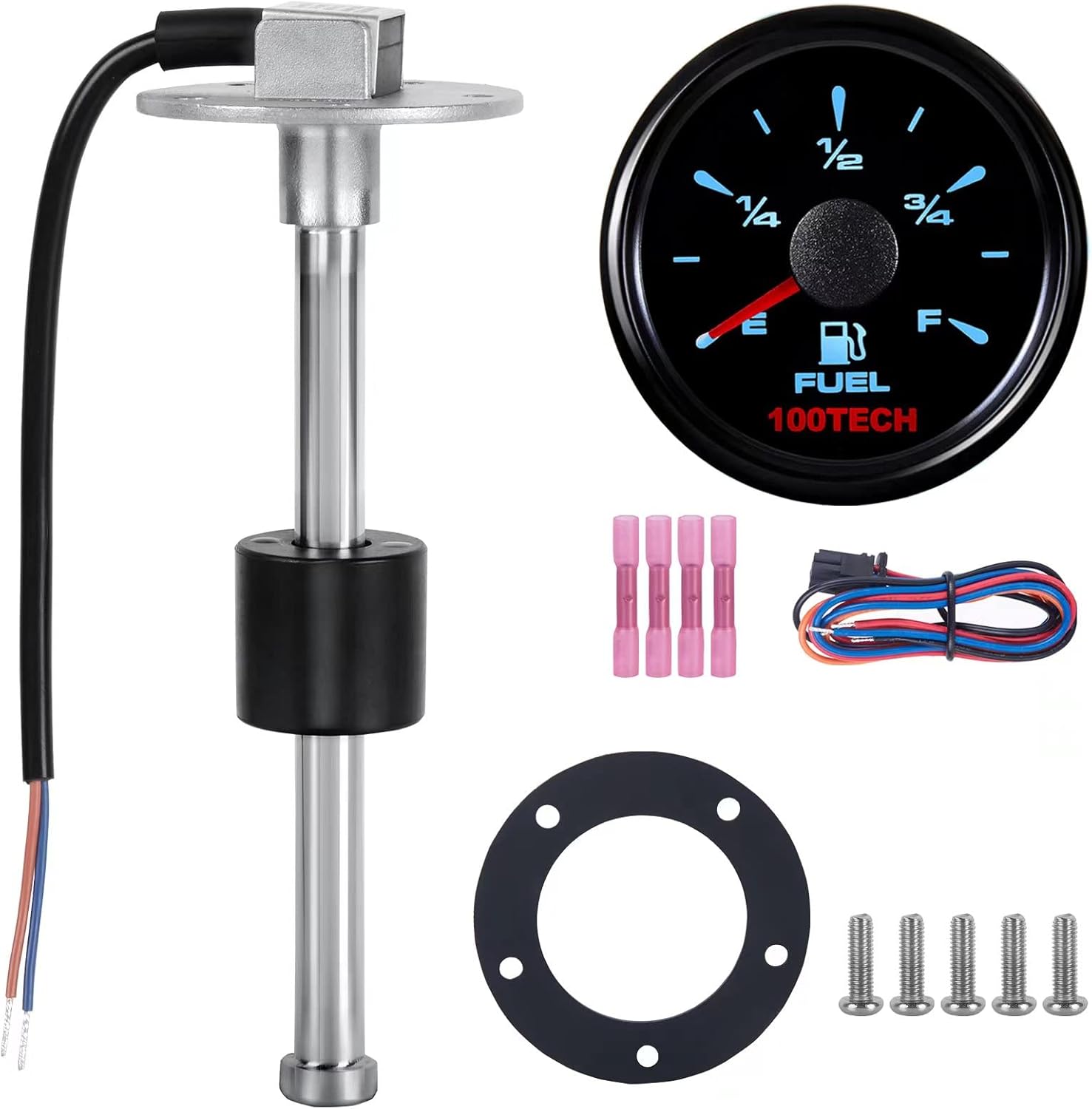

Marine Fuel Gauge and Sending Unit Kit 12ft SUS316 - Accurate Readings

In this review of the Marine Fuel Gauge and Sending Unit Kit, the bottom line is straightforward: it is for boat and vehicle owners who want a durable, more stable fuel level readout than traditional swing-arm senders. The kit pairs a 240-33 ohm reed switch sender with a smooth-sweeping stepper motor gauge so users get continuous, less-sloppy readings in rough conditions. The build emphasizes marine-grade materials and easier installation, making it an attractive replacement for owners seeking longevity and improved accuracy without complex calibration.

Key Features

• Finer Resolution: The sender provides a 10mm resolution on applicable lengths, producing more frequent level updates than coarser 21mm senders.
• Durable Construction: The sender rod, gasket and mounting screws are 316 stainless steel to resist corrosion in marine environments.
• Reed Switch Technology: Magnetic reed switches and fixed resistors mean no swing arm float, reducing slosh-induced needle movement.
• Smooth Gauge Sweep: The gauge uses a stepper motor for a smooth needle that resists bouncing when the tank contents move.
• Bright, Selectable Backlight: Eight backlight colors let you match dash lighting and improve nighttime readability.
• Complete Kit: Includes gasket, 5 mounting screws and wiring terminals plus illustrated instructions for straightforward installation.

Who It's For

This kit is best for small- to medium-sized boat owners, RV and truck owners who want a direct replacement sender with improved stability in choppy conditions and a matching gauge that reads smoothly. It suits those who value corrosion resistance and a tidy, plug-and-play install with common 52mm gauge cutouts.

It is less appropriate for users who require a linear output other than 240-33 ohm or who must match an uncommon proprietary gauge signal; the sender has a non-linear output and is designed to pair with standard non-linear gauges.

Pros & Cons

Pros

• Solid 316 stainless hardware and rod reduce corrosion risks and extend service life.
• Reed switch design eliminates swing-arm mechanics for fewer moving parts and steadier readings.
• Gauge offers a smooth stepper-motor sweep and eight selectable backlight colors for good visibility day or night.

Cons

• The sender uses a non-linear 240-33 ohm output and must be matched to a compatible gauge; it is not universal for all gauge types.
• Requires a tank depth allowance (sender should be about 1' shorter than tank depth) and a 1-1/2' hole if drilling, which may need planning.

Specifications

Signal output	240-33 ohm (240 ohm empty, 33 ohm full)
Sender lengths	12' (300mm) available; other lengths implied in series
Resolution	10mm for listed short lengths
Gauge size	52mm install diameter (2-1/16')
Voltage	9-32V DC (fits 12V-24V systems)
Bezel material	316 stainless steel
Ingress protection	IP67 waterproof and dustproof

Our Verdict

The Marine Fuel Gauge and Sending Unit Kit is a practical upgrade for boat, truck or RV owners who want steadier, more detailed fuel readings and marine-grade durability. It delivers better resistance to slosh and corrosion and includes all mounting hardware, making it solid value for those matching the 240-33 ohm non-linear signal and a 52mm gauge opening.

Frequently Asked Questions

Can this sender be used on a water tank?
Yes, the sender supports fuel and water tank measurement so it can be used where compatible with the tank media and 240-33 ohm gauge.

Will it fit my existing gauge opening?
The gauge uses a 52mm install diameter (2-1/16') and an SAE 5-hole mounting pattern, so it fits standard 52mm openings.

Is the kit corrosion resistant for marine use?
Yes, the rod, gasket and mounting screws are 316 stainless steel and the bezel is 316 stainless, improving long-term marine corrosion resistance.
