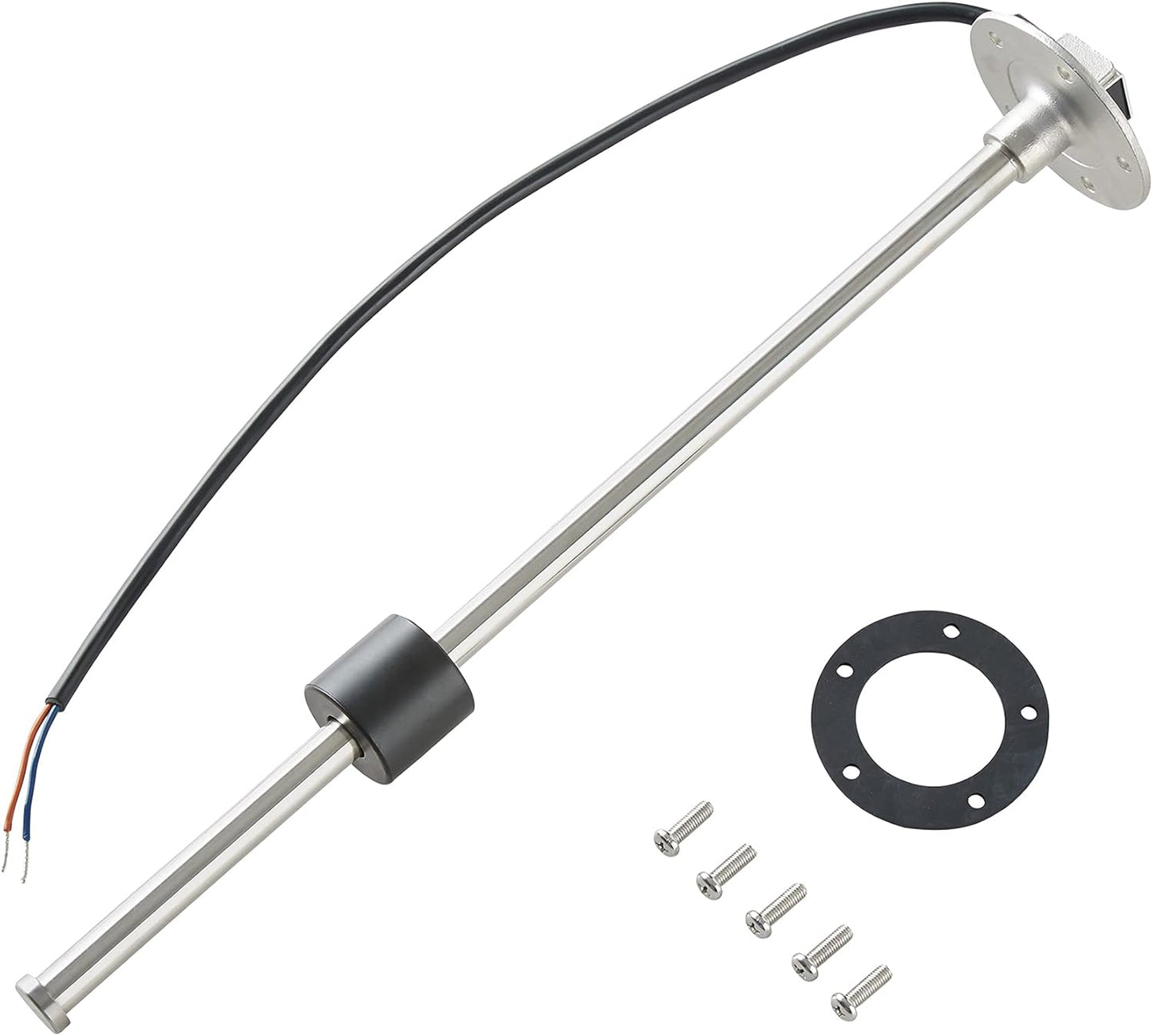

Marine Fuel Sending Unit 240-33 ohms 6.5ft - Durable Reed Switch

In this review of the Marine Fuel Sending Unit, the bottom line is simple: this sender is for boat, truck or RV owners who need a rugged, reliable replacement for a failing swing-arm sender. The biggest reason to buy is the doughnut float with a reed switch design, which eliminates fragile moving parts and improves long-term durability and signal stability. Installation is straightforward and the sender pairs with standard non-linear gauges, making it a practical choice for anyone restoring or upgrading a fuel or water level gauge system.

Key Features

• Durable reed switch: The reed switch design reduces wear because there are no sliding contacts, providing more reliable operation than a swim arm sender.
• Finer resolution: The 6.5' unit offers a 10mm resolution, giving smoother, more continuous level readings in shorter tanks.
• Rugged construction: The body uses SUS 316 stainless steel and a heavy duty mounting pattern for corrosion resistance in marine environments.
• Standard output: Signal output of 240 ohms to 33 ohms ensures compatibility with standard non-linear fuel gauges designed for that range.
• Complete kit: The sender ships with a gasket, mounting screws and illustrated wiring instructions to simplify installation.
• Float diameter and fit guidance: The float is 1.38 in (35mm) and a 1-1/2 in (38mm) hole is recommended if drilling is required.

Who It's For

This sending unit is aimed at owners of boats, campers, trucks or cars who want a long-lasting replacement for a worn-out swingarm sender and who already have, or plan to use, a gauge that accepts a non-linear 240-33 ohm signal. It is especially relevant for shorter tanks where finer resolution matters and for marine environments where corrosion resistance is important.

It is not the best choice for users who require a strictly linear output gauge or for those whose tank depth would be too short for the 6.5' length; note the sender should be about 1 in shorter than a plastic tank depth or 0.5 in shorter for metal tanks to avoid bottom contact.

Pros & Cons

Pros

• Solid, corrosion-resistant materials and a stainless SUS 316 body improve longevity in marine use.
• Reed switch design with no sliding parts reduces failure points and improves reliability.
• Easy installation with included gasket, screws and clear wiring instructions saves time.
• Higher resolution for the 6.5' length produces smoother readings in short tanks.

Cons

• Non-linear output requires a compatible gauge; it will not match linear-signal gauges.
• Some users report mixed fit with mounting screw alignment, so minor adjustment or re-drilling may be needed.

Specifications

Our Verdict

The AODITECK Marine Fuel Sending Unit is a solid, value-driven replacement for users who need a reliable non-linear sender with improved durability. Its reed switch design, SUS 316 construction and finer 10 mm resolution make it well suited to boats, RVs and trucks that use compatible gauges, and the included hardware and instructions make installation quick. For those with incompatible linear gauges or exacting mounting hole fit needs, check fitment before ordering.

Frequently Asked Questions

Will this sender work with my fuel gauge?
It will work with gauges designed for a non-linear 240-33 ohm signal; confirm your gauge accepts that range before installing.

How deep can the tank be for this 6.5 in unit?
The sender should be about 1 in shorter than a plastic tank depth or 0.5 in shorter than a metal tank to avoid the float hitting the bottom.

Is installation difficult?
Installation is generally straightforward and takes about 15 minutes using the included gasket, screws and wiring diagram, though some users may need to adjust mounting screw alignment.
