MAXCHEER SSH-Coil Splitting Loaded Pickguard - Versatile High Output

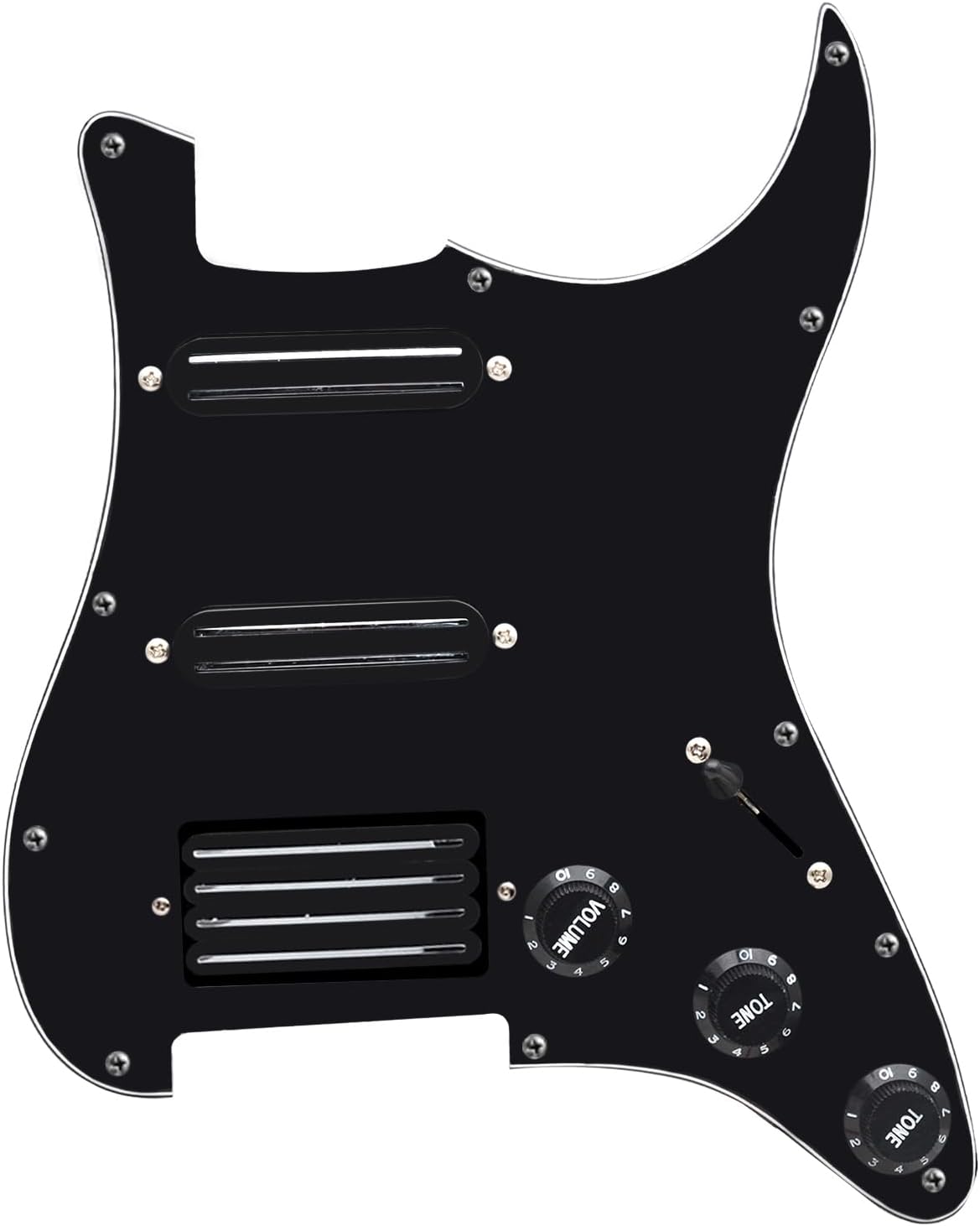

In this review of the MAXCHEER SSH-Coil Splitting loaded pickguard, the bottom line is simple: it is for players who want a plug-and-play upgrade that adds high-output tones and coil-splitting flexibility without rewiring the guitar from scratch. The reviewer found the prewired configuration, which includes two mini humbuckers and a four-coil bridge pickup with a 5-way switch and three two-way on/on coil-split switches, makes it straightforward to expand tonal options. It is particularly useful for hobbyists and modders comfortable with minor pickguard fitting work.

Key Features

• Prewired Loaded Pickguard: Arrives ready to install with one volume and two tone controls, saving time compared with building a wiring harness from scratch.
• Versatile Pickup Layout: Two mini humbuckers and one 4-coil bridge pickup provide thick humbucker tones and multiple coil-split voices for single-coil-like clarity.
• Coil Split Switching: Three 2-way on/on switches let players split individual pickups, granting greater tonal versatility on stage or in the studio.
• High Output Electronics: D.C. resistance of 9K for neck/middle (4.5K split) and 18K for bridge (9K split) yields a strong signal suited to overdrive and amp-driven tones.
• Standard Wiring Colors: Four conductor leads use black hot, green ground, and red/white for coil split connections, making it easy to trace or modify.
• Durable Pickguard Material: Three-ply PVC pickguard with a protective film on the surface arrives ready to be trimmed and peeled after installation.

Who It's For

This loaded pickguard is aimed at guitarists who want to upgrade tonal options quickly: players who need higher output humbucker tone with the ability to split coils for cleaner sounds, and DIYers who are comfortable aligning and possibly modifying pickguard screw holes. The included wiring setup and labeled conductor colors reduce guesswork for those doing the swap themselves.

Players who require a perfect bolt-in fit for vintage or uncommon body hole patterns, or who insist on exact OEM routing without any modification, may want to consider custom routed solutions instead, since the pickguard lists 11 screw holes and notes that some alignment work can be necessary.

Pros & Cons

Pros

• Plug-and-play prewired layout speeds installation and testing in most Strat-style routes.
• Coil-splitting switches add a broad palette of tones from thick humbucker to brighter split modes.
• Higher D.C. resistance values give a powerful, aggressive output suited to drive-based amps and pedals.
• Standard four-conductor wiring colors make future modifications or repairs straightforward.

Cons

• May require minor pickguard hole alignment or routing on some guitars to fit exactly, so not truly drop-in for every model.
• Material is PVC pickguard rather than higher-end molded plastics, which some players may prefer to upgrade later.

Specifications

Our Verdict

The MAXCHEER SSH-Coil Splitting loaded pickguard is a cost-effective way to add high-output humbucker tones and flexible coil-split options without redesigning a guitar's electronics. It is best for DIYers and players willing to do light fitting; its clear wiring and strong output make it good value for the price and a practical tonal upgrade for many Strat-style instruments.

Frequently Asked Questions

Will this fit my Strat-style guitar?
The pickguard is designed for common Strat-style routes but lists 11 screw holes and warns that minor alignment or trimming may be necessary for nonstandard bodies.

How are the coil splits wired?
Red and white wires are for coil splitting with three on/on switches; black is hot and green is ground, following standard four-conductor conventions.

What are the pickup magnet and output specs?
Magnets are ceramic; neck and middle measure about 9K D.C. resistance (4.5K when split) and the bridge measures 18K (9K when split), indicating high output.
