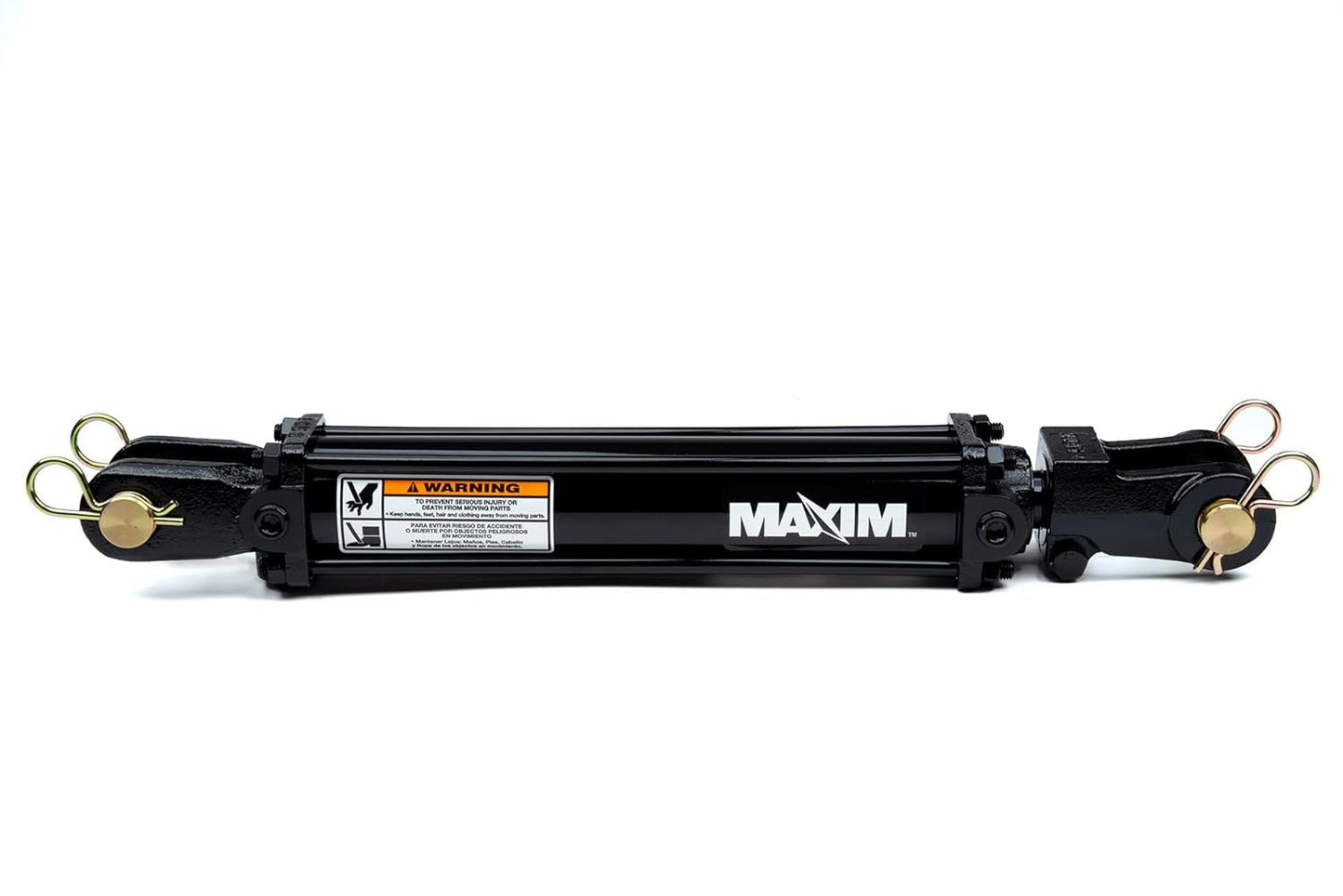

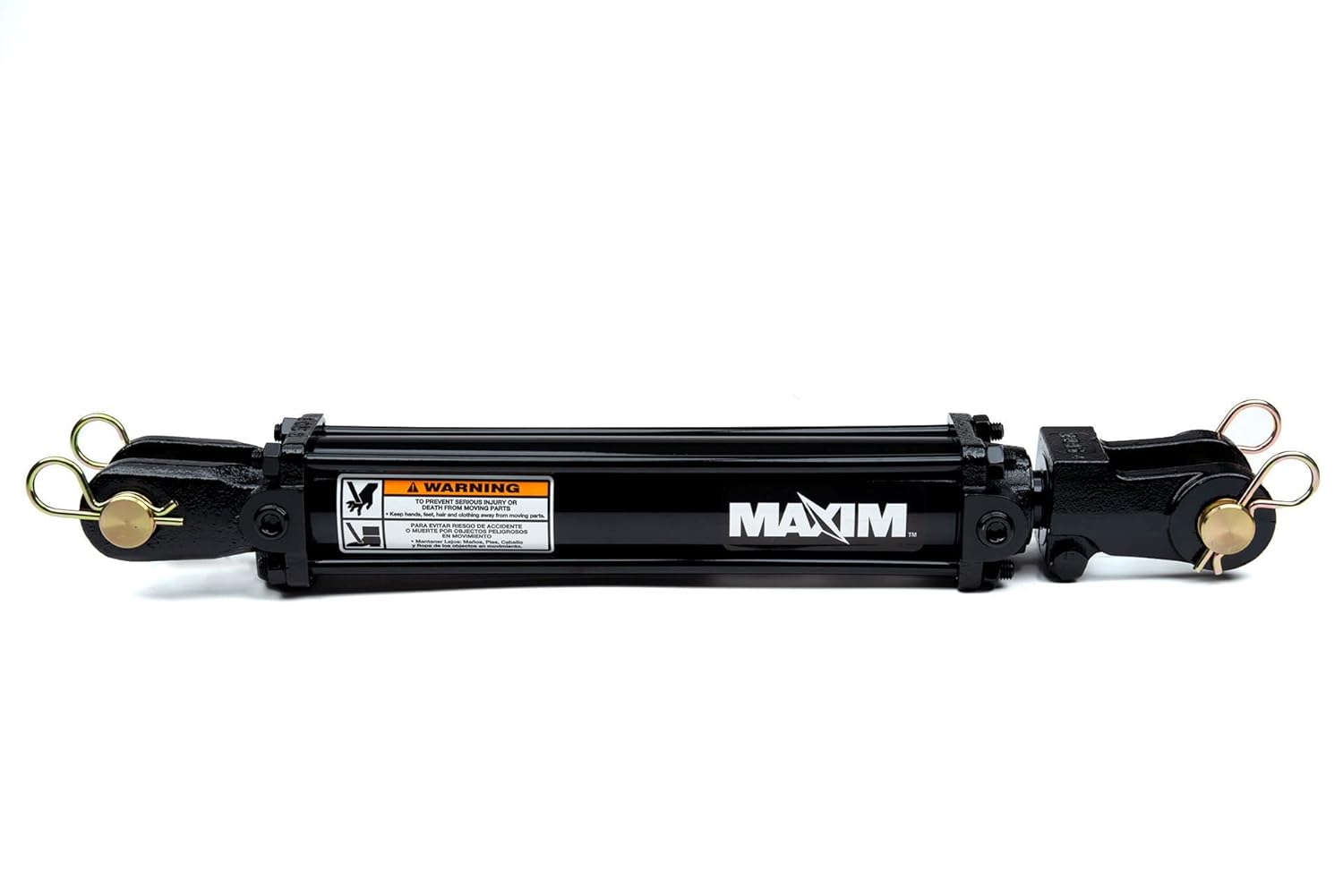

Maxim TC Double Acting Hydraulic Tie Rod Cylinder - 3 Bore, 24 Stroke

In this review of the Maxim TC double acting hydraulic tie rod cylinder, the bottom line is simple: it is built for operators who need a rugged, interchangeable cylinder for agricultural or heavy industrial tasks. The reviewer found the unit's standout attribute to be its combination of a 3 in bore with a 24 in stroke and 2500 PSI working pressure, which together deliver dependable force and travel in a compact package. For anyone replacing NFPA-standard cylinders or installing a versatile lift or push application, this cylinder's durability and straightforward design make it an appealing choice.

Key Features

• 3 in Bore and 24 in Stroke: Provides a strong push and ample travel for common agricultural lifts and implements without excessive retraction length.
• 2500 PSI Maximum Pressure: Delivers robust working force for heavy tasks while matching industry pressure expectations for tie-rod cylinders.
• Column Load Capacity 8050 lbs: Gives confidence when the application must resist buckling or support compressive loads.
• 1/2 NPT Ports and 1.25 in Rod: Uses common hydraulic porting and a durable rod size that simplifies hookup and maintenance.
• NFPA Interchangeable Design: Manufactured to NFPA standards so it can replace many existing cylinders without special adapters.
• Durable Construction: Ductile iron body with hard-polished chrome plating and Buna N seals improves wear life in abrasive or outdoor environments.

Who It's For

This cylinder suits farm equipment owners, small contractors, and maintenance shops that need a reliable double acting tie-rod cylinder for lifting, pushing, or positioning duties. Its NFPA interchangeability and standard 1/2 NPT porting make it a good match for systems where downtime must be minimized.

Those who need ultra-compact cylinders, extremely high-pressure specialty units, or custom stainless solutions for corrosive marine environments should consider other options. This model is optimized for rugged general-purpose agricultural and industrial use rather than niche corrosive or miniature applications.

Pros & Cons

Pros

• Well-sized 3 in bore and 24 in stroke offers practical travel and force for many implements.
• Built to NFPA standards for interchangeability and easier replacement.
• Rugged materials and chrome plating with Buna N seals for longer service life.

Cons

• Not intended for specialty high-corrosion environments since it is standard ductile iron construction.

Specifications

Our Verdict

The Maxim TC 3 in bore, 24 in stroke tie-rod cylinder is a practical, value-minded choice for agricultural and general industrial users who need an NFPA-compatible, heavy-duty double acting cylinder. Its 2500 PSI rating and 8050 lb column load capacity make it a reliable replacement or upgrade for common hydraulic tasks, offering long service life and straightforward installation for shops that prioritize interchangeability and durability.

Frequently Asked Questions

Is this cylinder interchangeable with NFPA mounts?
Yes, the cylinder is manufactured per NFPA standards and is intended to be interchangeable with common NFPA-configured cylinders.

What are the port sizes and rod diameter?
The unit uses 1/2 NPT ports and has a 1.25 in rod diameter.

Can this cylinder handle heavy compressive loads?
It has a column load capacity of 8050 lbs, which is suitable for many compressive and buckling-prone applications within its intended use.
