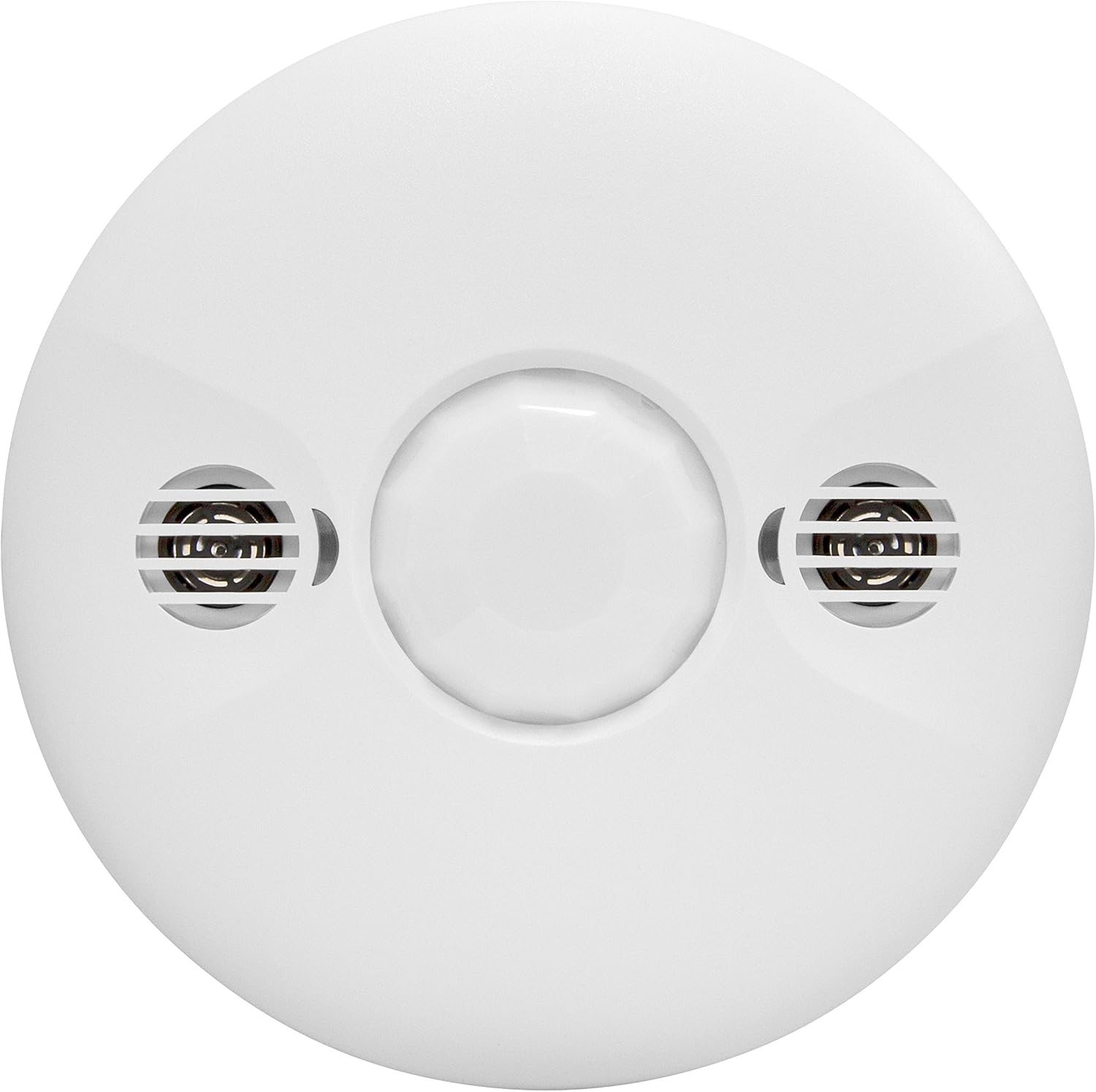

MDC-50L Stickered Ultrasonic and PIR Dual Technology Occupancy Sensor

In this review of the MDC-50L stickered occupancy sensor, the bottom line is clear: this commercial-grade ceiling sensor is aimed at building managers and contractors who need a sensitive, low-voltage motion control that reliably detects both large and fine movement. The MDC-50L combines passive infrared and ultrasonic sensing to reduce false offs and keep lights on for real occupancy, and its low-voltage design makes it an energy-conscious choice for retrofit or new low-voltage lighting systems. The reviewer found it most compelling for multi-use spaces where fine motion detection matters.

Key Features

• Dual sensing: Combines passive infrared and ultrasonic detection so the unit senses both body heat and fine motions like typing or page turning for more accurate occupancy detection.
• Large coverage: Provides wide area protection with up to 1,600 ft2 PIR coverage and up to 1,000 ft2 ultrasonic coverage suitable for open ceilings and large rooms.
• Energy efficient: Low-voltage operation reduces power draw and pairs with the required ENERLITES MPP-24 power pack for a money-saving control solution.
• Flexible trigger modes: Six trigger modes let installers tune how PIR and ultrasonic sensors interact, improving performance in varied room types and use patterns.
• Adjustable time delays: Dip-switch selectable delays from 5 seconds to 30 minutes allow precise control of how long lights stay on after motion ends.

Who It's For

The MDC-50L is best for commercial installers, facility managers, and electricians specifying occupancy sensing for offices, conference rooms, classrooms, and similar spaces where both gross and fine movement should be detected. Its multi-mode sensing is particularly useful where people remain relatively still but still need lighting to remain on, such as at desks or in libraries.

It is less appropriate for simple residential single-room swaps where a basic PIR-only sensor would suffice, or for applications that cannot use the required low-voltage power pack. Also, customers expecting plug-and-play with any junction box should confirm mechanical fit before purchase.

Pros & Cons

Pros

• Reliable dual-technology detection reduces missed presence events by picking up fine motion as well as heat signatures.
• Wide coverage areas make it practical for larger rooms and open-plan spaces.
• Multiple trigger modes and adjustable time delays provide installer-level flexibility to optimize performance.
• UL/CUL listing and California Title 20 and 24 compliance support code-conscious commercial projects.

Cons

• Requires the ENERLITES MPP-24 power pack, so additional purchase and low-voltage wiring are necessary.
• Some users report mixed results with range and fit in certain ceiling junction boxes, so mechanical compatibility should be checked.

Specifications

Model	MDC-50L
Sensing technology	Dual PIR and ultrasonic
Coverage	Up to 1,600 ft2 PIR; up to 1,000 ft2 ultrasonic
Time delay	Selectable 5 sec to 30 min via dip switch
Power	Low-voltage (requires ENERLITES MPP-24 power pack)
Compliance	UL/CUL listed; California Title 20 and 24 compliant
Operating temp	32 to 131 F

Our Verdict

The MDC-50L is a solid choice for commercial installations that need dependable, sensitive occupancy detection and flexible tuning options. Its dual PIR and ultrasonic sensing and wide coverage make it good value for spaces where fine motion should keep lights on, provided the installer can accommodate the required low-voltage power pack and confirm physical fit.

Frequently Asked Questions

Does this sensor need a separate power supply?
Yes. The MDC-50L requires the ENERLITES MPP-24 low-voltage power pack to operate.

Can it detect small motions like typing?
Yes. The ultrasonic sensor is sensitive to fine movements such as typing and flipped pages, which helps prevent premature shutoff.

Is it suitable for large open rooms?
Yes. The sensor offers up to 1,600 ft2 PIR coverage and up to 1,000 ft2 ultrasonic coverage, making it suitable for many open spaces.
