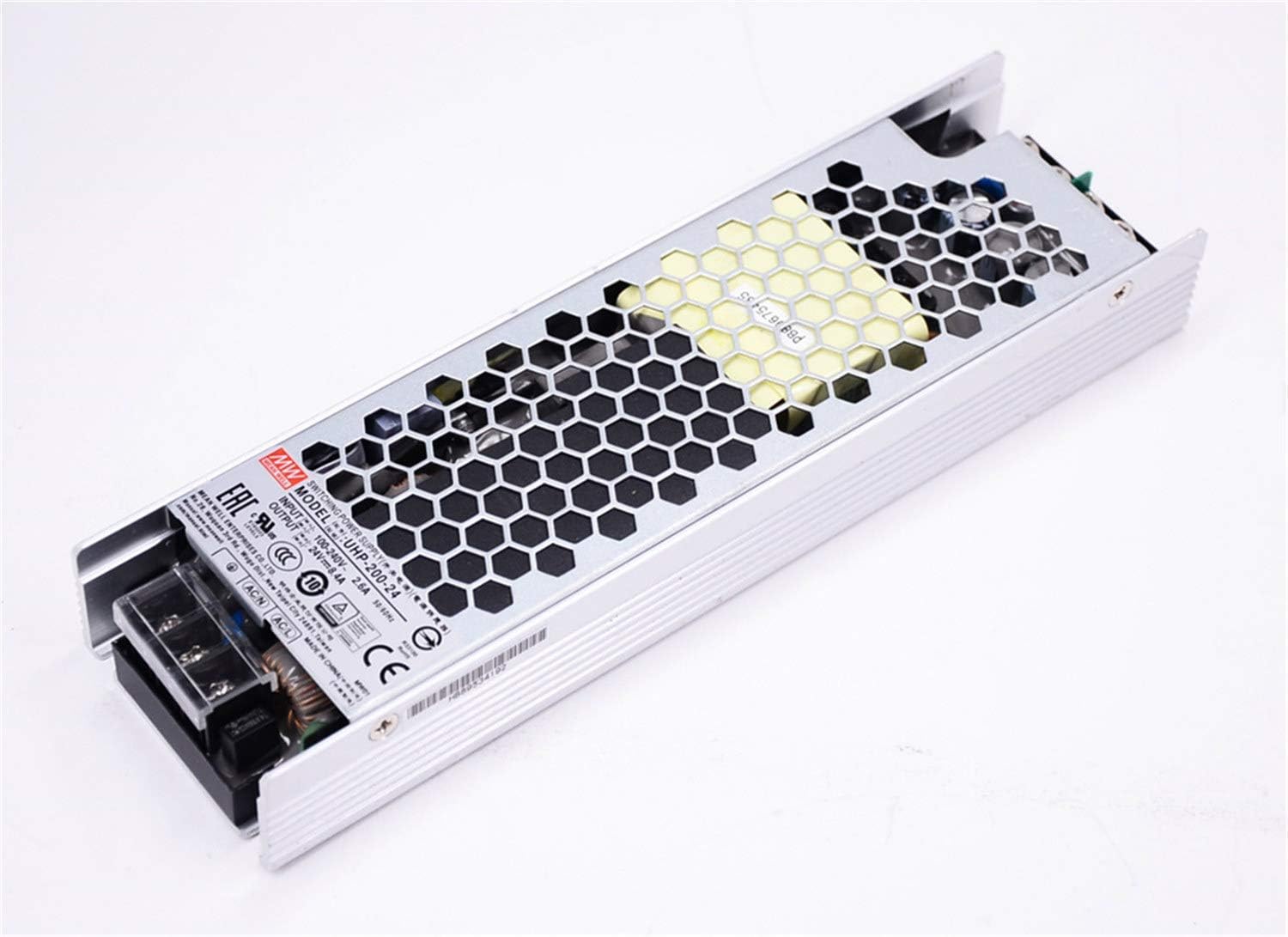

Mean Well UHP-200-24 24V 8A LED Power Supply - Slim 202W

In this review the Mean Well UHP-200-24 is evaluated as a utility-focused LED power supply suited for industrial and demanding control environments. The bottom line: this slim, fanless 24V 8A unit is for installers and engineers who need a reliable, low-profile power source with high transient tolerance and active PFC; its single biggest selling point is the combination of a 26mm low profile and 200W convection cooling that fits tight enclosures without sacrificing surge and protection features. The review highlights real-world behavior rather than marketing claims.

Key Features

• Slim and Low profile: The 26mm thin housing lets the supply be installed in cramped control panels and behind displays where depth is limited.
• Fanless convection cooling: The 200W rating is achievable without a fan, reducing maintenance and making it quieter in operational environments.
• Built-in active PFC: Active power factor correction improves power quality and reduces harmonic distortion for industrial systems.
• High transient and peak capability: It withstands 300VAC surge for 5 seconds and delivers 150% peak load for short bursts, which helps motors and LED loads with inrush current.
• Wide operating temperature: With a -30 to +70C range it remains functional in hot cabinets and cold machine rooms used in industrial automation.
• Comprehensive protections: Short circuit, overload, over voltage and over temperature protection guard connected equipment and improve uptime.

Who It's For

The Mean Well UHP-200-24 is aimed at electricians, controls engineers and system integrators who need a compact, robust 24V 8A source for LED displays, industrial automation machinery and mechanical and electrical equipment. Its slim profile and convection cooling are particularly useful when mounting space is limited or when quiet operation matters.

It is not the best choice for users who require built-in batteries, an integrated UPS function, or a very small low-power wall-mounted adapter. If redundant battery-backed power or mains failover is needed, look to dedicated UPS or power conditioning systems instead.

Pros & Cons

Pros

• Very slim 26mm form factor allows installation in tight spaces and behind panels.
• Fanless 200W convection design reduces noise and maintenance in industrial settings.
• Built-in active PFC and 300VAC surge tolerance provide cleaner input performance and resilience to mains disturbances.
• Robust protection set and wide -30 to +70C operating range suit harsh environments.

Cons

• No integrated battery or UPS functionality, so additional equipment is required for backup power.
• DC OK active signal and redundancy are optional extras rather than standard, which may require additional configuration on some installs.

Specifications

Model	UHP-200-24
Output	24V 8A (202W)
Profile Height	26mm slim type
Cooling	Fanless convection, 200W
Input Surge	Withstand 300VAC for 5 seconds
Protections	Short circuit / Overload / Over voltage / Over temperature
Operating Temp	-30 to +70C

Our Verdict

The Mean Well UHP-200-24 is a practical choice for professionals who need a slim, durable 24V power source with strong surge tolerance and built-in active PFC. It delivers good value where space, quiet operation and rugged protections matter, but it is not a substitute for a battery-backed UPS system when continuous backup is required.

Frequently Asked Questions

Does this unit need a fan?
The design is fanless and rated for 200W convection cooling, so no external fan is required under normal installation conditions.

Can it handle input voltage spikes?
Yes, the unit can withstand a 300VAC surge for 5 seconds and includes protections against overload and over voltage to protect connected equipment.

Is redundancy included?
Redundant function and a DC OK active signal are available as options, but they are not standard features on every unit.
