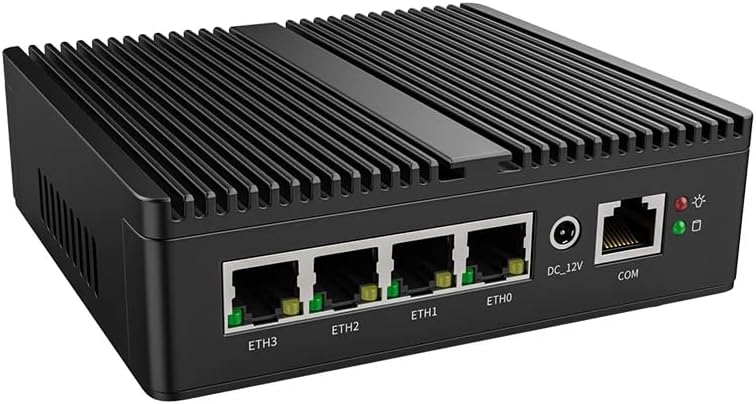

Micro Firewall Appliance Mini PC - Fanless 4x2.5G LAN Router

Our review of the Micro Firewall Appliance finds it best suited for home labs, small offices, and network enthusiasts who need a compact, quiet router platform with strong WAN performance. The single biggest reason to buy is the four Intel i226-V 2.5Gbe ports combined with an AES-NI capable Pentium Silver N6000, which together provide real-world VPN and firewall throughput in a fanless, maintenance-free package. The review examines thermal behavior, expansion options, and how the system performs as a dedicated router or lightweight server.

Key Features

• Quad Intel 2.5G LAN: Four Intel i226-V ports provide multi-gigabit LAN connectivity for routing, monitoring, or bridging without additional NIC add-ons.
• Fanless Pentium Silver N6000: The N6000 quad core with UHD graphics offers low-power, sustained performance for firewall tasks while remaining silent due to the fanless design.
• Storage flexibility: Support for 1x M.2 NVMe and 1x 2.5in SATA drive lets users separate OS and logs or expand capacity up to standard 2TB HDD/SSD sizes for caching and storage.
• Hardware security acceleration: AES-NI support speeds up VPN and encrypted throughput, improving IPSec/OpenVPN performance on small business networks.
• Dual 4K display outputs: HDMI and DisplayPort enable local console access with dual 4K screens for configuration, monitoring, or light graphical tasks.
• Robust headless features: PXE boot, Wake-on-LAN, RTC and watchdog support make it suitable for remote or unattended deployments.

Who It's For

The Micro Firewall Appliance is aimed at network administrators, home lab builders, and small office users who want a compact, low-noise router or dedicated VPN gateway. Its AES-NI enabled CPU and four 2.5G ports make it well suited for encrypted throughput and VLAN-separated networks without occupying a full-sized rack unit.

Those who need very high CPU-bound packet processing, multiple fast NVMe storage bays, or built-in wireless should consider larger appliances or dedicated server hardware, since this unit is a compact, fanless barebone designed around low power and silent operation rather than heavy compute density.

Pros & Cons

Pros

• Quiet, fanless operation with improved cooling fins for reliable 24/7 uptime.
• Four Intel i226-V 2.5G ports provide flexible multi-WAN or LAN segmentation out of the box.
• Expandable storage and memory options let users tailor performance for routing, logging, or light virtualization.
• AES-NI support accelerates VPN and encrypted traffic handling for better real-world throughput.

Cons

• Only one M.2 NVMe slot and one 2.5in bay limit high-density storage expansion compared with larger systems.
• No internal wireless; external modules use USB protocol via optional slots, so WiFi requires an add-on.

Specifications

Processor	Pentium Silver N6000 quad core (up to 3.1GHz)
Network	4 x Intel i226-V 2.5Gbe LAN ports
Memory	2 x SO-DIMM DDR4 compatible with 2400/2666/2933/3200MHz
Storage	1 x M.2 NVMe (2280) + 1 x 2.5in SATA3.0 (7mm)
Video	1 x HDMI and 1 x DisplayPort, dual 4K support
Expansion	1 x SIM slot, 1 x mPCIe wireless slot (USB protocol, choose 1)
Features	AES-NI, PXE boot, Wake-on-LAN, RTC, Watchdog, VESA mountable

Our Verdict

The Micro Firewall Appliance is a strong value for users who want a silent, compact router with multi-gigabit LAN ports and hardware encryption acceleration. It delivers balanced thermal design, useful expansion for OS and storage, and enough CPU capability for VPN and firewall duties in a home or small office. Buy it if you need reliable, low-noise networking with AES-NI support; look elsewhere if you require heavy compute or onboard wireless.

Frequently Asked Questions

Can this run pfSense or other firewall OS?
Yes, the hardware supports common firewall distributions that work with AES-NI and multi-NIC configurations; check OS compatibility lists for the i226-V chip.

How much storage can I install?
You can use one M.2 NVMe and one 2.5in SATA drive; the 2.5in bay accepts standard 7mm SSD/HDD sizes and typical setups go up to 2TB or higher depending on drive choice.

Is it suitable for 24/7 server use?
Yes. The fanless design, improved fins, and low TDP are intended for continuous 7x24 operation with lower temperatures and maintenance needs.
