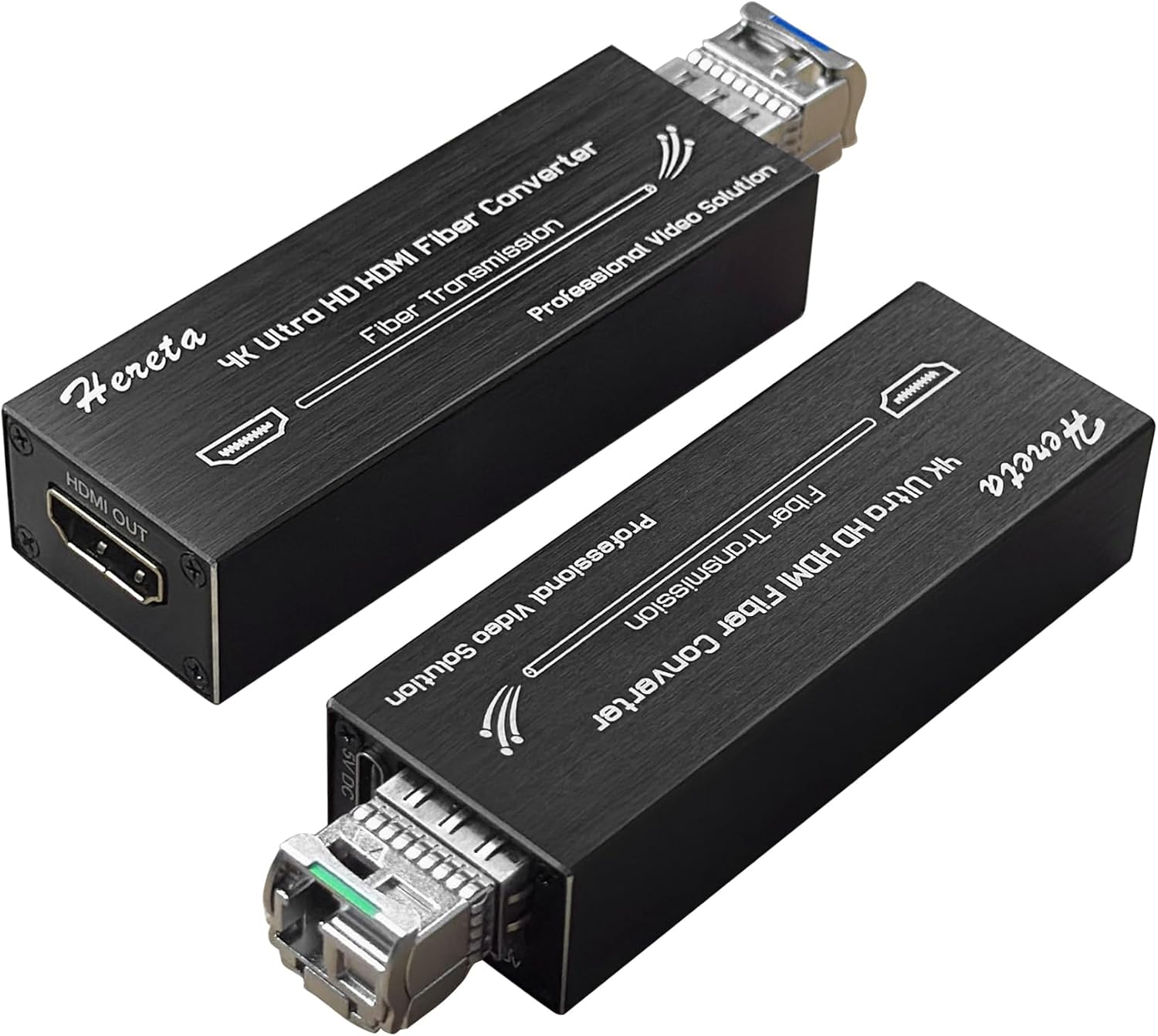

Mini 4K HDMI to LC Fiber Extender 10.3Gbps - Compact 4K Video

In this review of the Mini 4K HDMI to LC Fiber Extender, the bottom line is simple: this compact pair of optical transceivers is for anyone who needs uncompromised 4K signal over long distances without latency. The reviewer found it most useful for conference rooms, digital signage and home theater runs where a reliable, interference-resistant link is required. Setup is plug-and-play using the HDMI ports, SFP optical module and USB-C power, and the converter preserves 4Kx2K@30Hz resolution with no visible loss or delay in ordinary usage.

Key Features

• Uncompressed transmission: Sends HDMI 1.4a video over single-mode fiber without compression so image detail and color fidelity are preserved.
• High resolution support: Handles up to 4Kx2K@30Hz with YUV 444 and 422 color formats for accurate, high-resolution displays.
• Long distance capability: Comes with an SFP module rated to 20km and supports replacement modules for reaches up to 80km when needed.
• Reliable connectivity: Includes DDC, CEC and HPD signal support so EDID and CEC functions work across the link.
• Compact, industrial design: Miniature transceivers are hot-pluggable, EMI/RFI resistant and designed for continuous operation in typical AV environments.
• Simple power and ports: Uses standard HDMI IN/OUT, an SFP LC slot and USB-C 5V power input for straightforward installation.

Who It's For

This extender pair is aimed at AV integrators, IT managers and home AV enthusiasts who need a low-latency, lossless optical solution for sending HDMI over long runs. It suits conference centers, retail signage networks and installations where electromagnetic interference or long distances make copper HDMI impractical.

Those who need higher frame rates than 30Hz at 4K, advanced HDMI 2.0/2.1 features, or consumer plug-and-play simplicity without SFP modules should consider other products; this unit targets stable, long-reach, uncompressed HDMI 1.4a transmission rather than the latest gaming-focused HDMI features.

Pros & Cons

Pros

• Preserves full uncompressed HDMI 1.4a signals up to 10.3Gbps for faithful image reproduction.
• Supports true 4Kx2K@30Hz with YUV 444 and 422, keeping color accuracy intact for displays.
• Modular SFP design allows using optical modules rated up to 80km for very long links.
• Compact, durable hardware with hot-pluggable connectors and USB-C power for easy installs.

Cons

• Limited to HDMI 1.4a performance and 4K@30Hz, so it does not support higher frame rates or newer HDMI 2.x features.
• Requires the correct single-mode fiber and SFP modules for longer distances, adding additional cost and planning.

Specifications

Model Type	Mini 4K HDMI Fiber Extender (Transmitter & Receiver pair)
HDMI Standard	HDMI 1.4a, HDCP 1.2
Maximum Resolution	4Kx2K@30Hz (YUV 444 / 422)
Data Rate	Up to 10.3Gbps
Optical Interface	SFP slot with LC port (module included, 20km)
Power Input	USB-C, 5V DC (pair includes power adapters)
Operating Temperature	-10 to 50 C

Our Verdict

The Mini 4K HDMI to LC Fiber Extender is a practical, value-minded choice for professionals who need stable, lossless 4K transmission across long distances. It sacrifices the newest HDMI 2.x features in favor of reliable, uncompressed signal integrity and modular optical reach, making it a solid pick for conferencing, signage and AV installations where image fidelity and latency matter more than the latest ports.

Frequently Asked Questions

Can this extender run over very long distances?
The included SFP module supports up to 20km; you can replace the module with higher-range SFPs to reach up to 80km over single-mode fiber.

Does it support HDR or higher frame rates?
It follows HDMI 1.4a and supports 4K@30Hz and YUV 444/422; HDR and higher frame rates associated with HDMI 2.x are not supported.

How is the device powered?
Each unit uses a USB-C 5V power input and the package includes a pair of power adapters for the transmitter and receiver.
